Backyard Discovery FUSION FIRE - Page 47

47

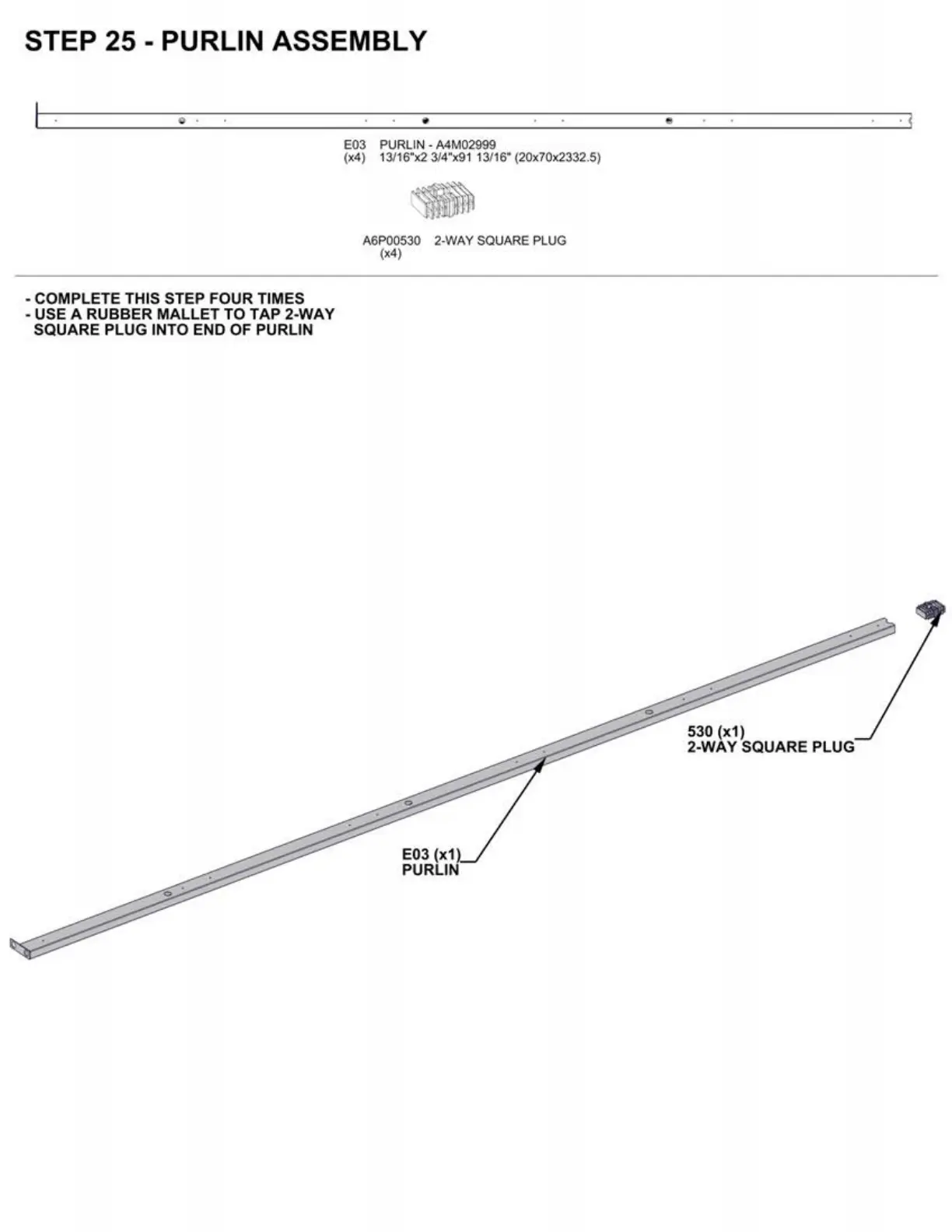

STEP 25 - PURLIN ASSEMBLY
- COMPLETE THIS STEP FOUR TIMES
- USE A RUBBER MALLET TO TAP 2-WAY
SQUARE PLUG INTO END OF PURLIN
E03 PURLIN - A4M02999
(x4) 13/16"x2 3/4"x91 13/16" (20x70x2332.
5)
A6P00530 2-WAY SQUARE PLUG
(x4)
530 (x1)
2-WAY SQUARE PLUG
