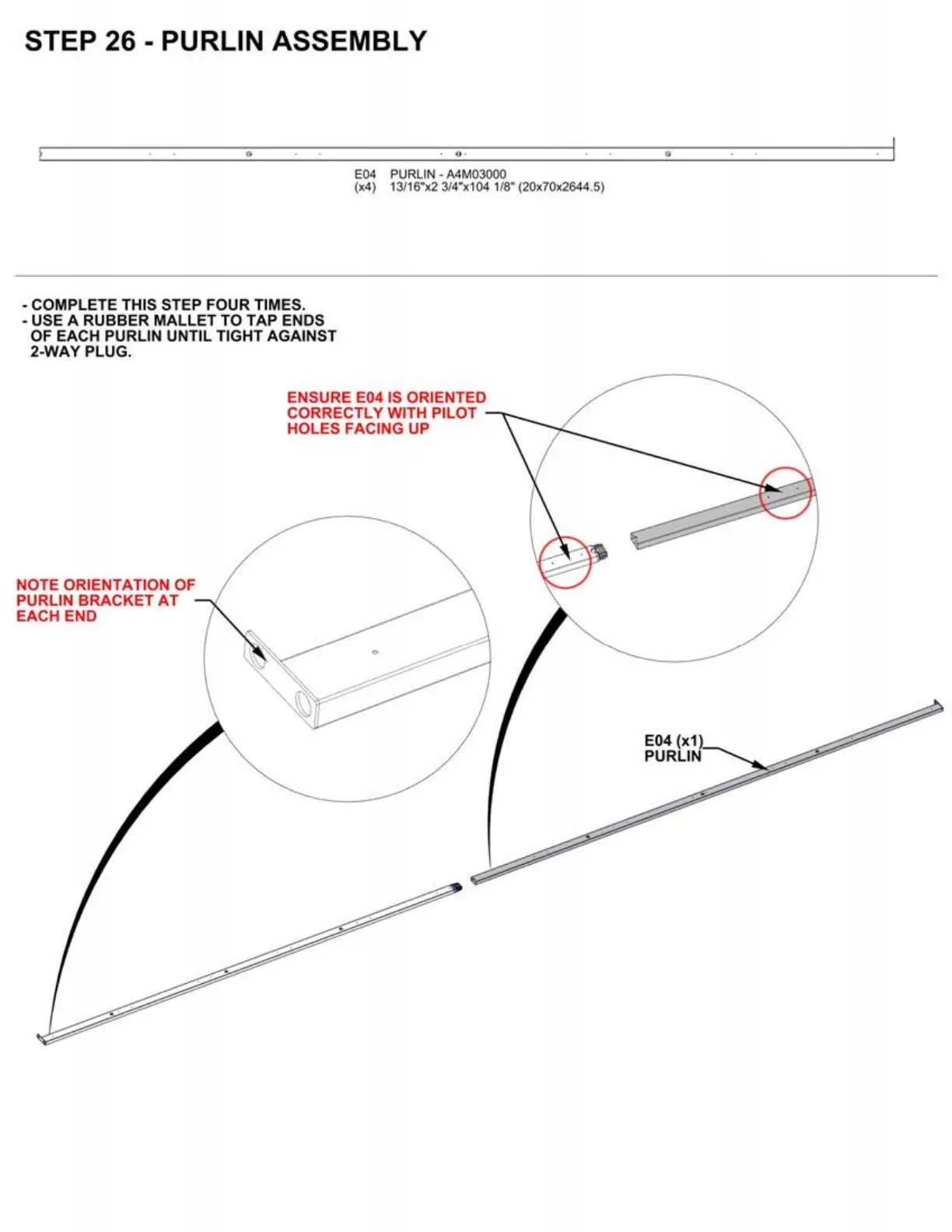

STEP 26 - PURLIN ASSEMBLY
- COMPLETE THIS STEP FOUR TIMES.
- USE A RUBBER MALLET TO TAP ENDS
OF EACH PURLIN UNTIL TIGHT AGAINST
2-WAY PLUG.
E04 PURLIN - A4M03000
(x 4) 13/16"x2 3/4"x 10 4 1/8" (20x70x2644.5)
ENSURE E04 IS ORIENTED
CORRECTLY WITH PILOT
NOTE ORIENTATION OF
PURLIN BRACKET
AT
EACH END
HOLES FACING UP
