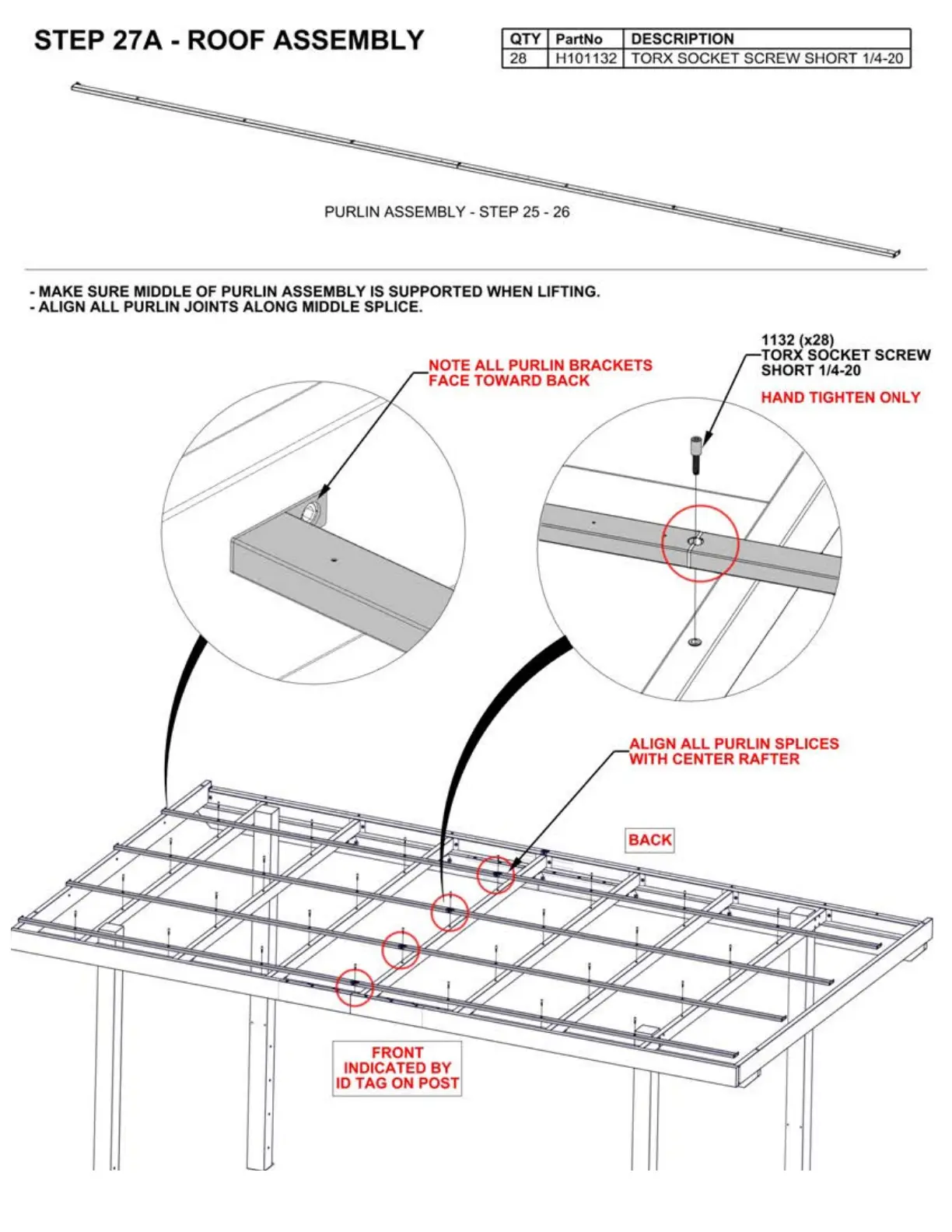

STEP 27 A - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
28 H101132 TOR X SOCKET SCRE W SHORT 1/4-20
PURLIN ASSEMBLY - STEP 25 - 26
- MAKE SURE MIDDLE OF PURLIN ASSEMBLY IS SUPPORTED WHEN LIFTING.
- ALIGN
ALL PURLIN JOINTS ALONG MIDDLE SPLICE.
1132 (x28)
NOTE
ALL PURLIN BRACKETS
FACE TOWARD
BACK
TORX SOCKET SCREW
SHORT 1/4-20
FRONT
INDICATED
BY
ID TAG ON POST
ALIGN
ALL PURLIN SPLICES
WITH CENTER RAFTER
