QTY PartNo DESCRIPTION

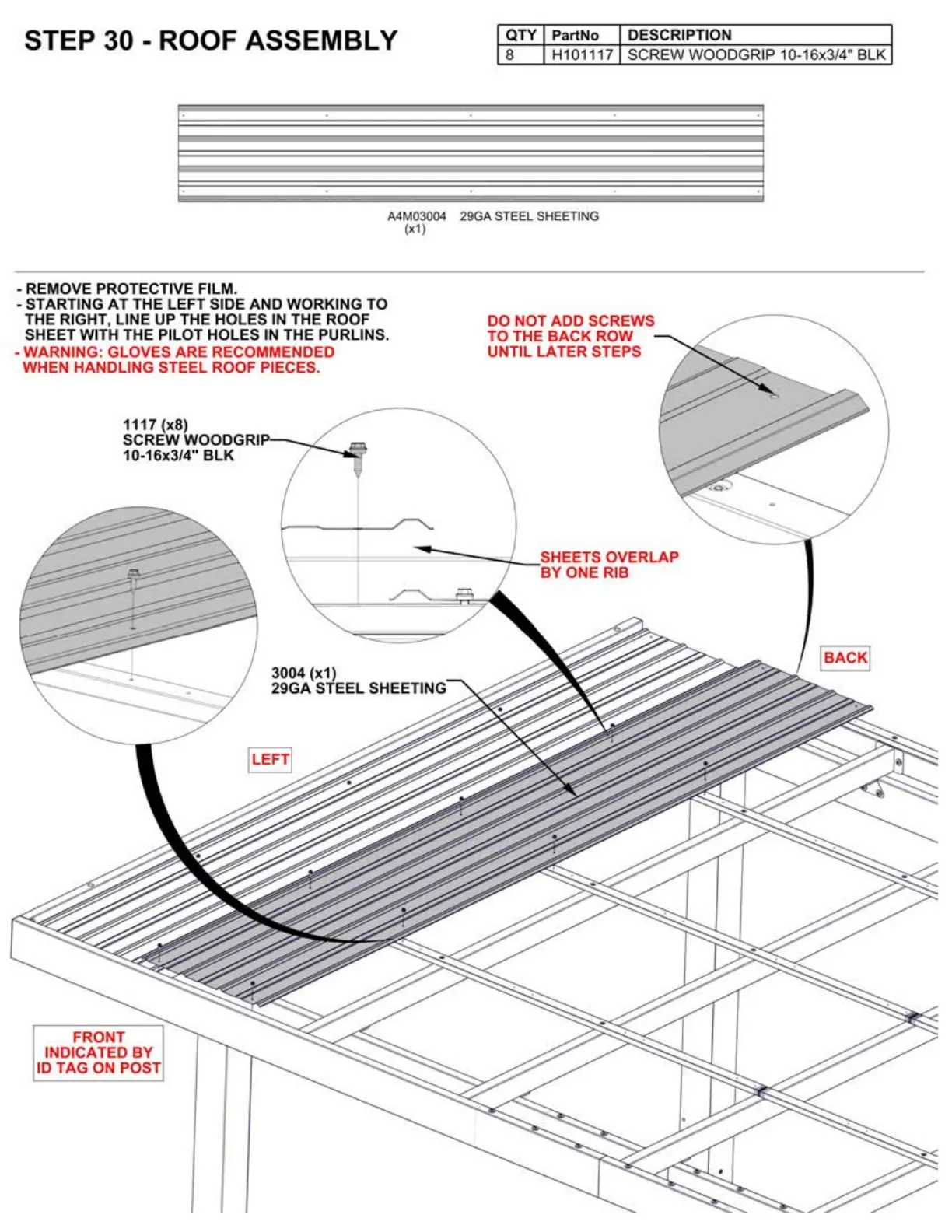

STEP30-ROOFASSEMBLY
8 H101117 SCREW WOODGRIP 10 -1 6x3/4" BLK
A4M03004 29GA STEEL S HE ETING
(x1)
- REMOVE PROTECTIVE FILM.
-STARTING AT THE LEFT SIDE AND WORKING TO
THE RIGHT, LINE UP THE HOLES IN THE ROOF
SHEET WITH THE PILOT HOLES IN THE PURLINS.
- WARNING: GLOVES ARE RECOMMENDED
WHEN HANDLING STEEL ROOF PIECES.
1117(x8)
SCREW WOODGRlr---._
10-16x3/4" BLK
FRONT
INDICATED
BY
ID TAG ON POST
3004 (x1)
29GA STEEL SHEETING
DO NOT ADD SCREWS
TO THE
BACK ROW
UNTIL
LATER STEPS
I
BACK I
