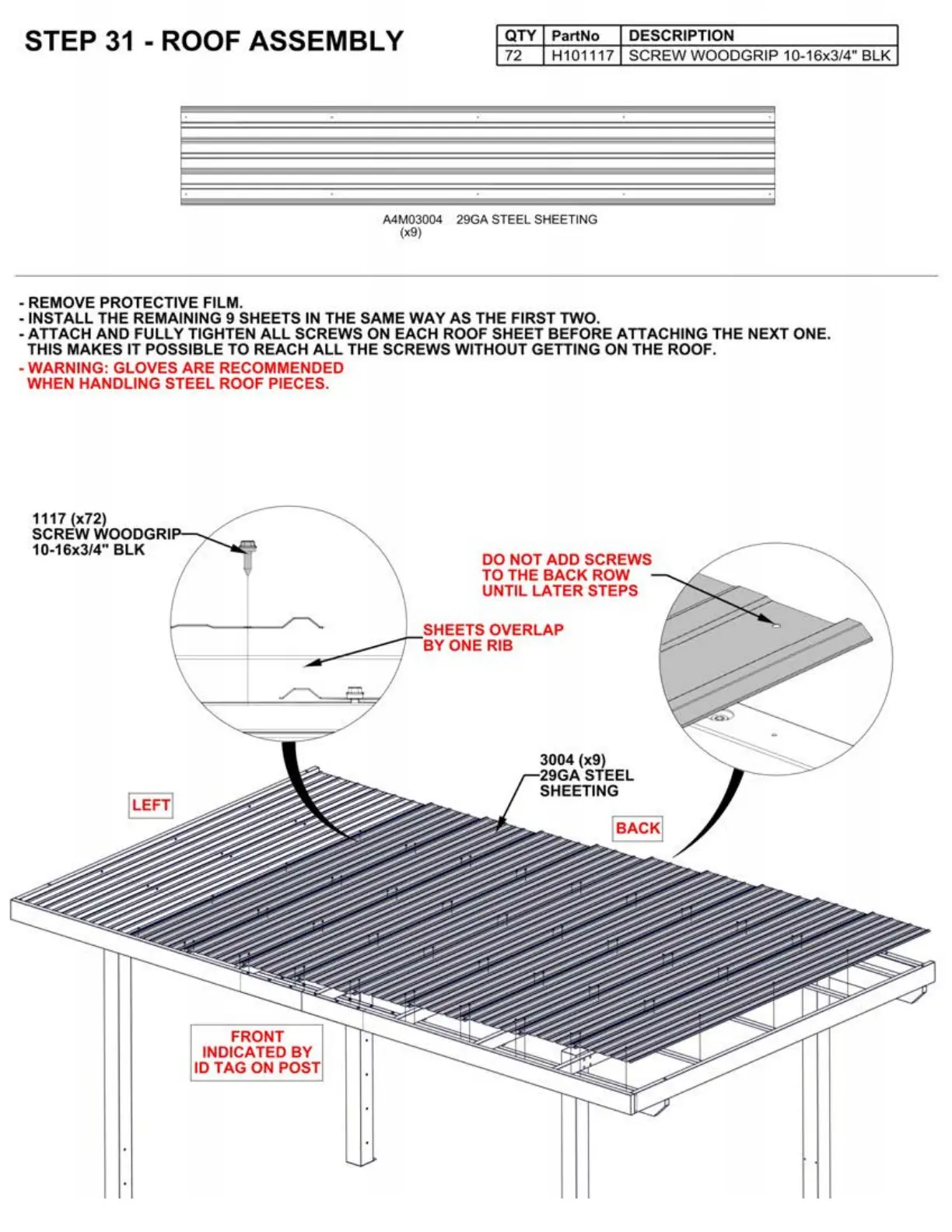

STEP31-ROOFASSEMBLY
QTY PartNo DESCRIPTION
72 H101117 SCREW WOODGRIP
10
-16x3/4" BLK
- REMOVE PROTECTIVE FILM.
A4M
03004 29GA STEEL SHEETING
(x9)
-INSTALL
THE REMAINING 9 SHEETS IN THE SAME WAY AS THE FIRST TWO.
- ATTACH AND FULLY TIGHTEN
ALL
SCREWS
ON
EACH ROOF SHEET BEFORE ATTACHING THE NEXT ONE.
THIS MAKES IT POSSIBLE TO REACH
ALL
THE SCREWS WITHOUT GETTING
ON
THE ROOF.
- WARNING: GLOVES ARE RECOMMENDED
WHEN HANDLING STEEL ROOF PIECES.
1117 (x72)
SCREW WOODGRI
10-16x3/4"
BLK
FRONT
INDICATED
BY
ID TAG ON POST
DO NOT ADD SCREWS
TO THE
BACK
ROW
UNTIL LATER STEPS
SHEETS OVERLAP
BYONE
RIB
