QTY PartNo DESCRIPTION

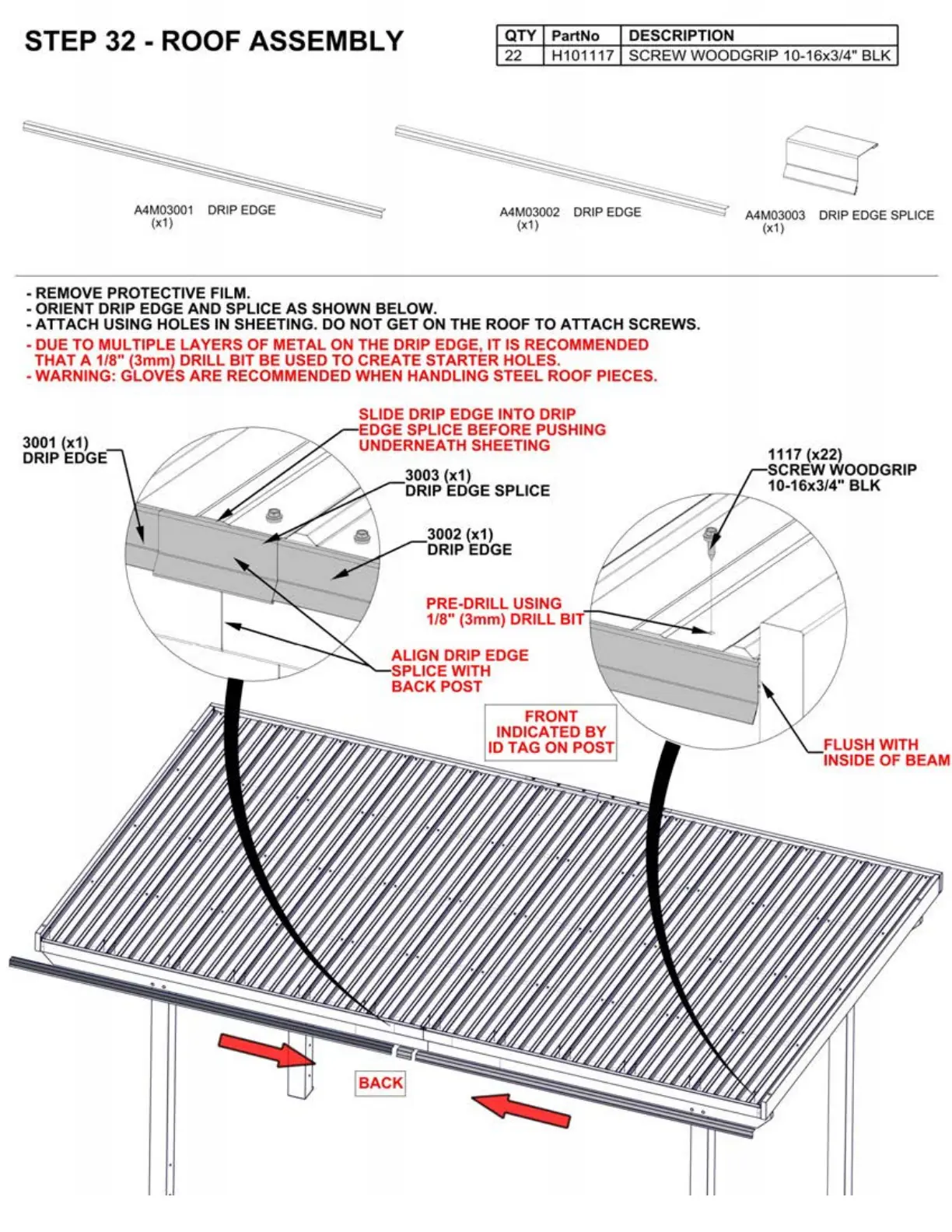

STEP32-ROOFASSEMBLY
22 H101117 SCREW WOODGRIP
10
-16x3/4" BLK
A4M03001 DRIP EDGE
(x1)
- REMOVE PROTECTIVE FILM.
A4M03002 DRIP EDGE
(x
1)
- ORIENT DRIP EDGE AND SPLICE AS SHOWN BELOW.
-ATTACH
USING HOLES
IN
SHEETING. DO NOT GET ON THE ROOF TO ATTACH SCREWS.
• DUE TO MULTIPLE LAYERS OF METAL ON THE DRIP EDGE,
IT
IS RECOMMENDED
THAT A 1/8" (3mm) DRILL BIT
BE
USED TO CREATE STARTER HOLES.
- WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING STEEL ROOF PIECES.
SLIDE DRIP EDGE INTO DRIP
EDGE SPLICE BEFORE PUSHING
UNDERNEATH SHEETING
3003 (x1)
DRIP EDGE SPLICE
ALIGN DRIP EDGE
SPLICE WITH
BACK
POST
FRONT
INDICATED
BY
ID TAG ON POST
A4M03003 DRIP EDGE SPLICE
(x1)
1117 (x22)
SCREW WOODGRIP
10-16x3/4"
BLK
FLUSH WITH
INSIDE OF BEAM
