Backyard Discovery FUSION FIRE - Page 60

60

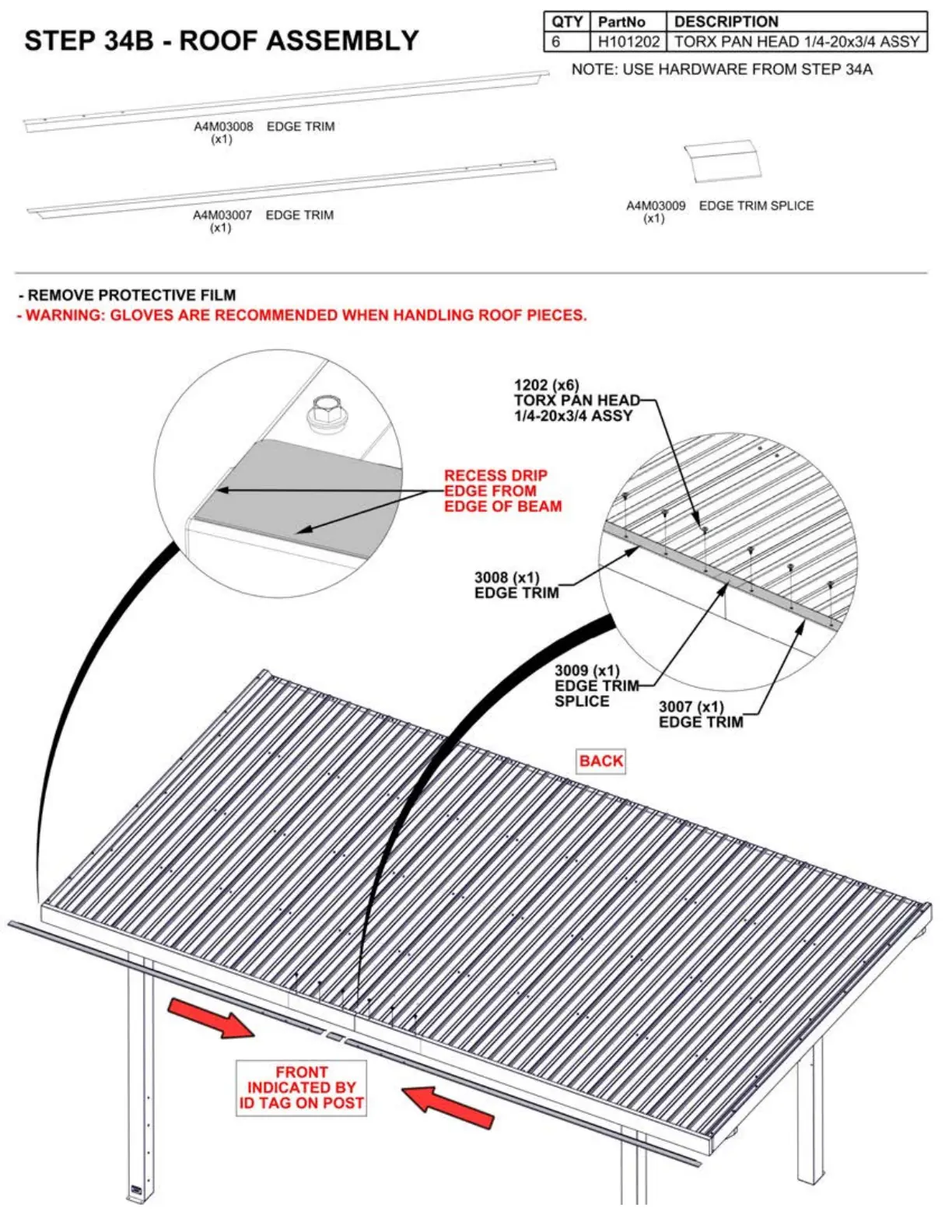

STEP 348 - ROOF ASSEMBLY
A4M03008 EDGE TRIM
(x1)
A4M03007 EDGE TRIM
(x1)
- REMOVE PROTECTIVE FILM
QTY PartNo DESCRIPTION
6 H101202 TORX PAN HEAD 1/4-20x3/4 ASS Y
NOTE: USE HARDWARE FROM ST
EP 3 4A
A4M03009 EDGE TRIM SPLICE
(x1)
- WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING ROOF PIECES.
1202 (x6)
TORX PAN HEA
1/4-20x3/4 ASSY
RECESS DRIP
#4 --------+-::::o--- EDGEFROM
FRONT
INDICATED BY
ID TAG ON POST
EDGE OF BEAM
3008 (x1)
EDGE TRIM
