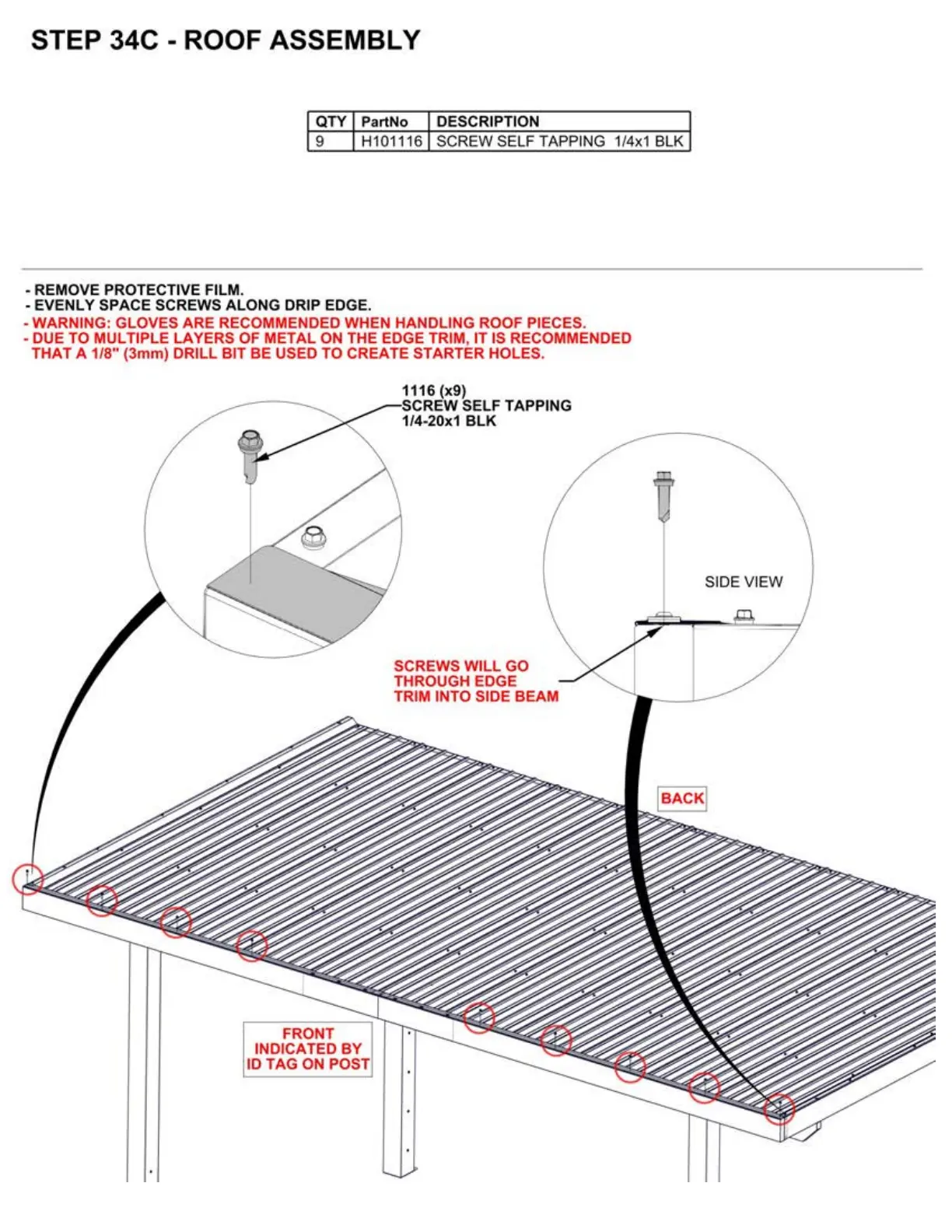

STEP 34C - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
9 H101116 SCREW SELF TAPPING 1/4x1 BLK
- REMOVE PROTECTIVE FILM.
- EVENLY SPACE SCREWS ALONG DRIP EDGE.
- WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING ROOF PIECES.
- DUE TO MULTIPLE LAYERS OF METAL
ON
THE EDGE TRIM, IT IS RECOMMENDED
THAT A 1/8" (3mm) DRILL
BIT
BE USED TO CREATE STARTER HOLES.
1116 (x9)
SCREW SELF TAPPING
1/4-20x1
BLK
~
FRONT
INDICATED
BY
ID TAG
ON
POST
SCREWS
WILL
GO
THROUGH EDGE
TRIM INTO SIDE BEAM
SIDE VIEW
