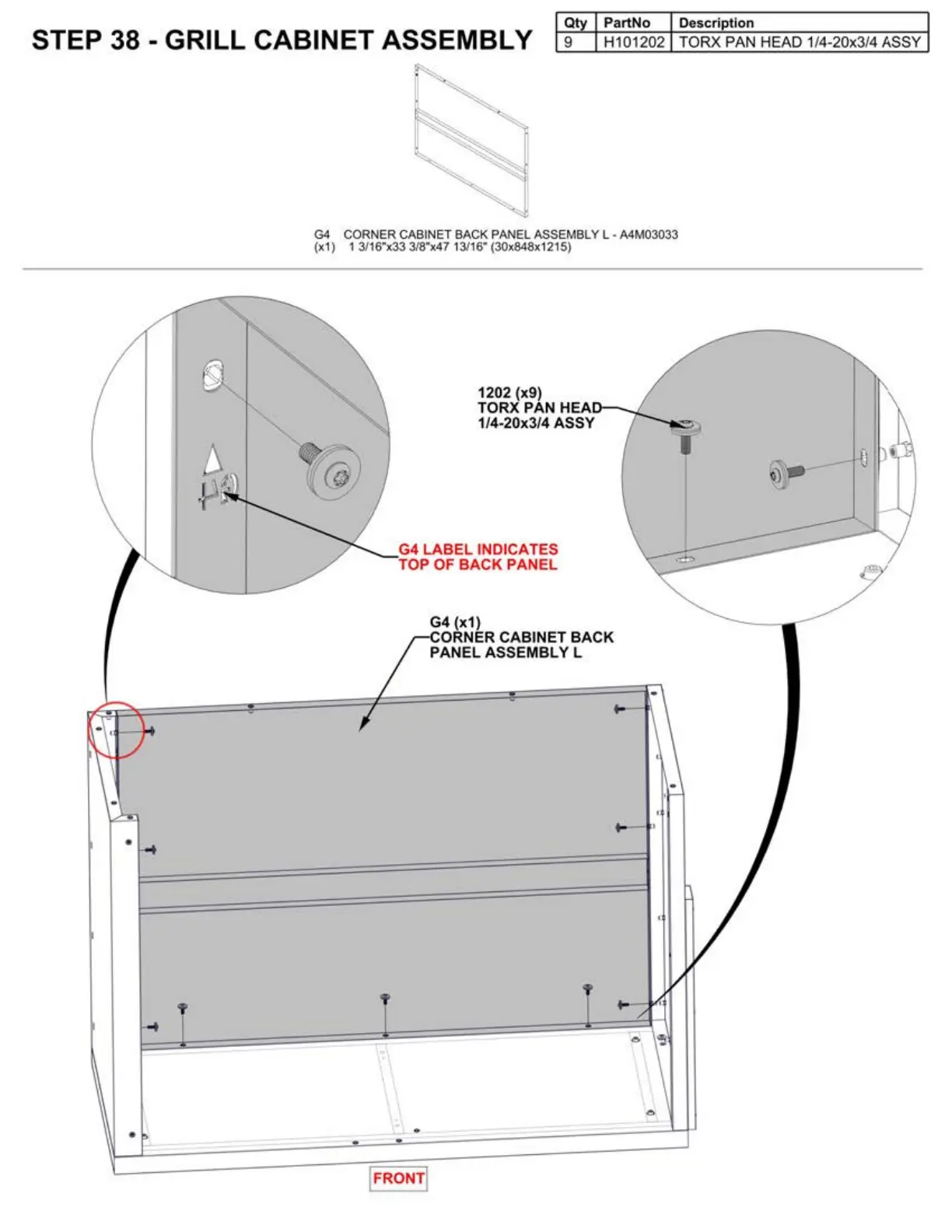

STEP 38 - GRILL CABINET ASSEMBLY
Qty PartNo Description
9 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
•
•
G4 CORNER CAB IN ET BACK PA NEL ASSE MB LY L - A4M03033
(x1) 13 / 16"x333 /8"x47 13 /16" (30x848x1 215)
1202 (x9)
TORX PAN HEA...----_,
1/4-20x3/4 ASSY
G4 LABEL INDICATES
TOP OF BACK PANEL
IFRONTI
G4 (x1)
CORNER CABINET BACK
PANEL ASSEMBLY L
