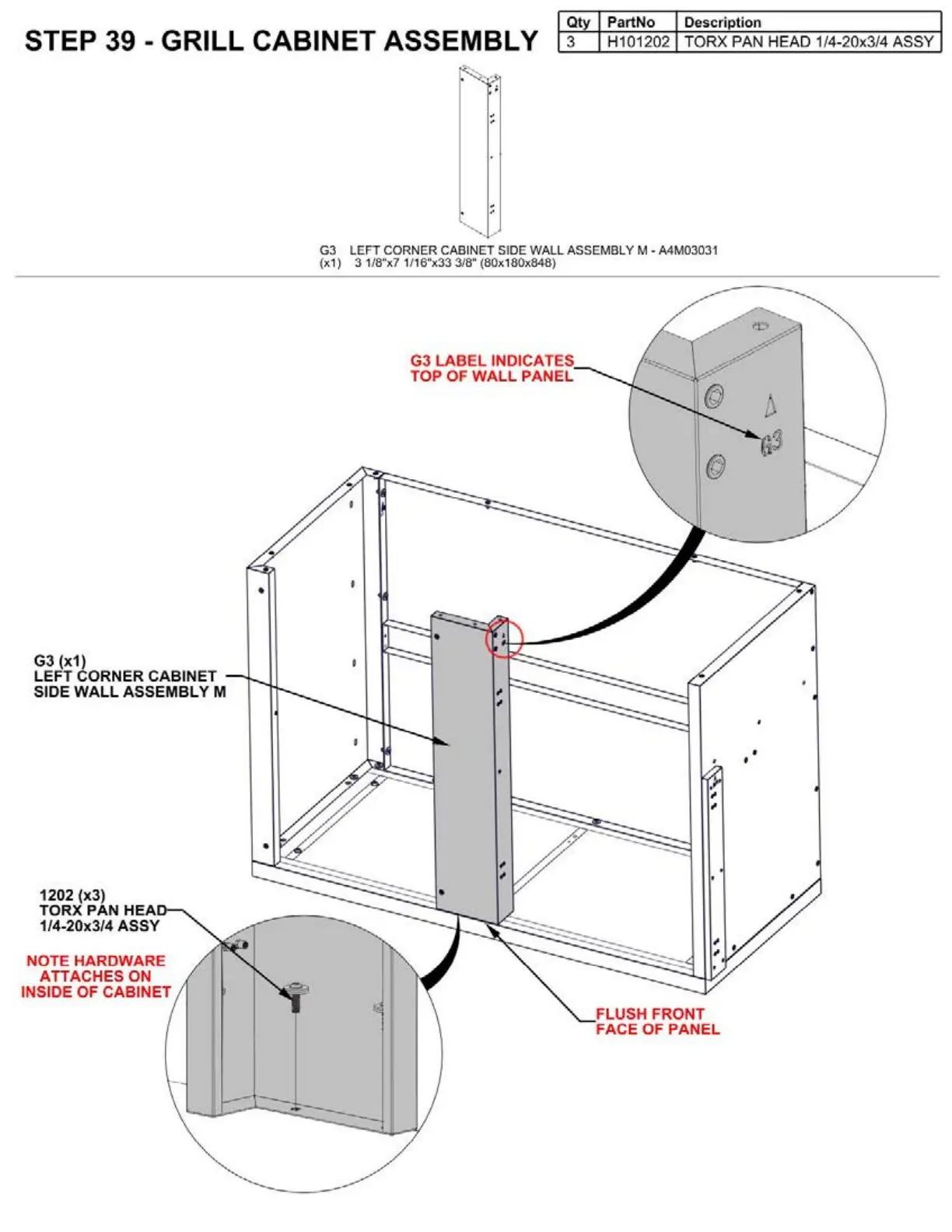

STEP 39 - GRILL CABINET ASSEMBLY
Qty PartNo Description
3 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
G3
(x1)
LEFT CORNER CABINET
SIDE WALL ASSEMBLY M
1202 (x3)
TORX PAN HEAD
1 /4-20x3/4
ASSY
NOTE HARDWARE
ATTACHES ON
INSIDE
OF CABINET
•
G3 LEFT CORNER CABINET SI DE WALL ASSEMBLY M - A4M03031
(x1) 31/8"x7 1/16"x33 3/8" (80x180x848)
G3 LABEL INDICATES
TOP OF WALL PANEL
FLUSH FRONT
FACE OF PANEL
'
'
