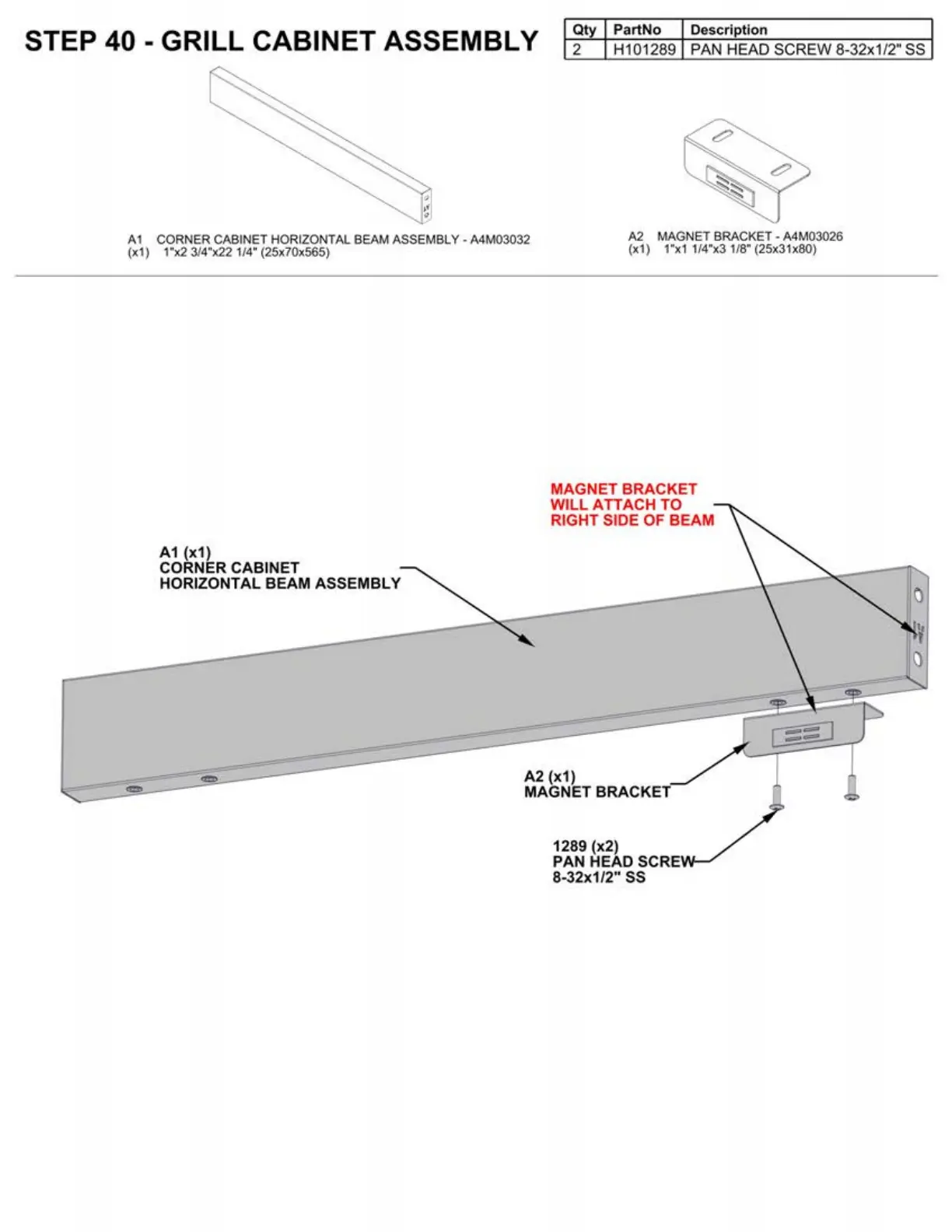

STEP 40 - GRILL CABINET ASSEMBLY
A 1 CORNER CA BI NET HORIZONTAL BEAM ASSEMBLY - A4M03032
(x1)
1" x2 3/4"x22 1/4" (25x70x565)
A1 (x1)
CORNER CABINET
HORIZONTAL BEAM ASSEMBLY
Qty PartNo Description
2 H101289 PAN HEAD SCREW 8-32x1/2" SS
A2 MAGNET BRACKET - A4M03026
(x1)
1" x1 1/4"x3 1/8" (25x31x80)
MAGNET BRACKET
WILL ATTACH TO
RI
GH T SIDE OF BEAM
A2 (x1)
MAGNET BRACKET
1289 (x2)
PAN HEAD SCRE
8-32x1/2"
