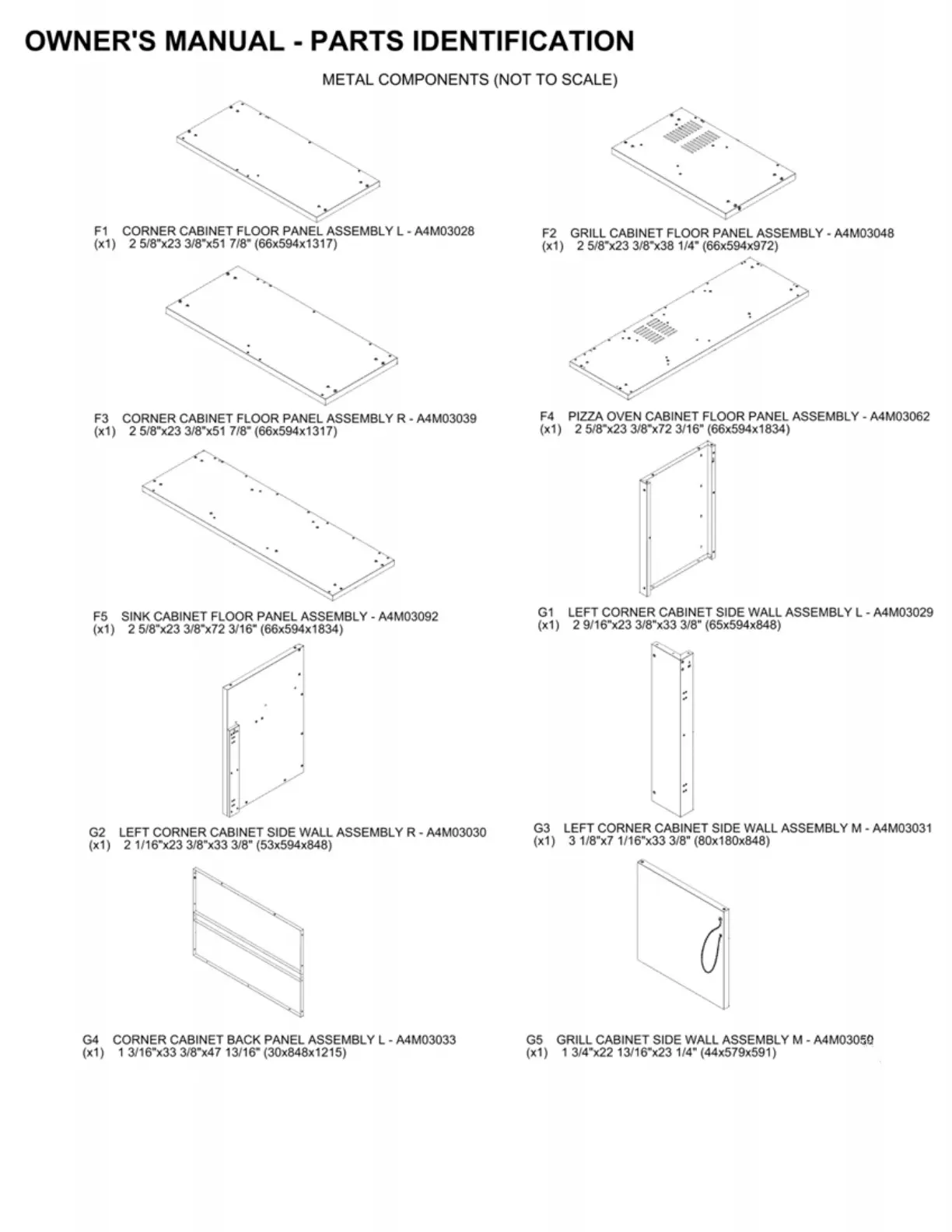

OWNER'S MANUAL - PARTS IDENTIFICATION
MET
AL
COMPONENTS (NOT TO SCALE)
F1
CORNER CABINET FLOOR PANEL ASSEMBLY L - A4M03028
(x1) 2 5/8"x23 3/8"x51 7/8" (66x594x1317)
F3
CORNER CABINET FLOOR PANEL ASSEMBLY R - A4M03039
(x1) 2 5/8"x23 3/8"x51 7/8" (66x594x1317)
F5 SINK CABINET FLOOR PANEL ASSEMBLY - A4M03092
(x1) 2 5/8"x23 3/8"x72 3/16" (66x594x1834)
G2 LEFT CORNER CABINET SIDE WALL ASSEMBLY R - A4M03030
(x1) 2 1/16"x23 3/8"x33 3/8" (53x594x848)
G4 CORNER CABINET BACK PANEL ASSEMBLY L - A4M03033
(x1)
13
/16"x333/8"x
4713
/16" (30x848x1215)
F2
GRILL CABINET FLOOR PANEL ASSEMBLY - A4M03048
(x1) 2 5/8"x23 3/8"x38 1/4" (66x594x972)
F4 PIZZA OVEN CABINET FLOOR PANEL ASSEMBLY - A4M03062
(x1) 2 5/8"x23 3/8"x72
3/
16" (66x594x1834)
G1
LEFT CORNER CABINET SIDE WALL ASSEMBLY L - A4M03029
(x1) 2 9/16"x23 3/8"x33 3/8" (65x594x848)
G3 LEFT CORNER CABINET SIDE WALL ASSEMBLY M - A4M03031
(x1)
31/8"x71
/16"x33 3/8" (80x180x848)
d
G5 GRILL CABINET SIDE WALL ASSEMBLY M - A4M03050
(x1) 1 3/4"x22 13/16"x23 1/4" (44x579x591)
