Backyard Discovery FUSION FIRE - Page 8

8

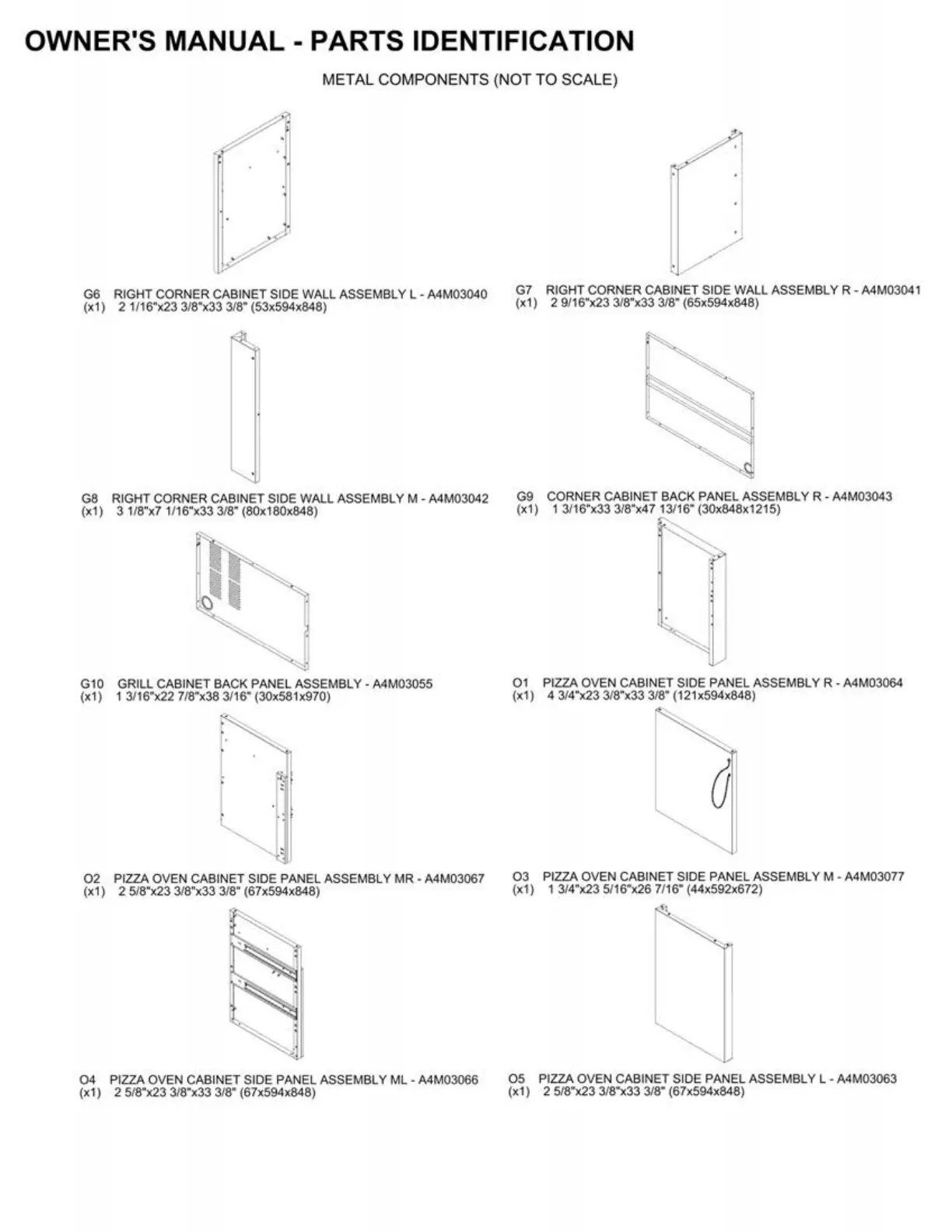

OWNER'S MANUAL - PARTS IDENTIFICATION
MET
AL
COMPONENTS (NOT
TO
SCALE}
G6 RIGHT COR
NE
R CABINET SIDE WALL ASSEMBL
y
L.
A4M03040 G7 RIGHT CORNER CAB
IN
ET SIDE WALL ASSEMBLY R - A4M03041
(x1) 2 1/16"x23 3/8"x33 3/8" (53x594x848) (x1) 2 9/16"x23 3/8"x33 3/8" (65x594x848)
G8
RI
GHT CORNER CABINET SIDE WALL ASSEMBLY M - A4M03042 G9 CORNER CABINET BACK P
AN
EL ASSEMBLY R - A4M03043
(x1)
31/8
"x7 1/16"x33 3/8" (8
0x1
80x848) (x1) 1 3/16"x333/8"x47 13/16" (30x848x1215)
G10 GRILL CABINET BACK PANEL ASSEMBLY - A4M03055
01
PIZZA OVEN CABINET SIDE PANEL ASSEMBLY R - A4M03064
(x1) 1 3/16"x22 7/8"x38 3/16" (30x581x970) (x1) 4 3/4"x23 3/8"x33 3/8"
(121
x594x848)
d
02
PIZZA OVEN CABINET SIDE PANEL ASSEMBLY MR - A4M03067
03
PIZZA OVEN CABINET SIDE PANEL ASSEMBLY M - A4M03077
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848) (x1)
13
/4
"x235/
16"x26 7/16" (44x592x672)
04
PIZZA OV
EN
CAB
IN
ET SIDE PANEL ASSEMBLY ML - A4M03066
05
PIZZA OVEN CABINET SI
DE
PANEL ASSEMBLY L - A4M03063
(x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848) (x1) 2 5/8"x23 3/8"x33 3/8" (67x594x848)
