Backyard Discovery FUSION FIRE - Page 72

72

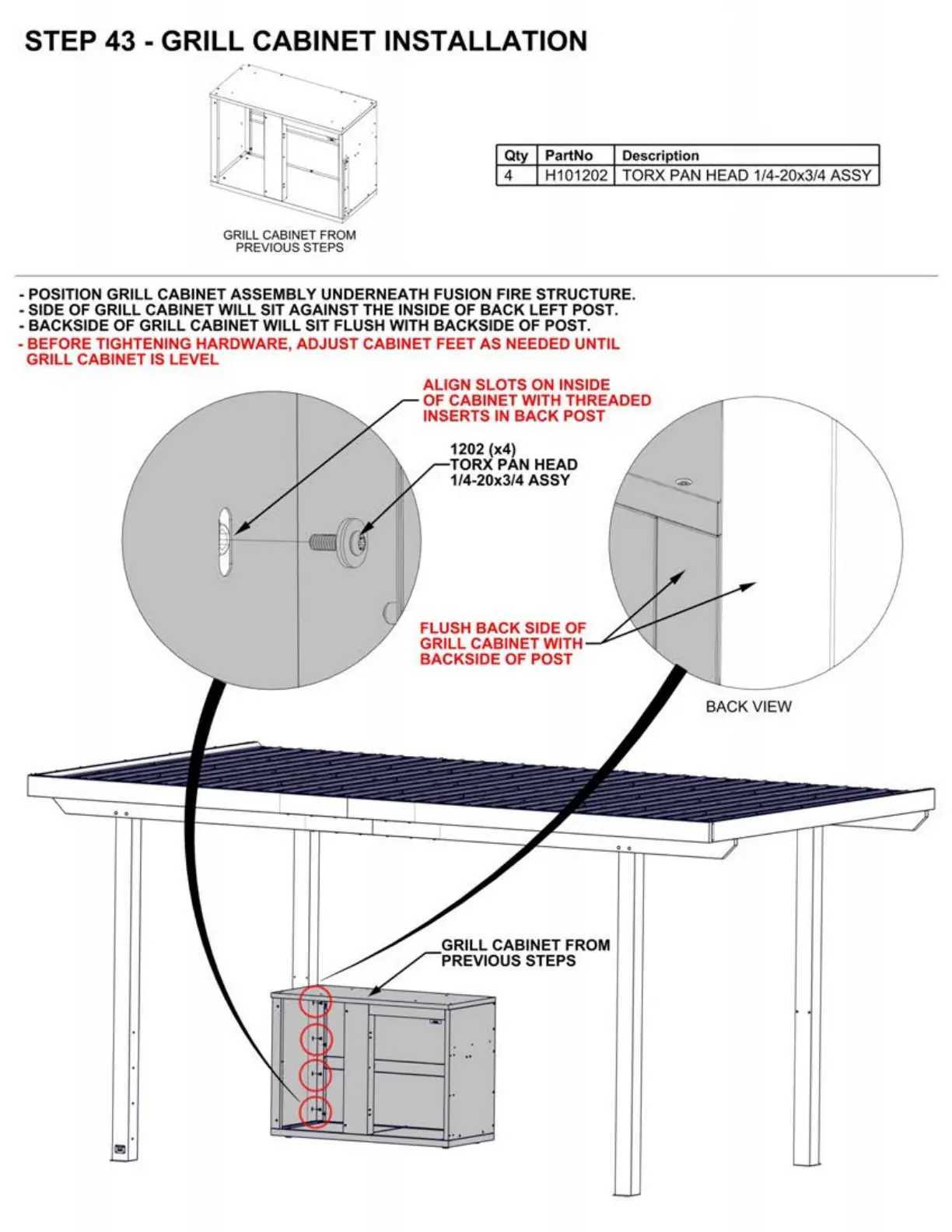

STEP 43 - GRILL CABINET INSTALLATION
. ~
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
GRILL CABINET FROM
PREVIOUS STEPS
- POSITION GRILL CABINET ASSEMBLY UNDERNEATH FUSION FIRE STRUCTURE.
- SIDE OF GRILL CABINET WILL SIT AGAINST THE INSIDE OF
BACK LEFT POST.
- BACKSIDE OF GRILL CABINET WILL SIT FLUSH WITH BACKSIDE OF POST.
- BEFORE TIGHTENING HARDWARE, ADJUST CABINET FEET
AS NEEDED UNTIL
GRILL CABINET IS LEVEL
ALIGN SLOTS ON INSIDE
OF CABINET WITH THREADED
INSERTS
IN BACK POST
1202 (x4)
TORX PAN HEAD
1/4-20x3/4 ASSY
FLUSH
BACK SIDE OF
GRILL CABINET WITH
BACKSIDE OF POST
GRILL CABINET FROM
PREVIOUS STEPS
BACK VIEW
