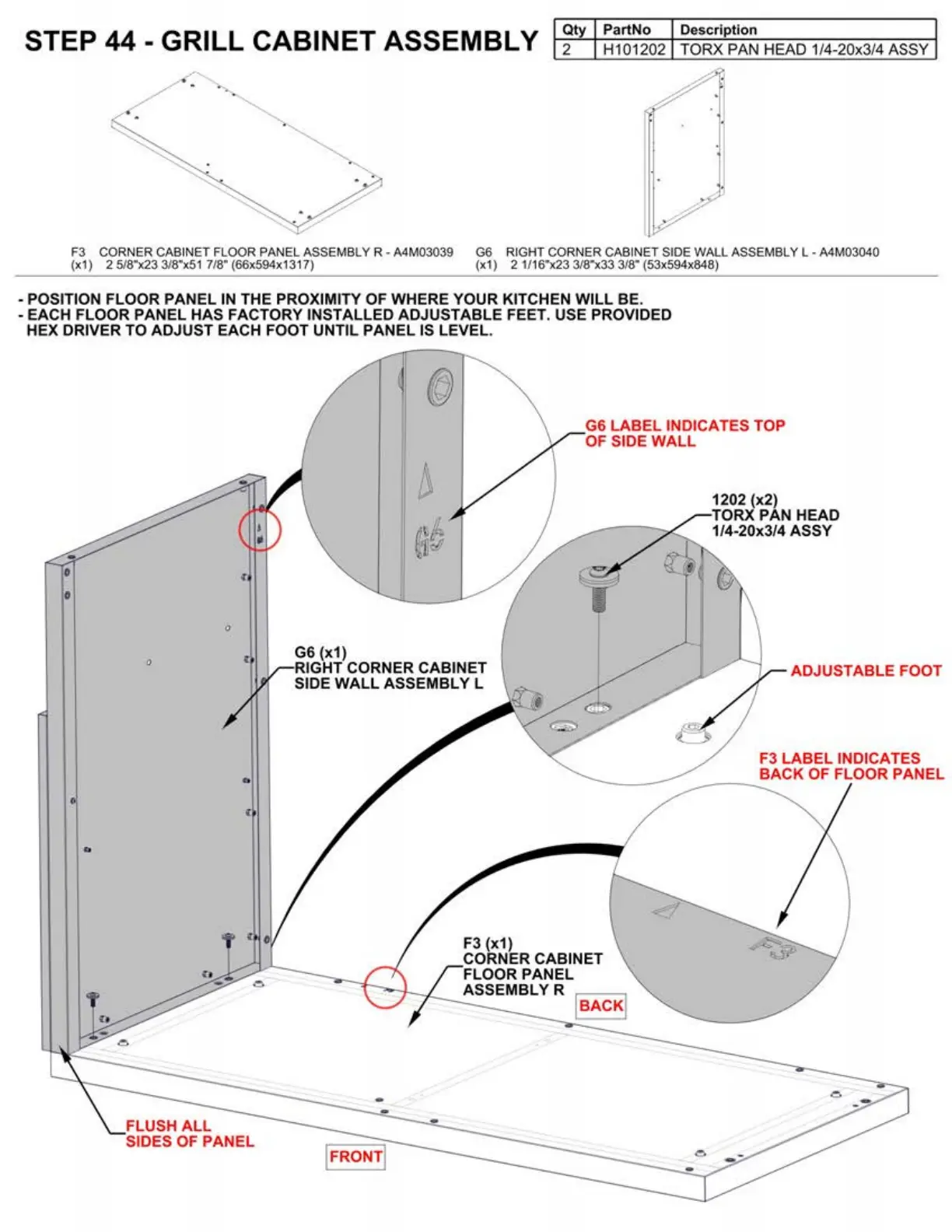

STEP 44 - GRILL CABINET ASSEMBLY
Qty
PartNo Descr
iption
2
H101
202 TORX
PAN
HEAD 1/4-20x3/4 ASSY
F3 CORNER CABINET FLOOR PANEL ASSEMBLY R - A4M03039 G6 RIGHT CORNER CABINET SIDE WALL ASSEMBLY L - A4M03040
(x1) 2 5/8"x23 3/8"
x51
7/8" (66x594x1317) (x1) 2 1/16"x23 3/8"x
33
3/8" (53x594x848)
- POSITION FLOOR PANEL
IN
THE PROXIMITY OF WHERE YOUR KITCHEN
WILL
BE.
- EACH FLOOR PANEL HAS FACTORY INSTALLED ADJUSTABLE FEET. USE PROVIDED
HEX DRIVER TO ADJUST EACH FOOT UNTIL PANEL
IS
LEVEL.
0
0
0
..
0
..
G6
LABEL
INDICATES TOP
OF SIDE
WALL
G6 (x1)
RIGHT CORNER CABINET
SIDE
WALL
ASSEMBLY L
F3 (x1)
CORNER CABINET
FLOOR PANEL
ASSEMBLY R
~
~
1202 (x2)
TORX PAN HEAD
1/4-20x3/4 ASSY
ADJUSTABLE FOOT
F3
LABEL
INDICATES
BACK
OF FLOOR PANEL
