Backyard Discovery FUSION FIRE - Page 74

74
Qty PartNo Description

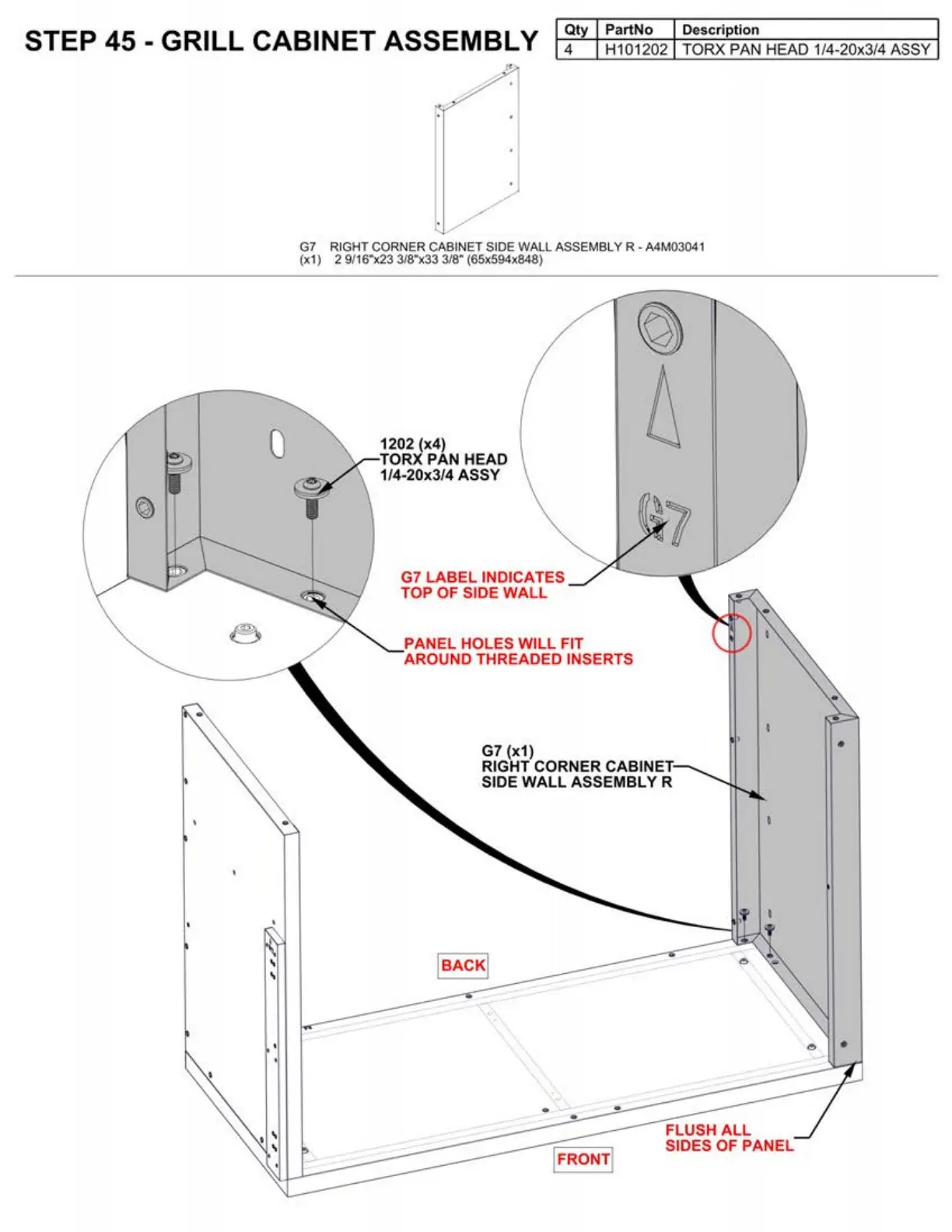

STEP 45 - GRILL CABINET ASSEMBLY
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
0
G7 RIGHT CORNER CABINET SIDE WALL ASSEMBLY R - A4M03041
(x1) 2 9/16"x23 3/8"x33 3/8" (65x594x848)
1202 (x4)
TORX PAN HEAD
1 /4-20x3/4 ASSY
G7 LABEL INDICATES
TOP OF SIDE WALL
PANEL HOLES WILL FIT
AROUND THREADED INSERTS
G7 (x1)
RIGHT CORNER CABINET
SIDE
WALL ASSEMBLY R
'
'
', " - ;::::.
-~ -- -
- -
. -.
- .
•
