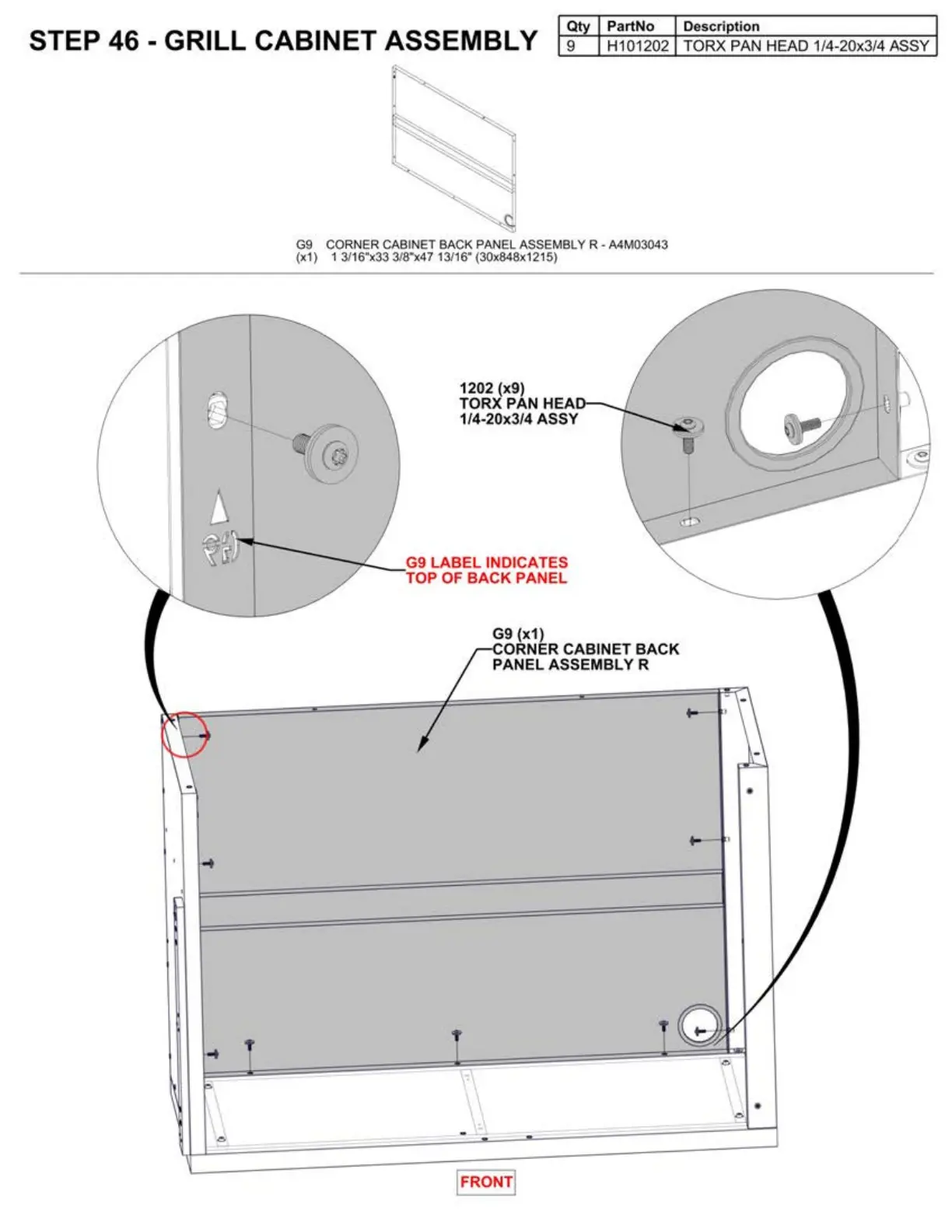

STEP 46 - GRILL CABINET ASSEMBLY
Qty PartNo Description
9 H101202 TORX PAN HEAD 1/ 4-20x3/4 ASSY
G9 CO RN ER CABINET B AC K PANEL ASSEMBLY R - A4M03043
(x 1) 1 3/16"x333/8"x47 13/16" (30x848x121 5)
1202 (x9)
TORX PAN HEA
1 /4-20x3/4 ASSY
/
~_ G9 LABEL INDICATES
TOP OF BACK PANEL
G9 (x1)
CORNER CABINET BACK
PANEL ASSEMBLY R
IFRONTI
•
