76

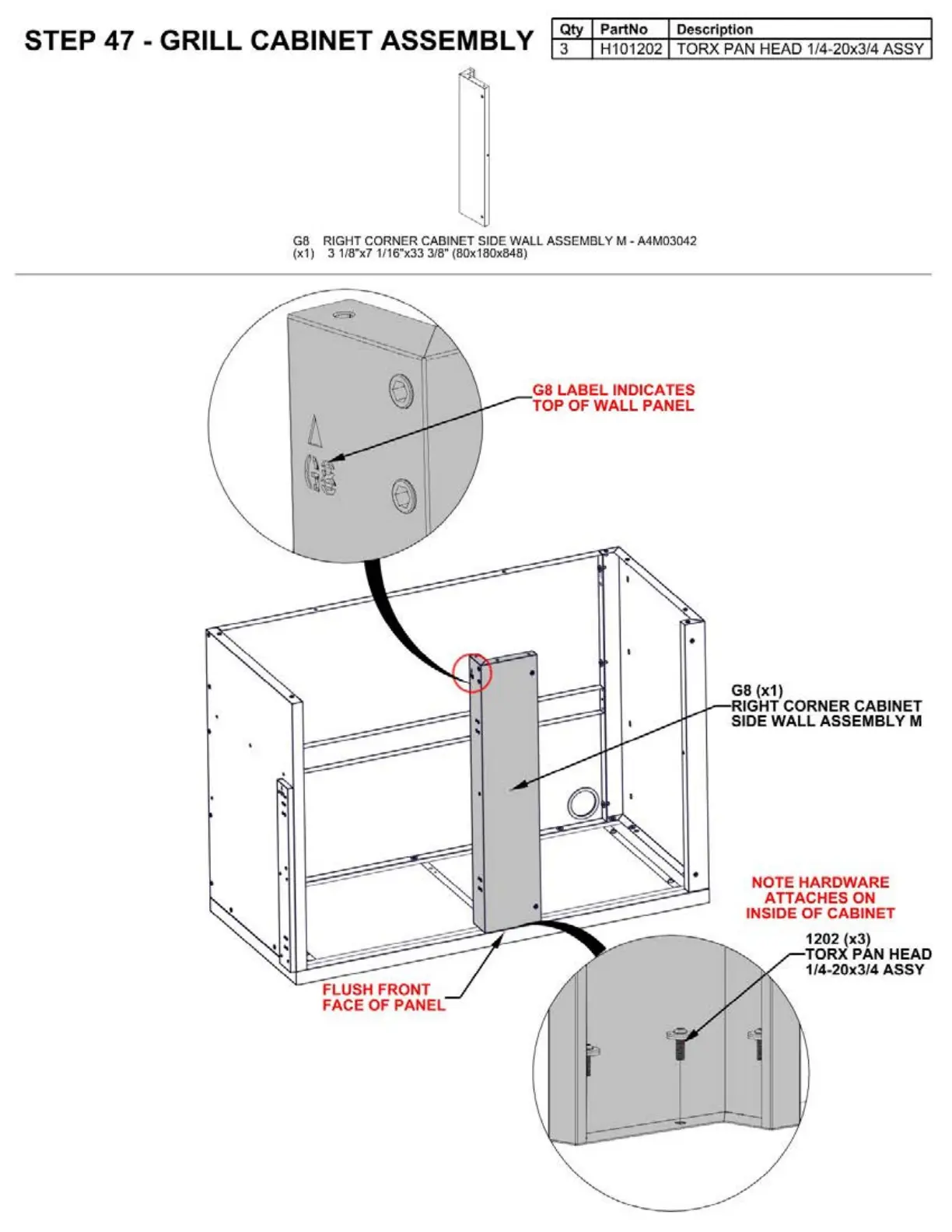

STEP 47 - GRILL CABINET ASSEMBLY
Qty PartNo Description
3 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
G8 RIGHT CORNER CABINET SIDE WALL ASSEMBLY M - A4M03042
(x1)
31/8"x71/ 16"x33 318" (80x180x848)
ij
GS LABEL INDICATES
TOP OF WALL PANEL
•
GS (x1)
RIGHT CORNER CABINET
SIDE
WALL ASSEMBLY M
NOTE HARDWARE
ATTACHES ON
INSIDE OF CABINET
1202 (x3)
TORX PAN HEAD
1 /4-20x3/4 ASSY
