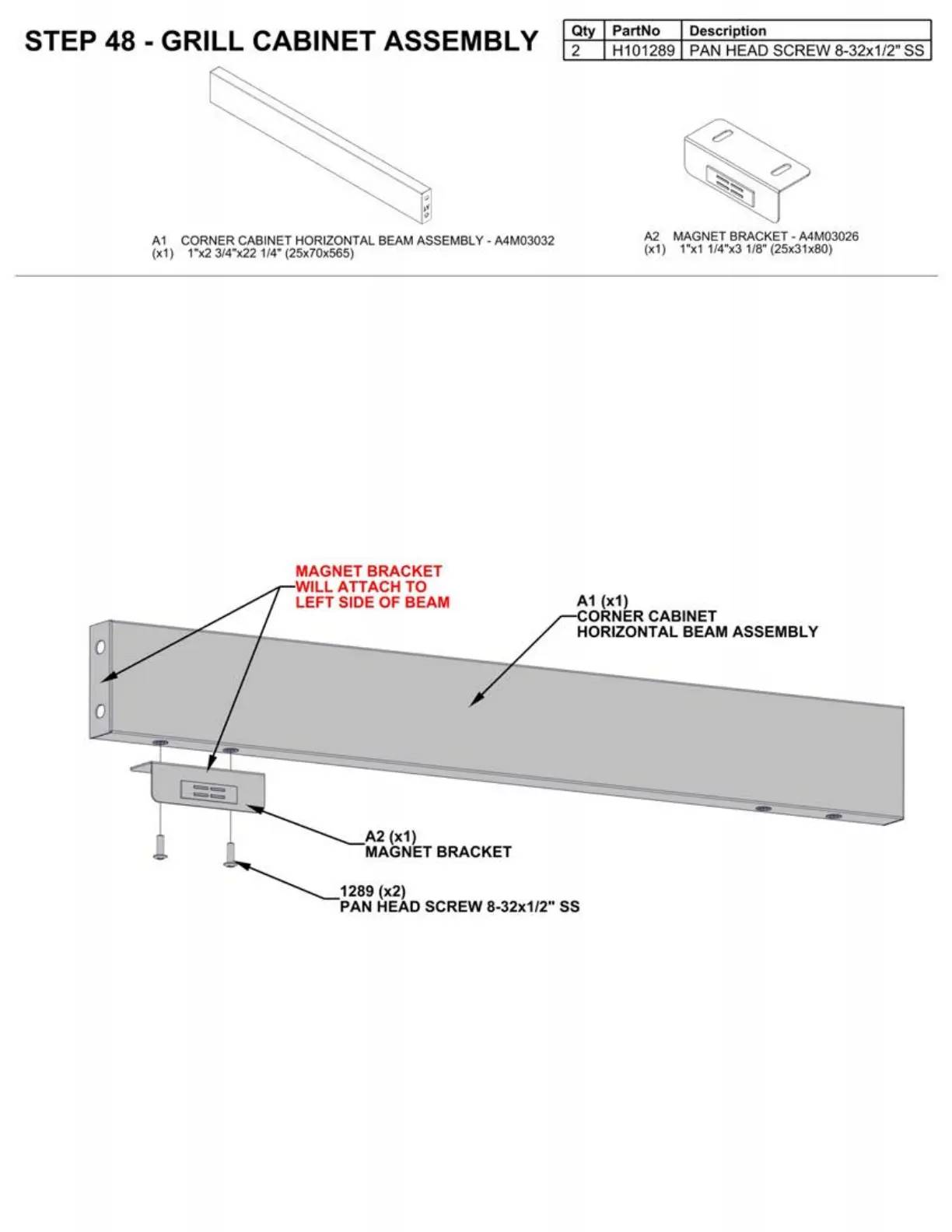

STEP 48 - GRILL CABINET ASSEMBLY
A 1 CO RN ER CABINET HO RI ZO NT AL BE AM ASSEMBLY - A4M03032
(x1) 1"x2 3/4"x22 1/4" (25x70x565)
MAGNET BRACKET
WILL ATTACH TO
LEFT SIDE OF BEAM
A2 (x1)
MAGNET BRACKET
1289 (x2)
Qty PartNo Description
2 H101 289 PAN HEAD SCREW 8-32x1/ 2" SS
A1 (x1)
A2 MAGNET BRACKET - A4M03026
(x1) 1"x1 1/
4"x31 /8" (25x31x80)
CORNER CABINET
HORIZONTAL BEAM ASSEMBLY
PAN HEAD SCREW 8-32x1/2" SS
