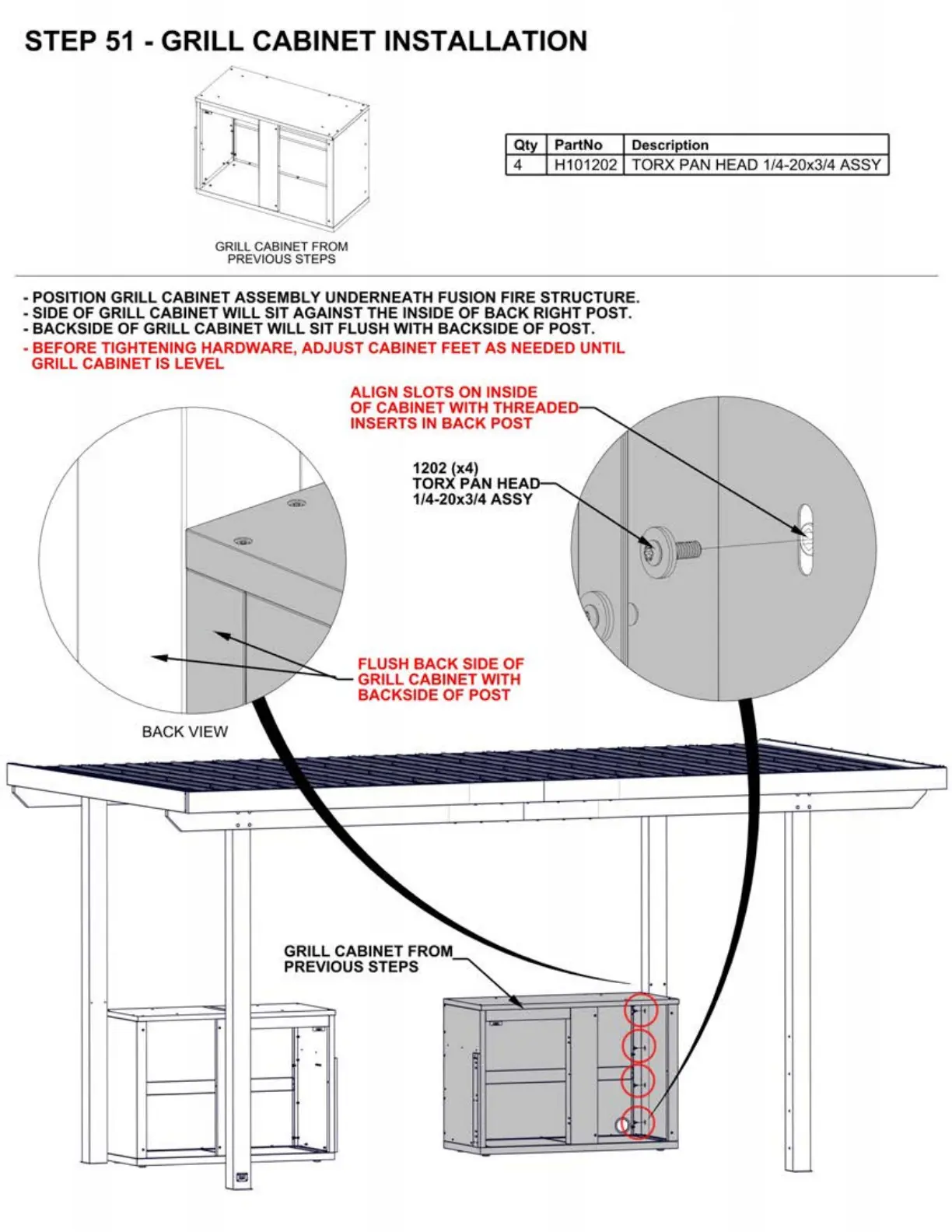

STEP 51 - GRILL CABINET INSTALLATION
Qty PartNo Description
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
GRILL CABINET FROM
PREVIOUS STEPS
- POSITION GRILL CABINET ASSEMBLY UNDERNEATH FUSION FIRE STRUCTURE.
- SIDE OF GRILL CABINET WILL SIT AGAINST THE INSIDE OF BACK RIGHT POST.
- BACKSIDE OF GRILL CABINET WILL SIT FLUSH WITH BACKSIDE OF POST.
- BEFORE TIGHTENING HARDWARE, ADJUST CABINET FEET AS NEEDED UNTIL
GRILL CABINET IS LEVEL
ALIGN SLOTS
ON INSIDE
OF CABINET WITH THREADED
INSERTS IN BACK POST
1202 (x4)
TORX PAN HEA
1/4-20x3/4 ASSY
FLUSH
BACK SIDE OF
GRILL CABINET WITH
BACKSIDE OF POST
GRILL CABINET FROM
PREVIOUS STEPS
