Backyard Discovery FUSION FIRE - Page 82

82

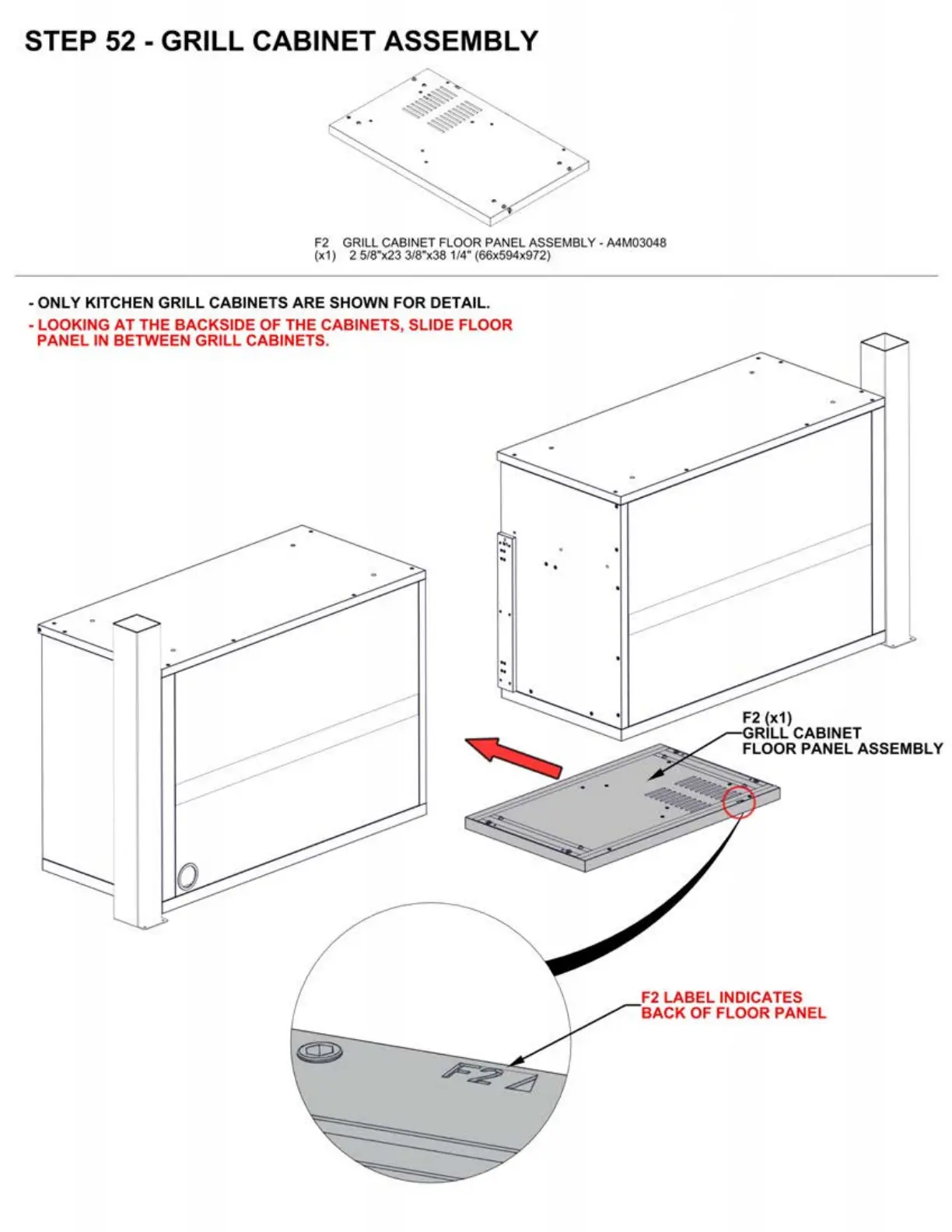

STEP 52 - GRILL CABINET ASSEMBLY
F2 GRILL CABINET FLOOR PANEL ASSEMBLY - A4M03048
(x1) 2 5/8"x23 3/8"x38 1/4" (66x594x972)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
- LOOKING
AT THE BACKSIDE OF THE CABINETS, SLIDE FLOOR
PANEL
IN BETWEEN GRILL CABINETS.
. .
1)
L CABINET
R PANEL ASSEMBLY
F2
LABEL INDICATES
BACK OF FLOOR PANEL
