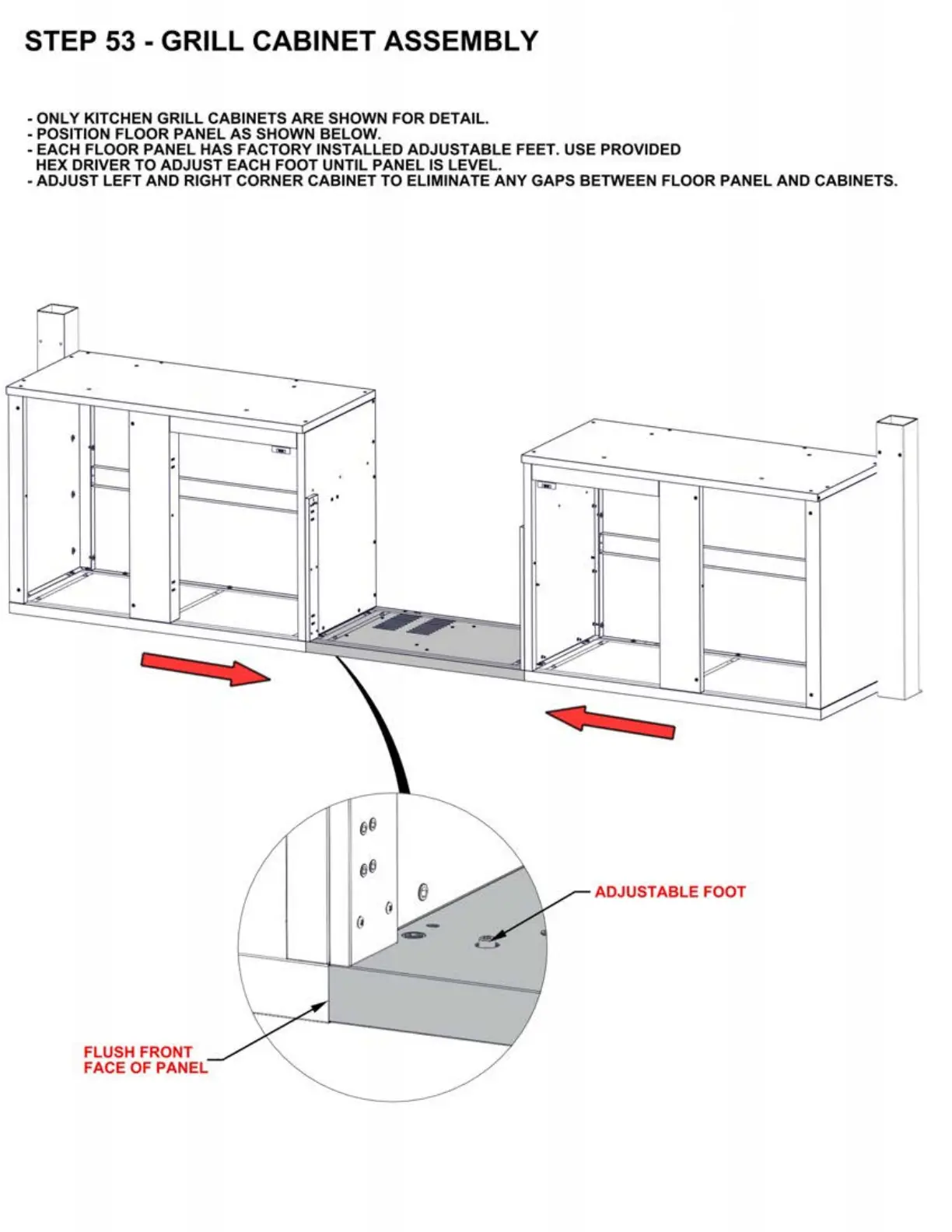

STEP 53 - GRILL CABINET ASSEMBLY
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
- POSITION FLOOR PANEL AS SHOWN BELOW.
- EACH FLOOR PANEL HAS FACTORY INSTALLED ADJUSTABLE FEET. USE PROVIDED
HEX DRIVER TO ADJUST EACH FOOT UNTIL PANEL IS LEVEL.
-ADJUST
LEFT AND RIGHT CORNER CABINET TO ELIMINATE ANY GAPS BETWEEN FLOOR PANEL AND CABINETS.
FLUSH FRONT
FACE OF PANEL
ADJUSTABLE FOOT
