Backyard Discovery FUSION FIRE - Page 84

84

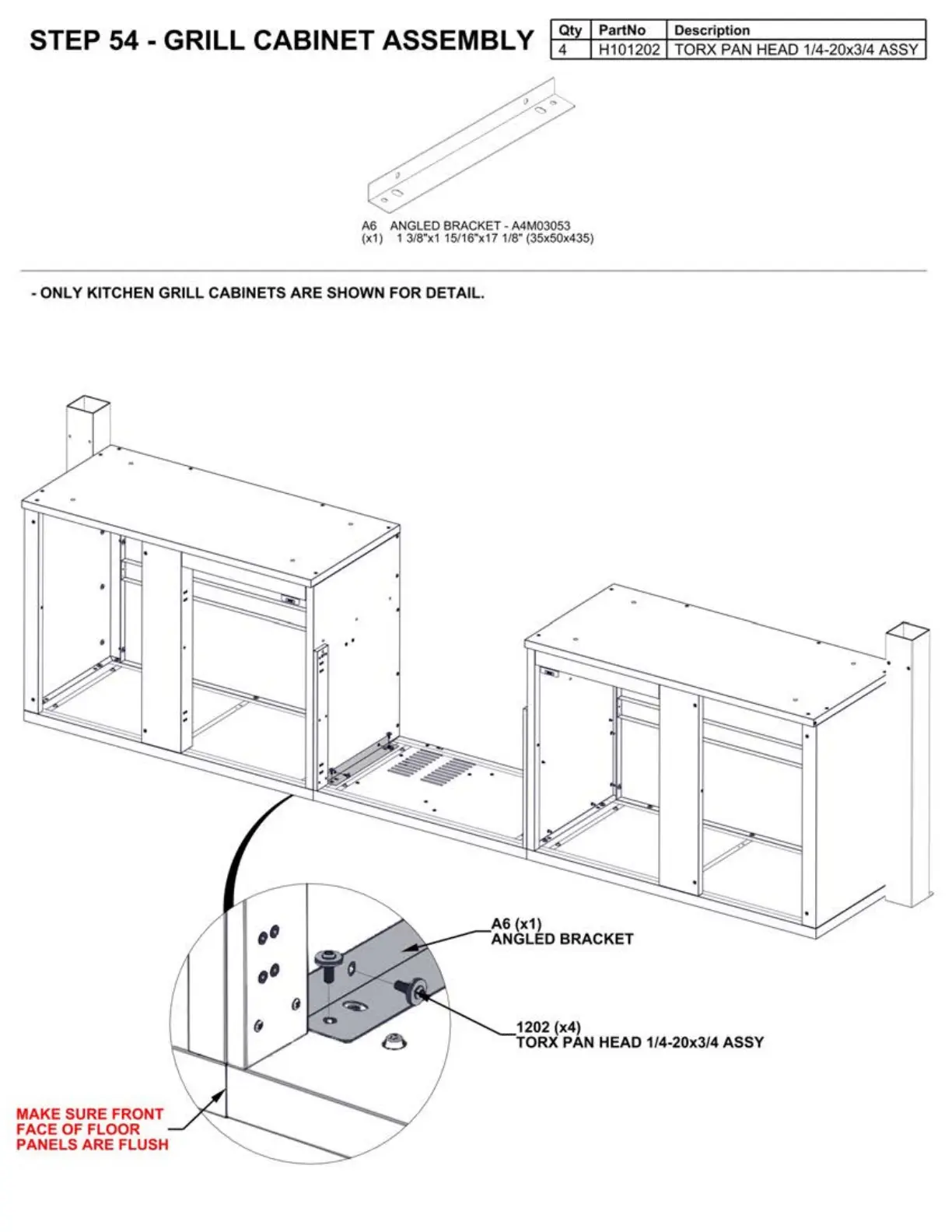

STEP 54 - GRILL CABINET ASSEMBLY
Qty PartNo De scription
4 H101 202 TORX PAN HEAD 1/4-20x3/4 AS SY
A6 ANGLED BRACKET - A4M03053
(x1) 1 3/8"x1 15/16"x17 1/8" (35x50x435)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
MAKE SURE FRONT
FACE
OF FLOOR
PANELS ARE FLUSH
A6 (x1)
ANGLED BRACKET
1202 (x4)
TORX PAN HEAD 1/4-20x3/4
ASSY
