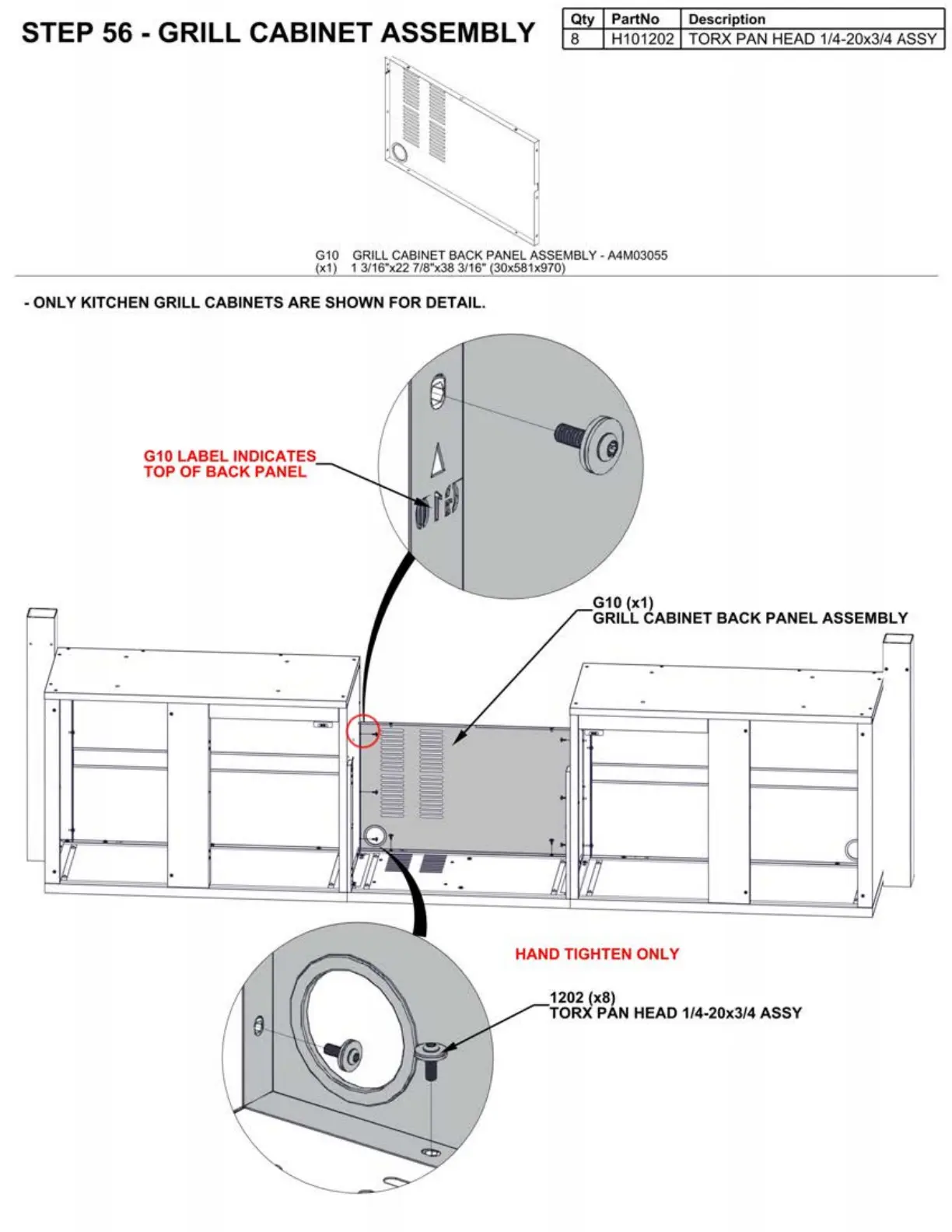

STEP 56 - GRILL CABINET ASSEMBLY
Qty PartNo Descr i ption
8 H101202 TORX PAN HEAD 1/4-20x3/4 A SS Y
G10 GRILL CABINET BACK PANEL ASSEMBLY - A4M03055
(x1) 1 3/1
6"x227 /8"x38 3/16" (3 0x581x970)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
G10 LABEL INDICATES
TOP OF BACK PANEL
G10 (x1)
GRILL CABINET BACK PANEL ASSEMBLY
HAND TIGHTEN ONLY
1202 (x8)
TORX PAN HEAD 1/4-20x3/4 ASSY
