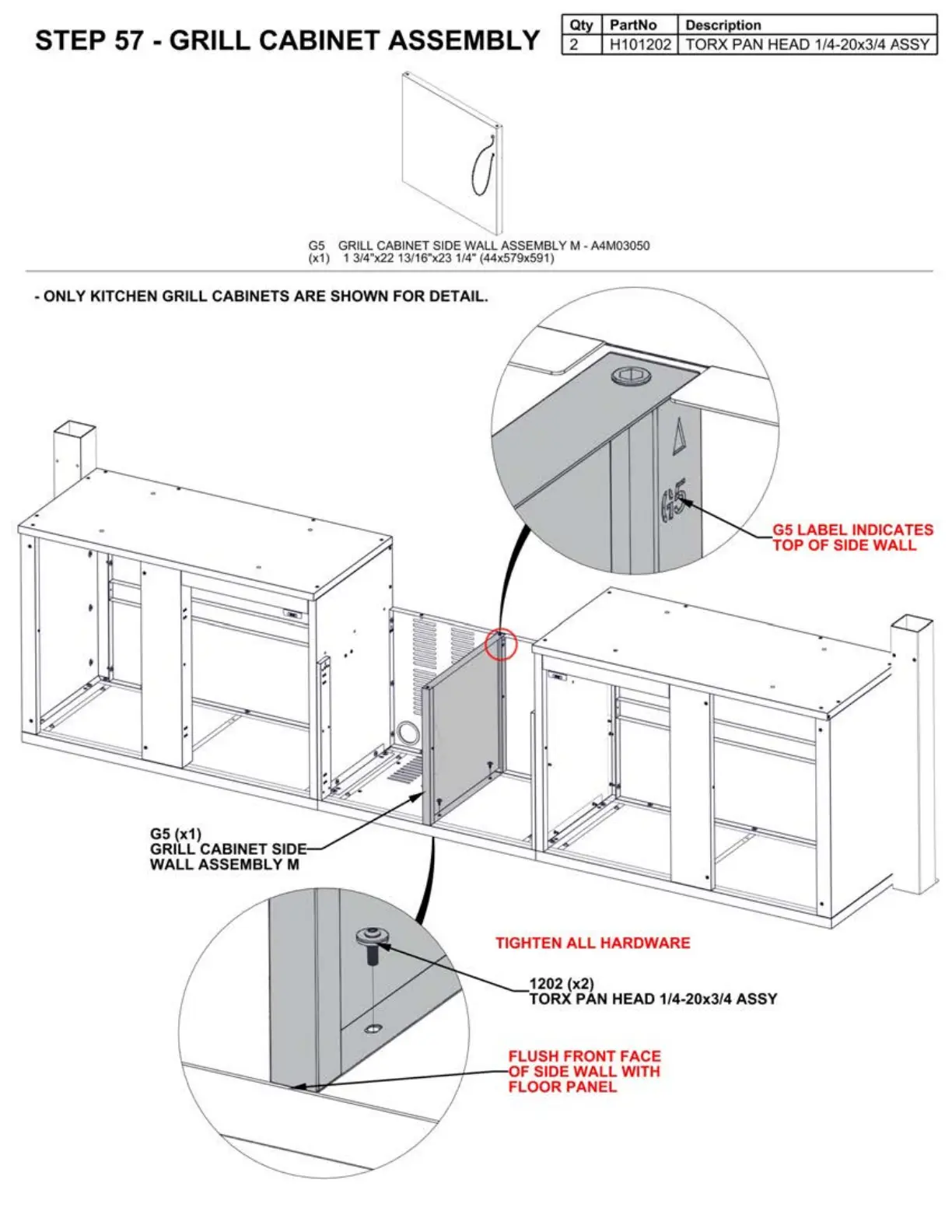

STEP 57 - GRILL CABINET ASSEMBLY
Qty PartNo Description
2 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
d
G5 GRILL CABINET SIDE WALL ASSEMBLY M - A4M03050
(x1) 1 3/4"x22 13/16"x23 1/4" (44x579x591)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
GS (x1)
GRILL CABINET SIDE
WALL ASSEMBLY M
TIGHTEN
ALL HARDWARE
1202 (x2)
GS LABEL INDICATES
TOP OF SIDE
WALL
TORX PAN HEAD 1/4-20x3/4 ASSY
