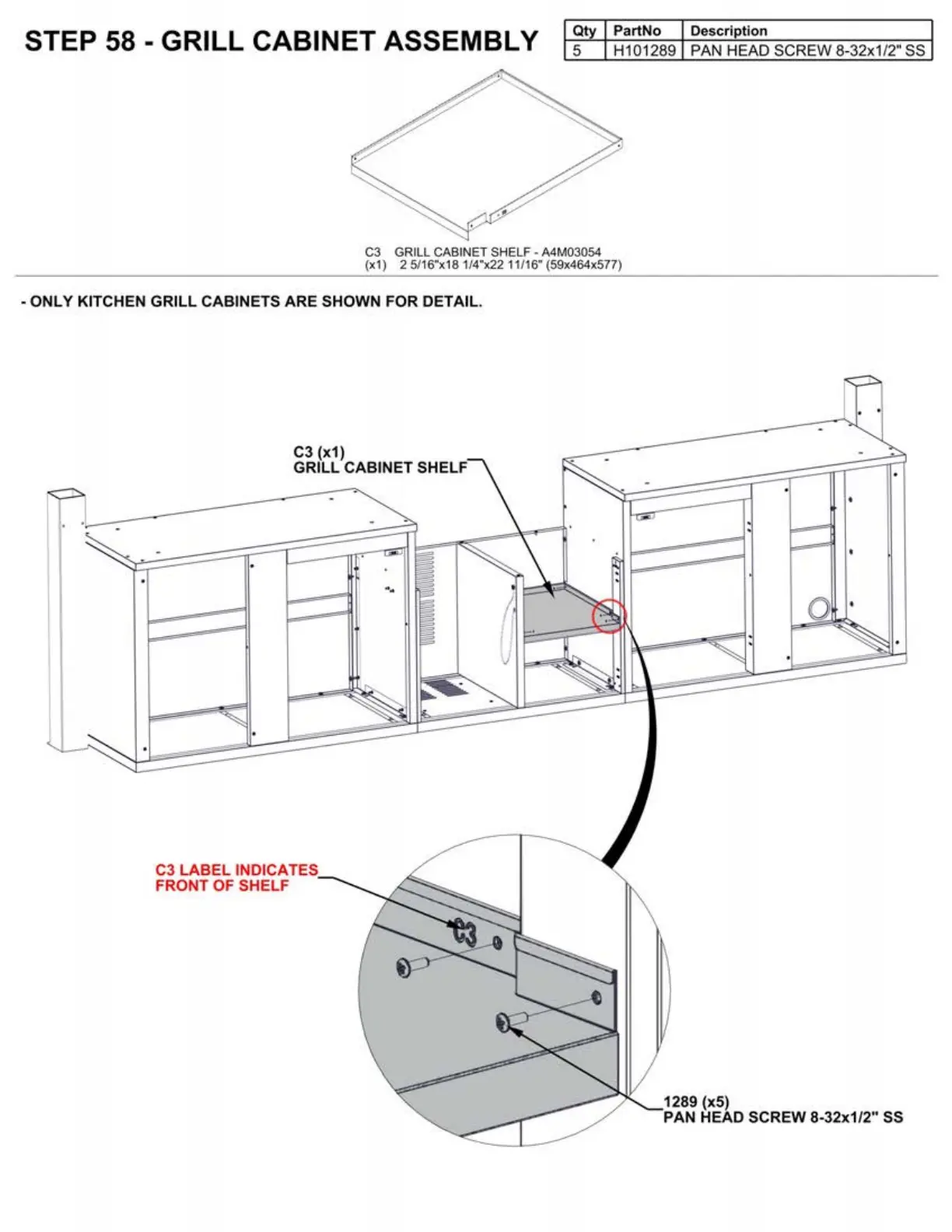

STEP 58 - GRILL CABINET ASSEMBLY
Qty PartNo Description
5 H101289 PAN HEAD SCREW 8-32x1/2" SS
C3 GRILL CABINET SHELF - A4M03054
(x1) 2 5/
16 "x18 1/4"x22 11/16" (59x464x577)
·ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
C3 (x1)
GRILL CABINET SHELF
C3 LABEL INDICATES
FRONT OF SHELF
1289 (x5)
PAN
HEAD SCREW 8-32x1/2" 55
