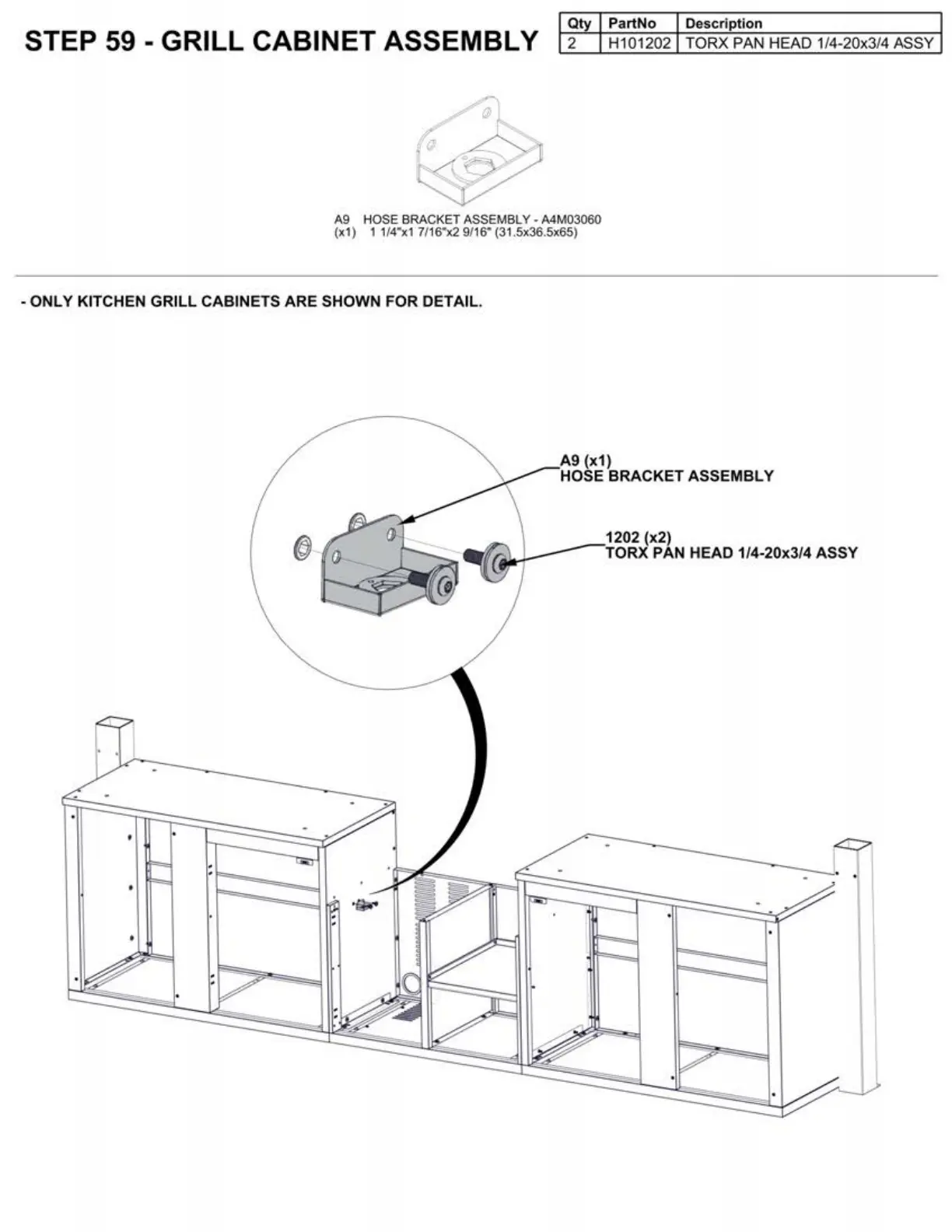

STEP 59 - GRILL CABINET ASSEMBLY
Qty PartNo Description
2 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
A9 HOSE BRACKET ASSEMBLY - A4M03060
(x1) 1 1/4"x1 7/16"
x29 /16" (3 1.5x36.5x65)
·ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
A9 (x1)
HOSE BRACKET ASSEMBLY
1202 (x2)
TORX PAN HEAD 1/4-20x3/4 ASSY
