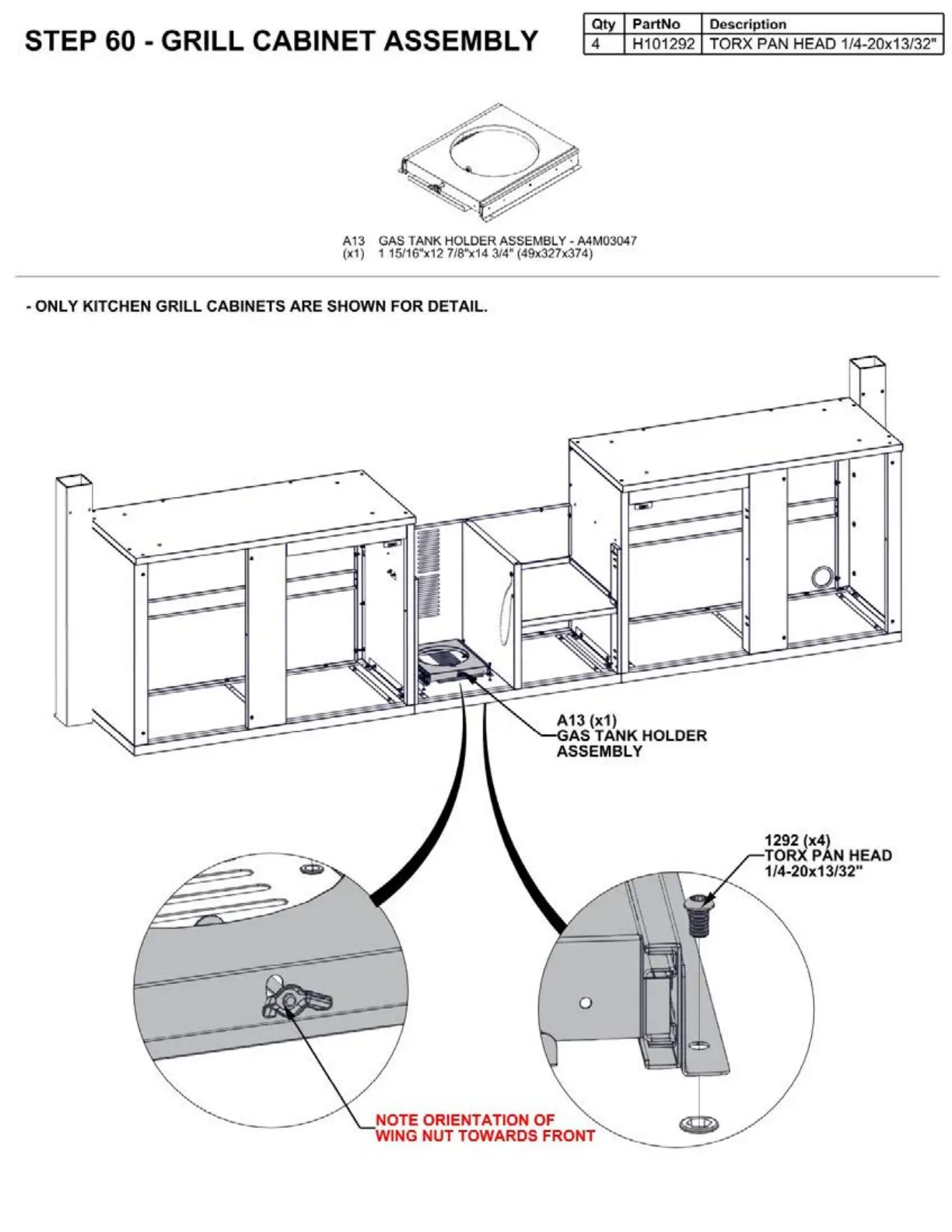

STEP 60 - GRILL CABINET ASSEMBLY
Qty PartNo Description
4 H101292 TORX PAN HE AD 1/4-20x13/32"
A13 GAS TANK HOLDER ASSEMBLY -A4M0304 7
(x1) 1 15/16"x12 7/8"x14 3/4" (49x327x374)
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
A13 (x1)
GAS TANK HOLDER
ASSEMBLY
0
NOTE ORIENTATION OF
WING NUT TOWARDS FRONT
1292 (x4)
TORX PAN HEAD
1/4-20x13/
32"
