Backyard Discovery FUSION FIRE - Page 91

91

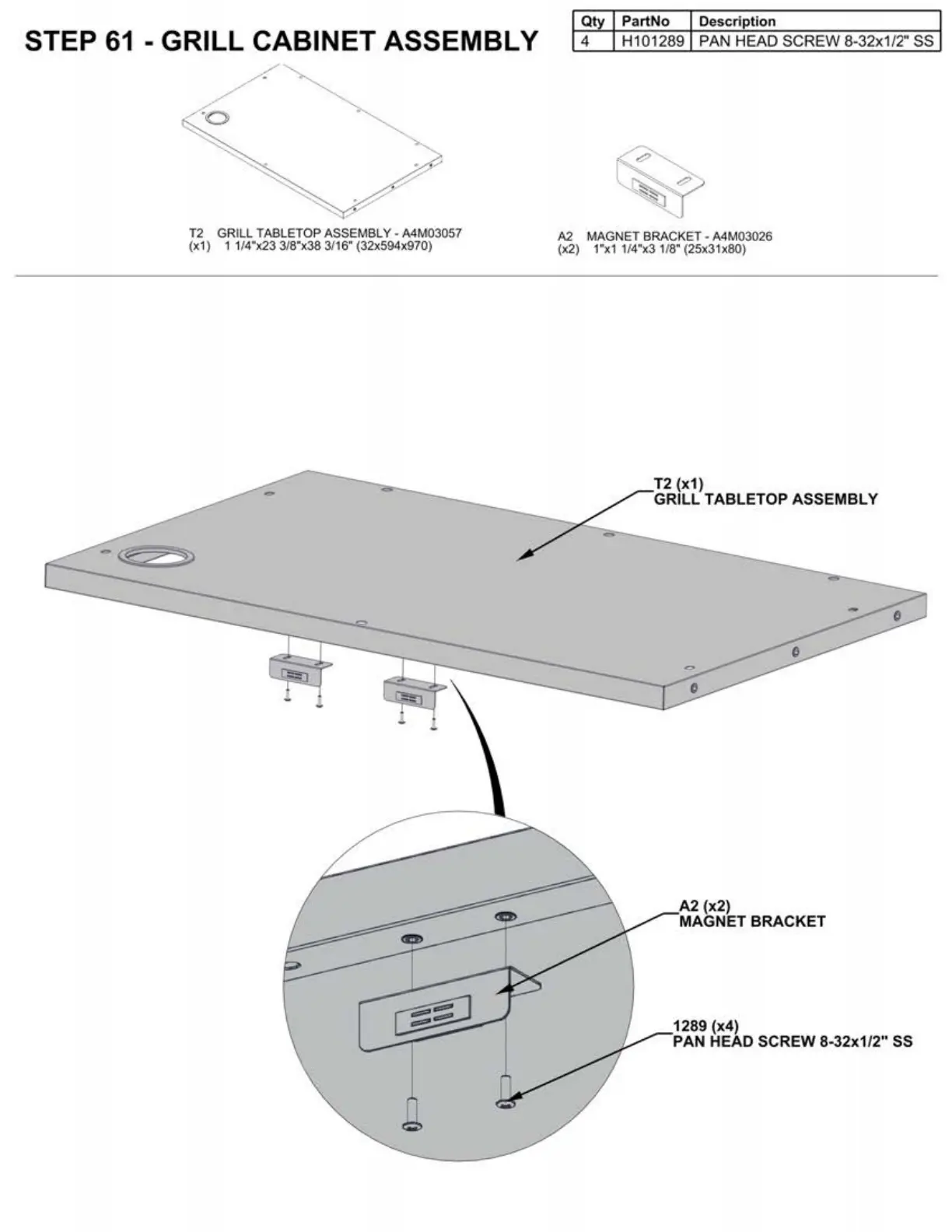

STEP 61 - GRILL CABINET ASSEMBLY
T2 GRILL TABLETOP ASSEMBLY - A4M03057
(x1) 1 1/4"x23 3/8"x38 3/16" (32x594x970)
Qty PartNo Description
4 H101 289 PAN HEAD SCREW 8-32x1 /2" SS
A2 MAGN ET BRACKET - A4M03026
(x2) 1"
x1 1/4"x3 1/8" (25x31x80)
T2 (x1)
GRILL TABLETOP ASS EMBLY
A2 (x2)
MAGNET BRACKET
1289 (x4)
PAN HEAD SCREW 8-32x1/2" SS
