Backyard Discovery FUSION FIRE - Page 92

92
Ss
Ly
Qty PartNo Des cripti on

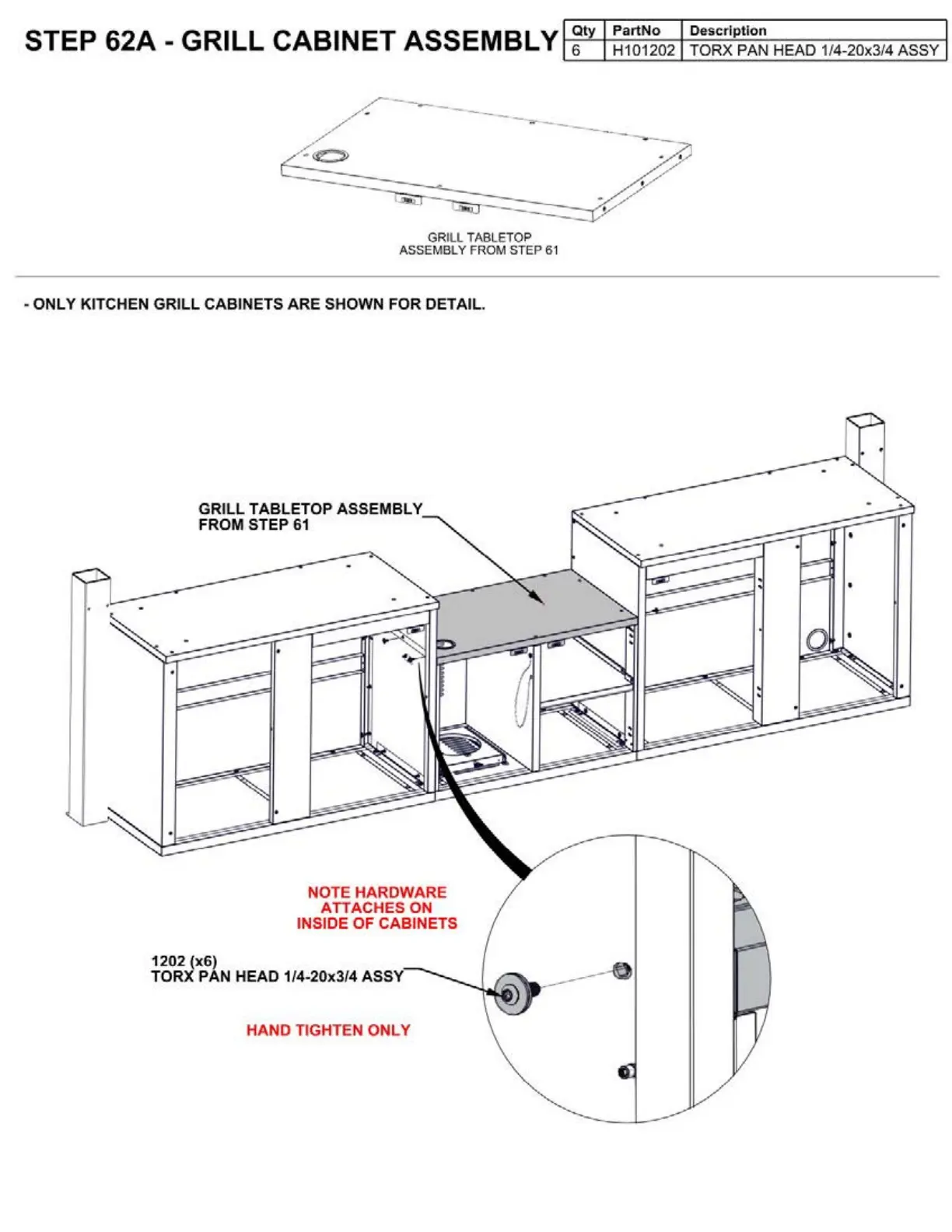

STEP 62A - GRILL CABIN ET A EM B L-: 6 ~...:...H.::.:..1 0 :.;.;.1 2 ,;;_ 02~T..;;.;;O R..;;.;. X ..:;..P;_;_ AN- H E-A-D -1 /4 - -2- 0-x3-/4-AS- S ----1Y
- --------------- - ---------
GRILL TABLET OP
ASSEMBLY FROM STEP 61
- ONLY KITCHEN GRILL CABINETS ARE SHOWN FOR DETAIL.
GRI
LL TABLETOP ASS EMBLY
FROM STEP
61
1202 (x6)
NOTE HARDWARE
ATTACHES ON
INSIDE
OF CABINETS
TORX PAN HEAD 1/4-20x3/4
ASSY
HAND TIGHTEN ONLY
