SLIDE BED 8' DARK GREEN
(x1)
A6P00386
BOLT WH
5/16x1/2
(x3)
H100115
T-NUT
5/16
(x3)
H100074

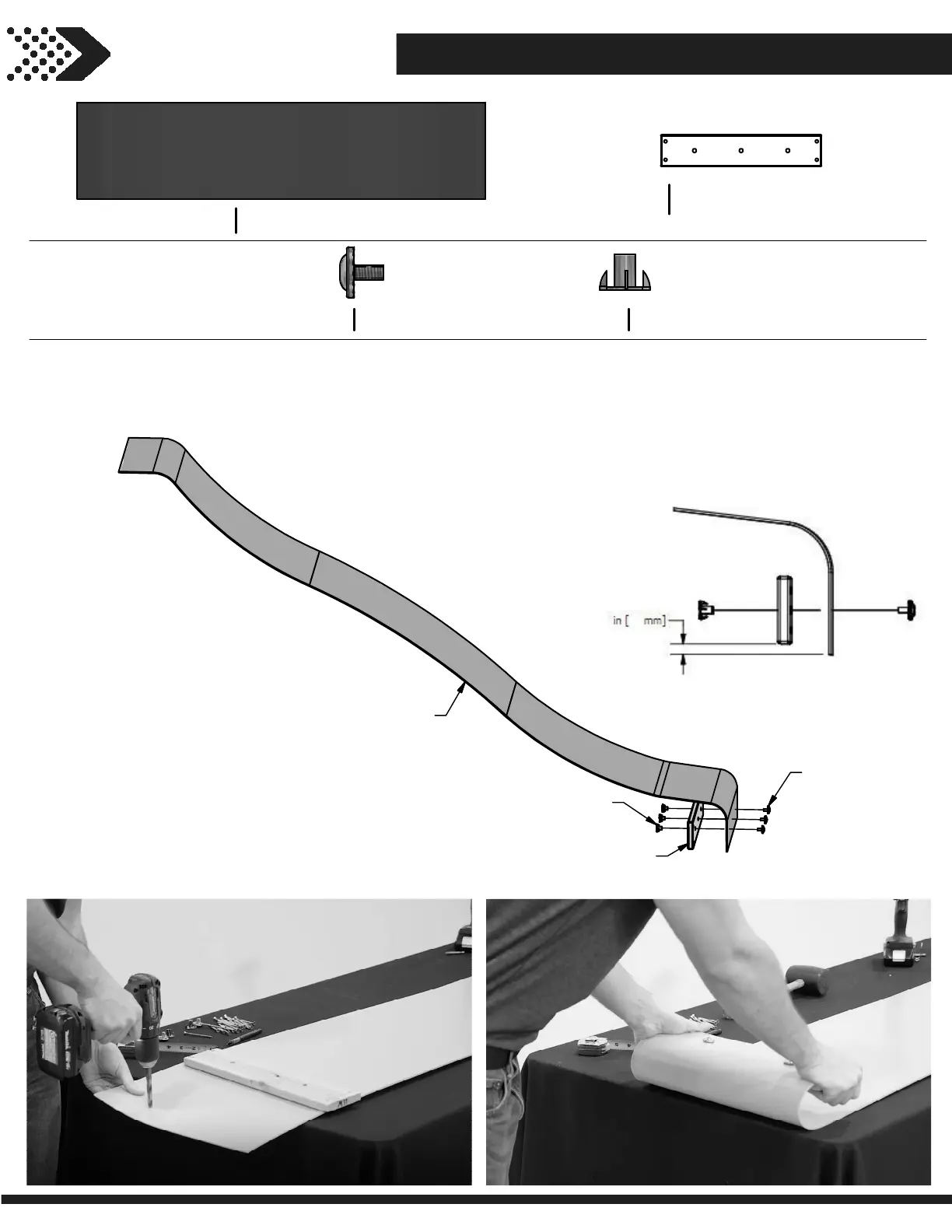

STEP 1
SLIDE BRACE - W4L08748
5/8"x3 3/8"x17 1/4" (16x86x438)
M77
(x1)
386
(x1)
SLIDE BED 8' DARK GREEN
115
(x3)
BOLT - 1/2"
074
(x3)
T-NUT - 5/16"
SLIDE ASSEMBLY
M77
(x1)
SLIDE BRACE
NOTE:TAKE NOTE OF SLIDE BE
D SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND.
PLACE SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/4" FROM THE EDGE. USE M77
BOARD AS A TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. USE A 5/16" DRILL BIT.
TIP:
INSTALL T-NUTS INTO BOARDS
BEFORE ASSEMBLY
TIP:
PREBENDING THE ENDS WILL EASE ASSEMBLY.
PLACING THE SLIDE BED OUT IN THE SUN MAKES
IT EASIER TO BEND.
1/4
6
