Backyard Discovery GRAYSON PEAK - Page 47

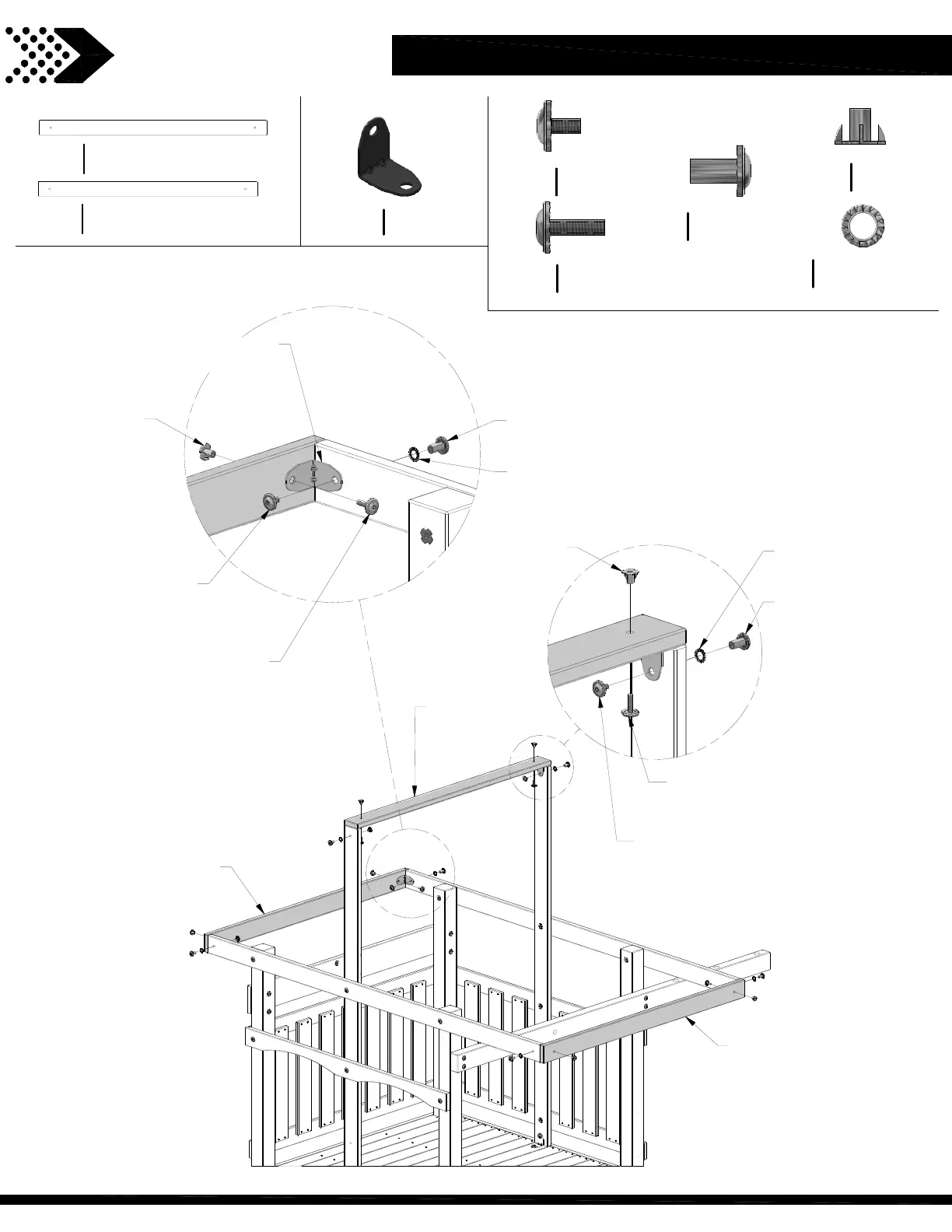

FORT ASSEMBLY
STEP 23
074 (x4)
T-NUT - 5/16"
008 (x2)
BOLT - 5/16x1"
074 (x2)
T-NUT - 5/16"
H9 (x1)
ROOF RAIL
H10 (x1)
ROOF RAIL
H9 (x1)
ROOF RAIL
ROOF RAIL - W4L13766
1"x3 3/8"x50 7/8" (24x86x1291)
H9
(x2)
ROOF RAIL - W4L13767
1"x3 3/8"x48 7/8" (24x86x1243)
H10
(x1)
BOLT WH
5/16x1
(x6)
H100008
1046 (x6)
L BRACKET 2.5x38x55x55
L BRACKET
2.5x38x55x55
(x6)
A4M01046
BOLT WH
5/16x1/2
(x6)
H100115
WASHER LOCK
EXT
12x19
(x6)
H100031
T-NUT
5/16
(x6)
H100074
NUT BARREL WH
5/16x7/8
(x6)
H100005
115 (x4)
BOLT - 1/2"
008 (x4)
BOLT - 5/16x1"
005 (x4)
NUT BARREL - 7/8"
031 (x4)
WASHER - 12x19
115 (x2)
BOLT - 1/2"
031 (x2)
WASHER - 12x19
005 (x2)
NUT BARREL - 7/8"
