FOLLOW INSTRUCTIONS BELOW BEFORE USING THE WEB SWING.

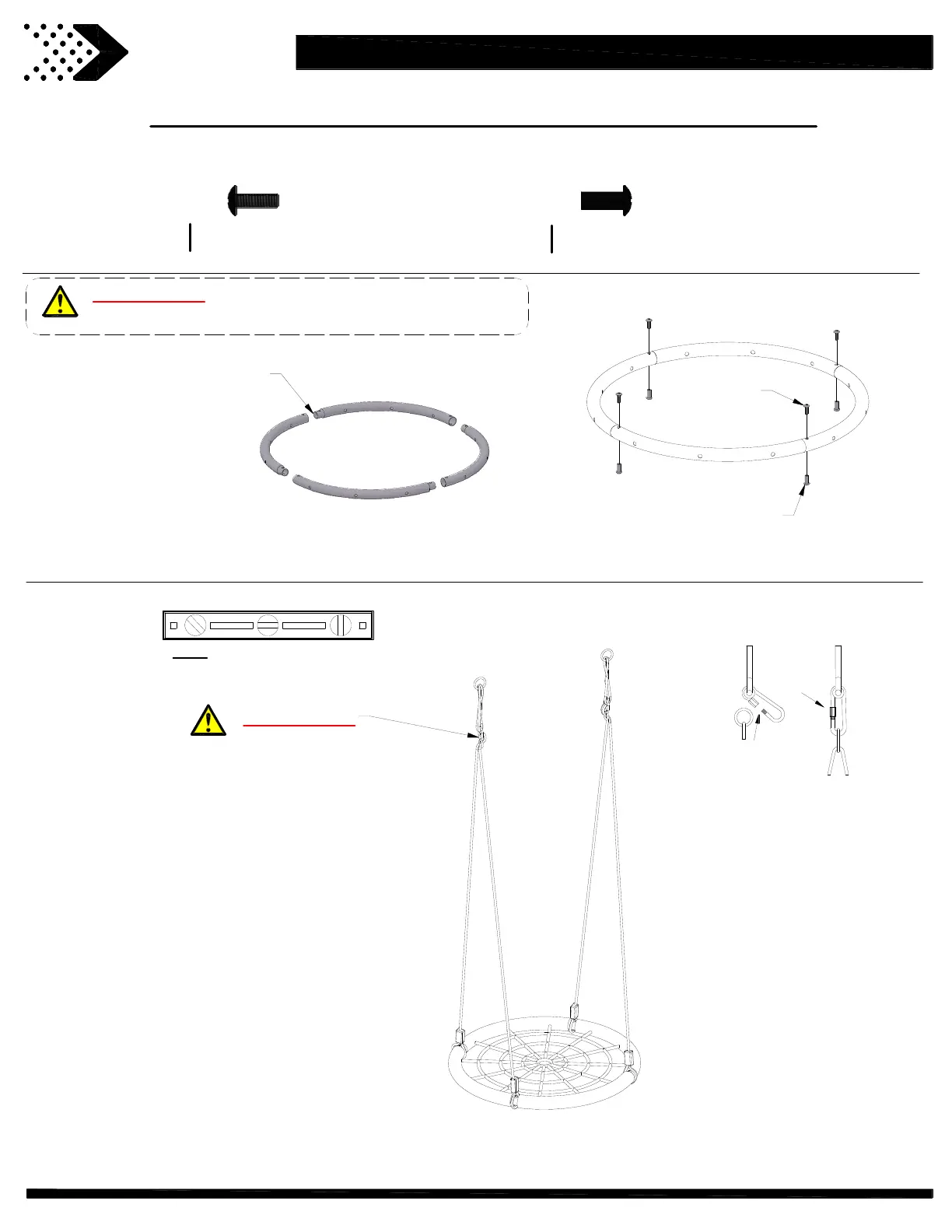

WEB SWING SETUP INSTRUCTIONS:
Note: It is important that
the web swing hang level.
TIGHTEN QUICK
LINK
INSERT INTO
QUICK LINK
WEB SWING
SETUP
IMPORTANT:
SLIDE ROPE LOOPS OVER TUBE ENDS FIRST!
SLIDE NARROW END OF TUBES INTO
LARGER OPENING AFTER SLIDING
ROPE LOOPS ONTO TUBES.
NOTE: ROPE WEBBING NOT
SHOWN IN ILLUSTRATION FOR
CLARITY.
BOLT PTH BLK (with LOCTITE)
1/4x3/4
(4)
H100832
NUT BARREL PTH BLK
1/4x3/4
(4)
H100831
IMPORTANT
TO ENSURE STRAIGH
T
SWINGING MOTION,
ADJUST BOTH
"S" BRACKETS UNTIL
WEB SEAT IS LEVEL.
831
(x4)
NUT BARREL - 3/4"
832
(x4)
BOLT - 3/4"
To Next Page
