Backyard Discovery HILLCREST - Step 4: Assembling A-Frame Support

SWING BEAM SUPPORT - W4L16085
3 3/8"x3 3/8"x49 3/8" (86x86x1254)
SP50
(x1)
ANGLE BRACE - W4L16004
1 7/16"x3 3/8"x87 3/16" (36x86x2214)
E51
(x2)
A-FRAME
BRACKET
(x1)
A4M01169

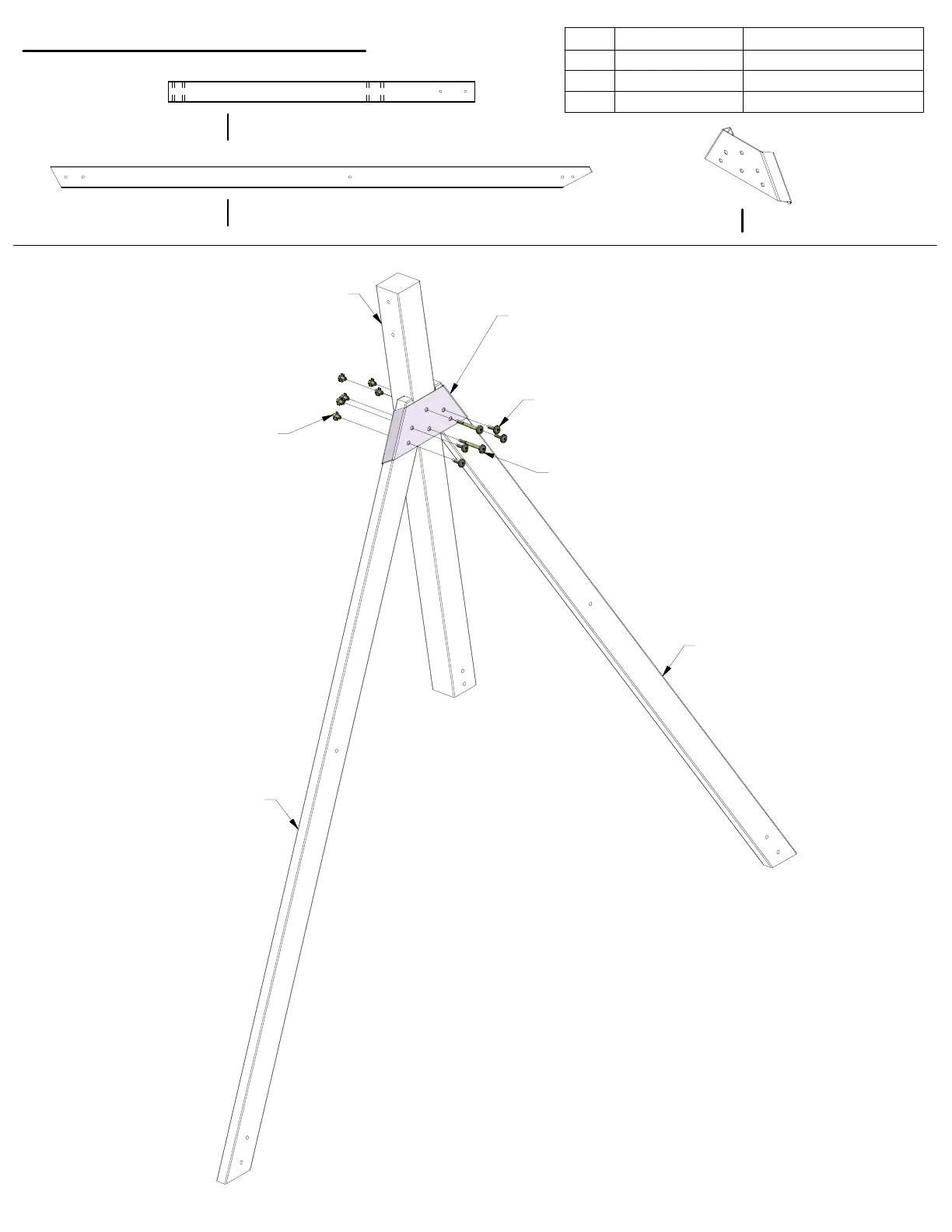

STEP 4 - SWING BEAM
QTY
PART NUMBER DESCRIPTION
4 H100009 BOLT WH 5/16x1 1/4
2
H100018
BOLT WH 5/16x3 1/2
6 H100074 T-NUT 5/16
009 (x4)
BOLT - 1 1/4"
018 (x2)
BOLT - 3 1/2"
074 (x6)
T-NUT - 5/16"
E51 (x1)
SP50 (x1)
E51 (x1)
169 (x1)
A-FRAME BRACKET
TIP:
INSTALL T-NUTS IN WOOD FIRST
