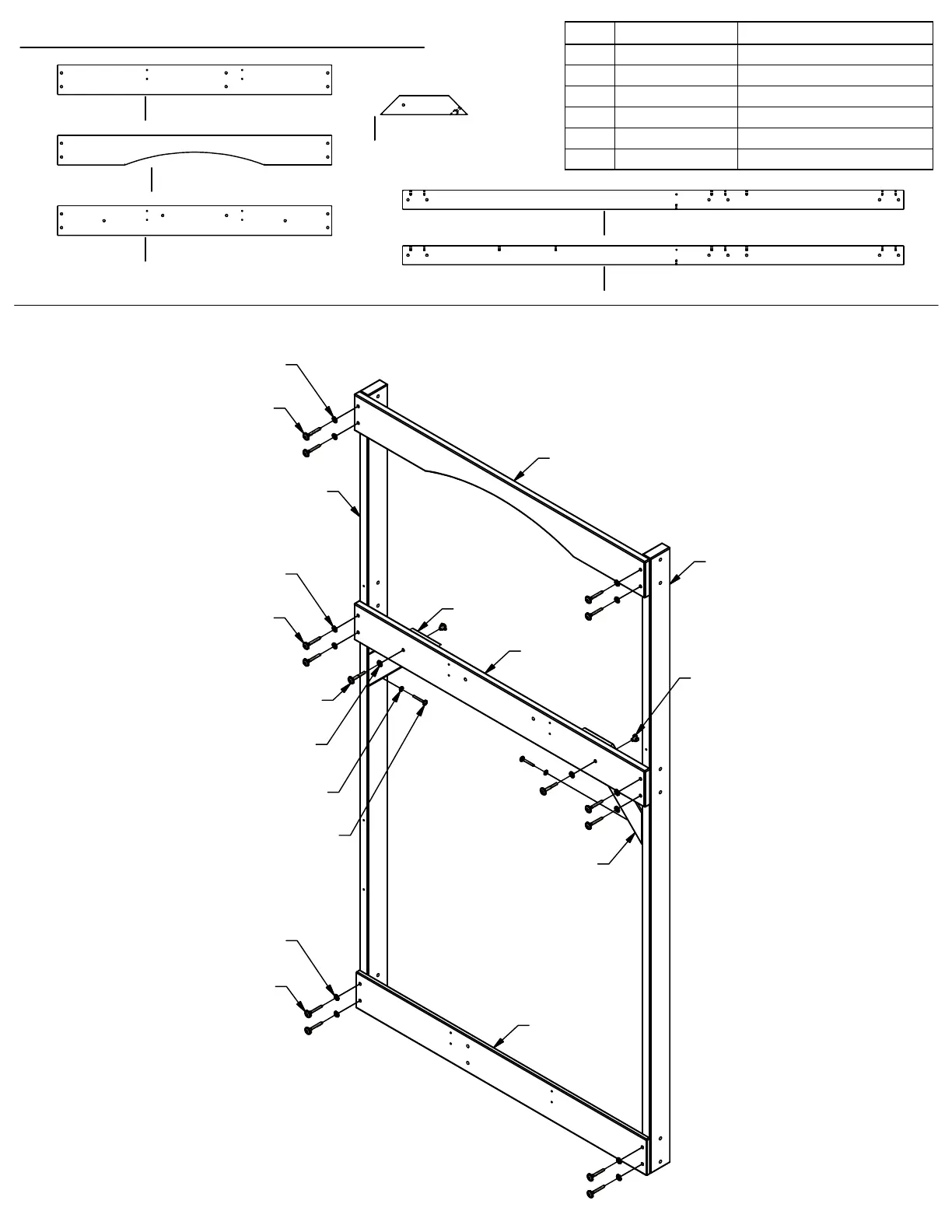

Backyard Discovery HILLCREST - Fort Assembly: Lower Structure; Step 1: Base Frame and Tower Leg Connections

LEFT REAR TOWER LEG - W4L16006
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E07
(x1)
LEFT FRONT TOWER LEG - W4L16001
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E03
(x1)
FLOOR RAIL - W4L16017
5/8"x5 1/4"x49" (16x134x1244)
G04
(x1)
WALL RAIL - W4L16022
1"x5 1/4"x49" (24x134x1244)
G08
(x1)
FLOOR RAIL - W4L16036
1"x5 1/4"x49" (24x134x1244)
G09
(x1)
DECK BRACE - W4L16002
1 3/8"x3 3/8"x15 1/2" (36x86x394)
E04
(x2)
STEP 1 - FORT ASSEMBLY
028 (x4)
LAG SCREW - 2 1/2"
030 (x4)
WASHER - 8x19
QTY
PART NUMBER
DESCRIPTION
2
H100013
BOLT WH 5/16x2 1/4
12 H100028 LAG SCREW WH 5/16x2 1/2
14
H100030
WASHER LOCK EXT 8x19
2 H100074 T-NUT 5/16
2 H100138 WASHER LOCK EXT 6x15
2 H100146 LAG SCREW WH 1/4x2
028 (x4)
LAG SCREW - 2 1/2"
030 (x4)
WASHER - 8x19
028 (x4)
LAG SCREW - 2 1/2"
030 (x4)
WASHER - 8x19
074 (x2)
T-NUT - 5/16"
030 (x2)
WASHER - 8x19
013 (x2)
BOLT - 2 1/4"
138 (x2)
WASHER - 6x15
146 (x2)
LAG SCREW - 2"
G08 (x1)
G09 (x1)
E03 (x1)
E07 (x1)
G04 (x1)
E04 (x1)
E04 (x1)
TIP:
INSTALL T-NUTS IN WOOD FIRST
