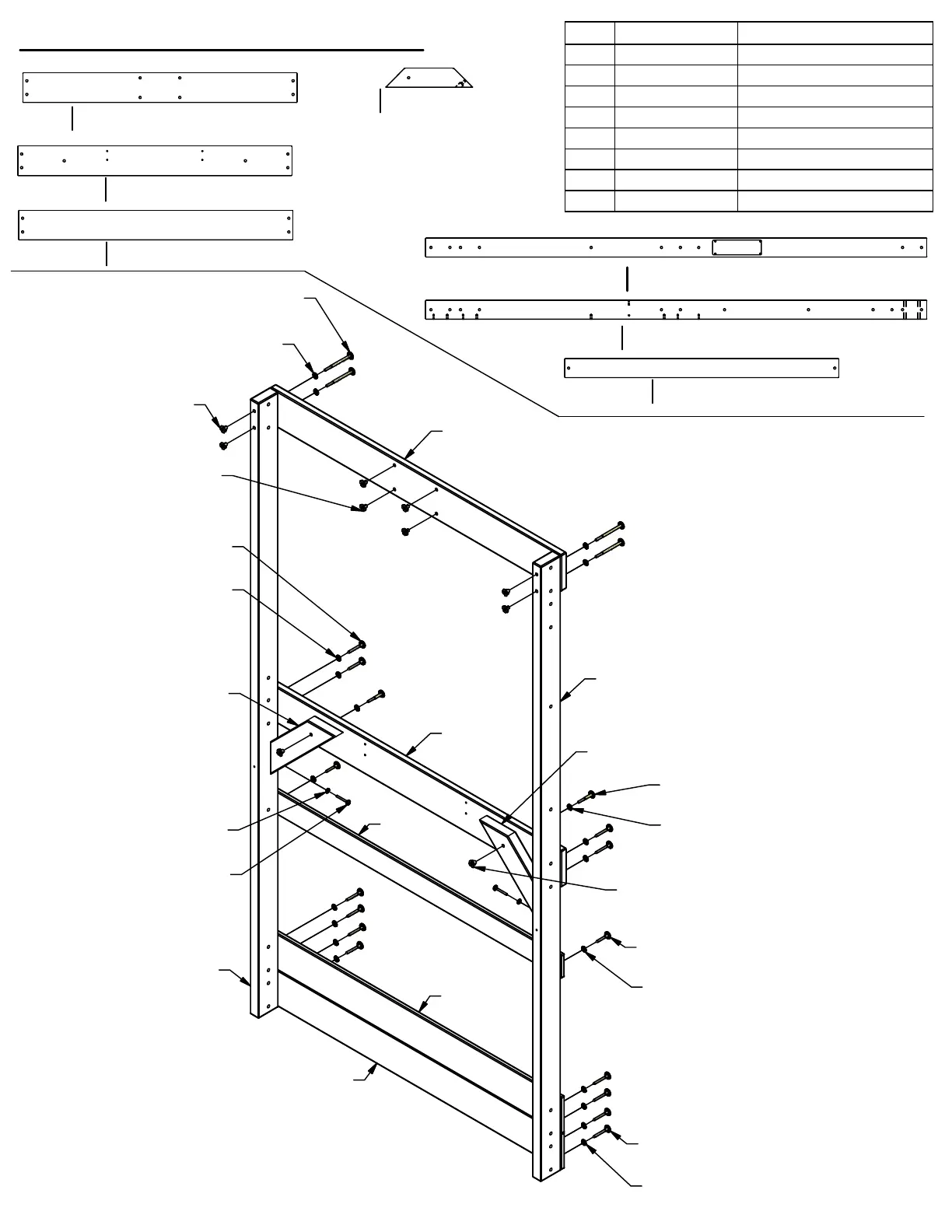

STEP 3 - FORT ASSEMBLY
RIGHT FRONT TOWER LEG - W4L15999
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
E01
(x1)
WALL RAIL - W4L16066
5/8"x3 3/8"x49" (16x86x1244)
M05
(x1)
WALL RAIL/SWING MOUNT - W4L16018
1"x5 1/4"x49" (24x134x1244)
G05
(x1)
FLOOR RAIL - W4L16020
1"x5 1/4"x49" (24x134x1244)
G06
(x1)
BASE/SAND BOX BOARD - W4L16035
5/8"x5 1/4"x49" (16x134x1244)
K02
(x2)
DECK BRACE - W4L16002
1 3/8"x3 3/8"x15 1/2" (36x86x394)
E04
(x2)
E05
(x1)
RIGHT REAR TOWER LEG - W2A03283
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
QTY
PART NUMBER
DESCRIPTION
2
H100013
BOLT WH 5/16x2 1/4
2 H100027 LAG SCREW WH 5/16x2
12
H100028
LAG SCREW WH 5/16x2 1/2
20 H100030 WASHER LOCK EXT 8x19
10 H100074 T-NUT 5/16
2 H100138 WASHER LOCK EXT 6x15
2 H100146 LAG SCREW WH 1/4x2
4 H100166 BOLT WH 5/16x4 1/4
G05 (x1)
K02 (x1)
K02 (x1)
M05 (x1)
G06 (x1)
E01 (x1)
E05 (x1)
E04 (x1)
E04 (x1)
166 (x4)
BOLT - 4-1/4"
030 (x4)
WASHER - 8x19
074 (x4)
T-NUT - 5/16"
074 (x4)
T-NUT - 5/16"
013 (x2)
BOLT - 2 1/4"
030 (x2)
WASHER - 8x19
028 (x4)
LAG SCREW - 2 1/2"
030 (x4)
WASHER - 8x19
028 (x8)
LAG SCREW - 2 1/2"
030 (x8)
WASHER - 8x19
027 (x2)
LAG SCREW - 2"
030 (x2)
WASHER - 8x19
138 (x2)
WASHER - 6x15
146 (x2)
LAG SCREW - 2"
074 (x2)
T-NUT - 5/16"
TIP:
INSTALL T-NUTS IN WOOD FIRST
