Backyard Discovery HILLCREST - Fort Assembly: Mid-Level Construction; Step 5: Installing Mid-Level Floors and Rails

QTY
PART NUMBER
DESCRIPTION
4
H100013
BOLT WH 5/16x2 1/4
12 H100017 BOLT WH 5/16x3 1/4
16 H100030
WASHER LOCK EXT 8x19
16 H100074 T-NUT 5/16

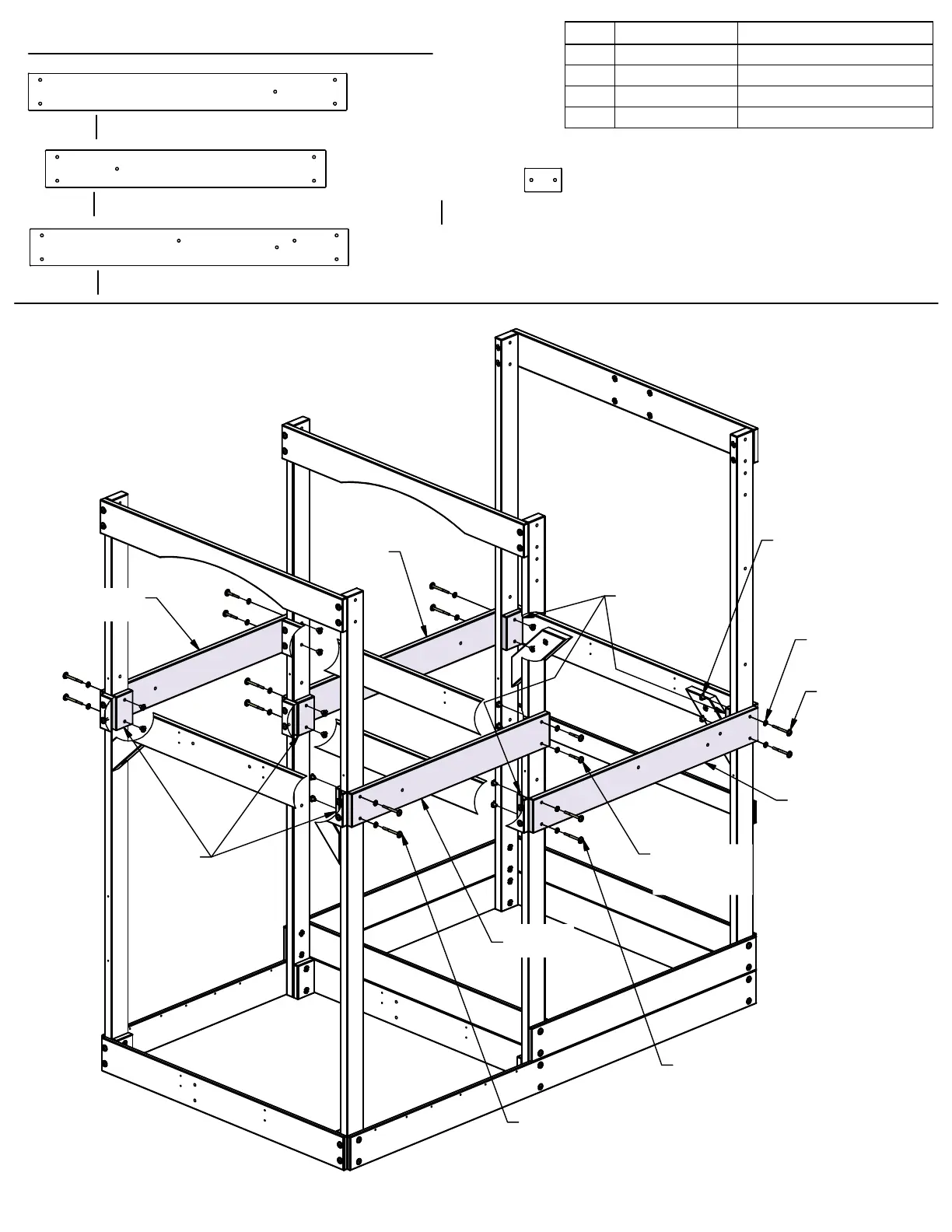

STEP 5 - FORT ASSEMBLY
FLOOR RAIL - W4L16010
1"x5 1/4"x45 1/2" (24x134x1156)
G10
(x1)
FLOOR RAIL - W4L16014
1"x5 1/4"x45 1/2" (24x134x1156)
G15
(x1)
BOTTOM FLOOR BOARD SUPPORT - W4L16024
1"x3 3/8"x5 1/4" (24x86x134)
H05
(x6)
FLOOR RAIL - W4L16012
1"x5 1/4"x40 1/8" (24x134x1018)
G12
(x2)
017 (x4)
BOLT - 3 1/4"
017 (x4)
BOLT - 3 1/4"
013 (x4)
BOLT - 2 1/4"
017 (x4)
BOLT - 3 1/4"
TIP:
INSTALL T-NUTS IN WOOD FIRST
030 (x16)
WASHER - 8x19
074 (x16)
T-NUT - 5/16"
G12 (x1)
G10 (x1)
G15 (x1)
G12 (x1)
H05 (x3)
H05 (x3)
34
