Backyard Discovery HILLCREST - Page 50

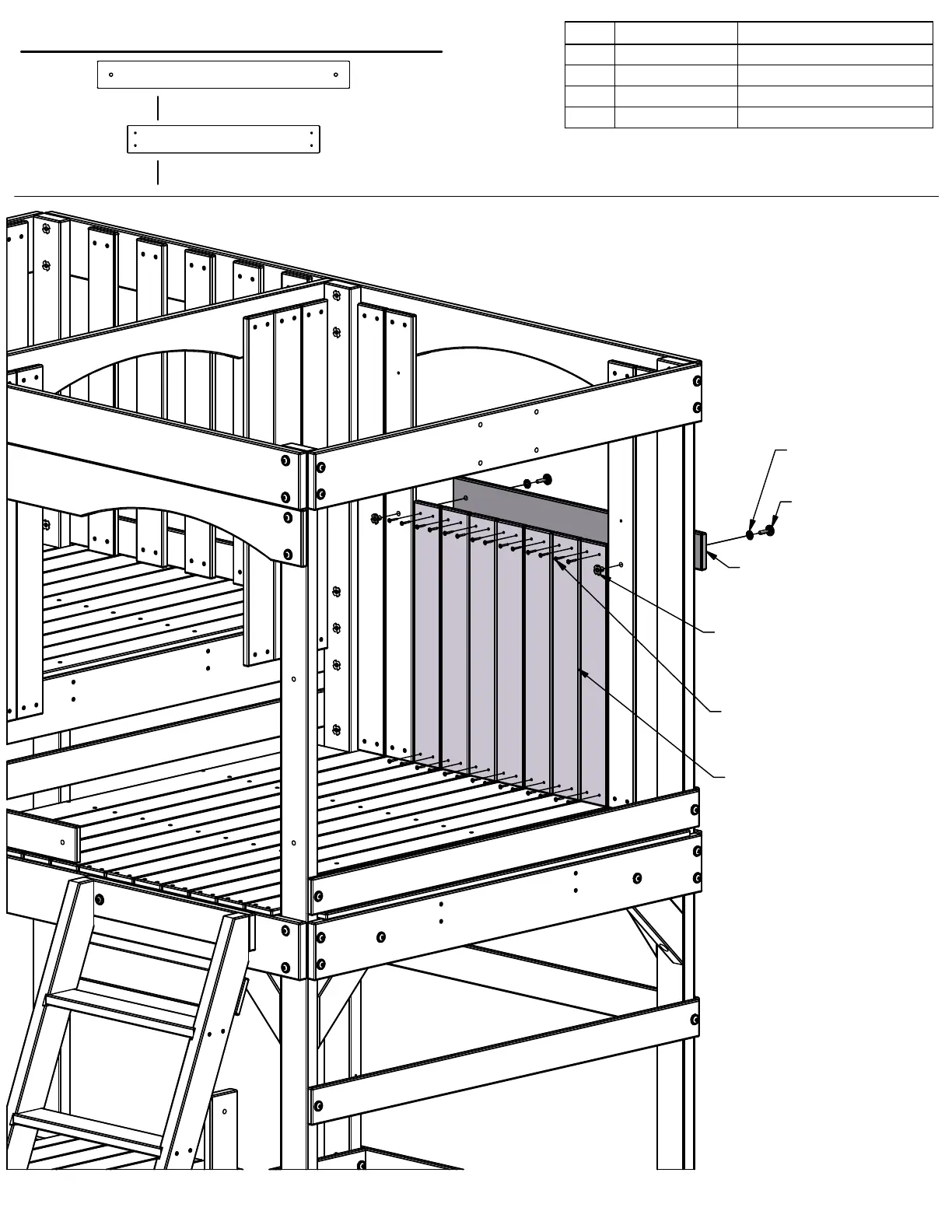

STEP 21 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
2
H100009
BOLT WH 5/16x1 1/4
2 H100030 WASHER LOCK EXT 8x19
2
H100074
T-NUT 5/16
28 H100088 SCREW PFH 8x1-1/8"
WINDOW TRIM - W4L16048
5/8"x3 3/8"x31 1/2" (16x86x800)
M12
(x1)
WALL BOARD - W4L16049
5/8"x3 3/8"x24" (16x86x610)
M13
(x7)
030 (x2)
WASHER - 8x19
009 (x2)
BOLT - 1 1/4"
074 (x2)
T-NUT - 5/16"
088 (x28)
SCREW - 1 1/8"
M13 (x7)
M12 (x1)
EVENLY SPACED
INSTA
LL M12 FIRST
50
