NOTE:
TAKE NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND. PLACE
SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/2" FROM THE EDGE. USE M70 BOARD AS A
TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. USE A 5/16" DRILL BIT.
TOP
BOTTOM
TIP:
PRE-BE
NDING THE ENDS WILL EASE ASSEMBLY. PLACING THE
SLIDE BED OUT IN THE SUN MAKES IT EASIER TO BEND.
115
(x3)
BOLT - 1/2"
074
(x3)
T-NUT - 5/16"
1/2 in [13 mm]
SLIDE BED 10' LIGHT GREEN
(x1)
A100035
SLIDE SUPPORT BOARD - W100935
5/8"x3 3/8"x19 7/8" (16x86x505)
M70
(x1)
M70
(x1)
SLIDE BRACE
035
(x1)
SLIDE BED 10' LIGHT GREEN

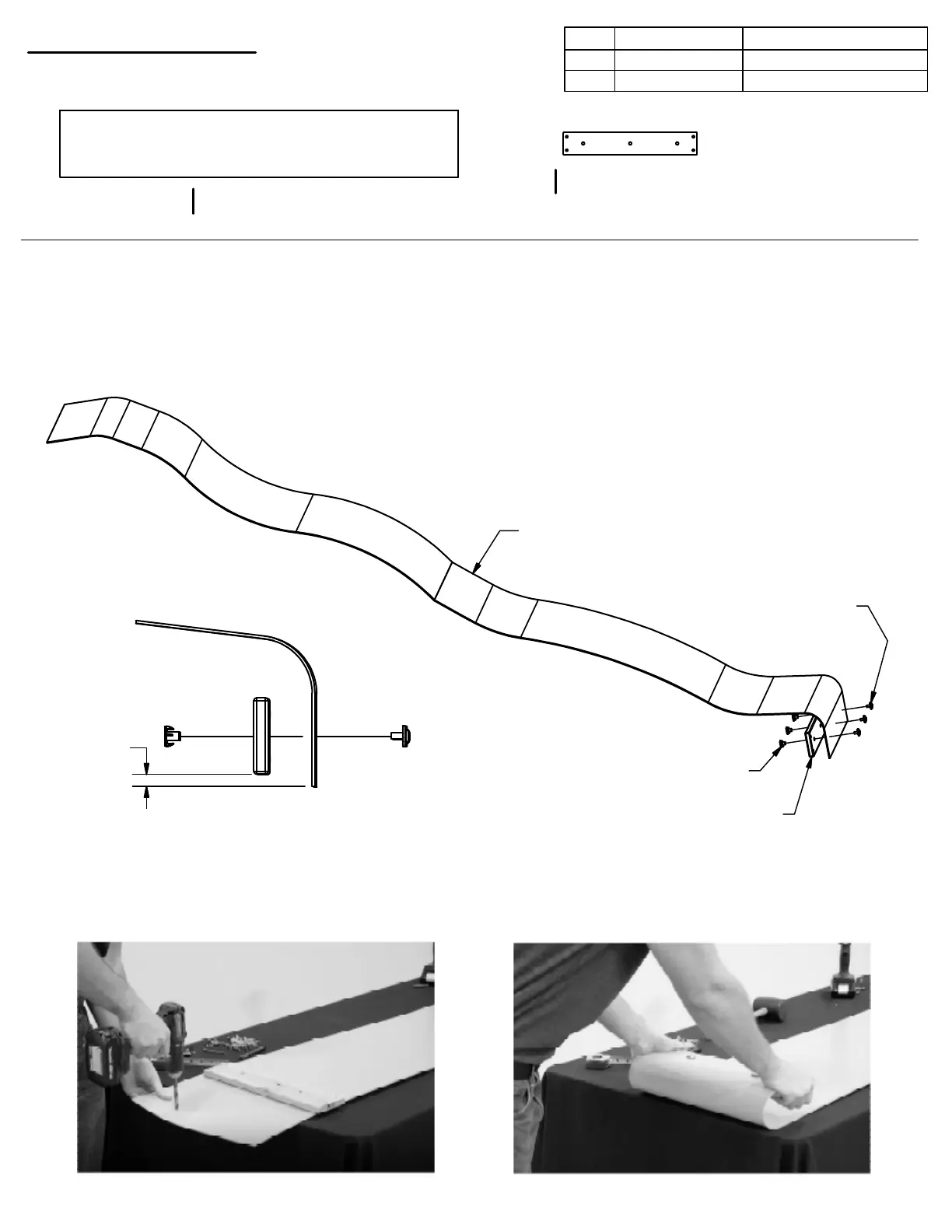

STEP 1 - SLIDE
QTY
PART NUMBER DESCRIPTION
3 H100074 T-NUT 5/16
3 H100115
BOLT WH 5/16x1/2
To Next Page
