NOTE:

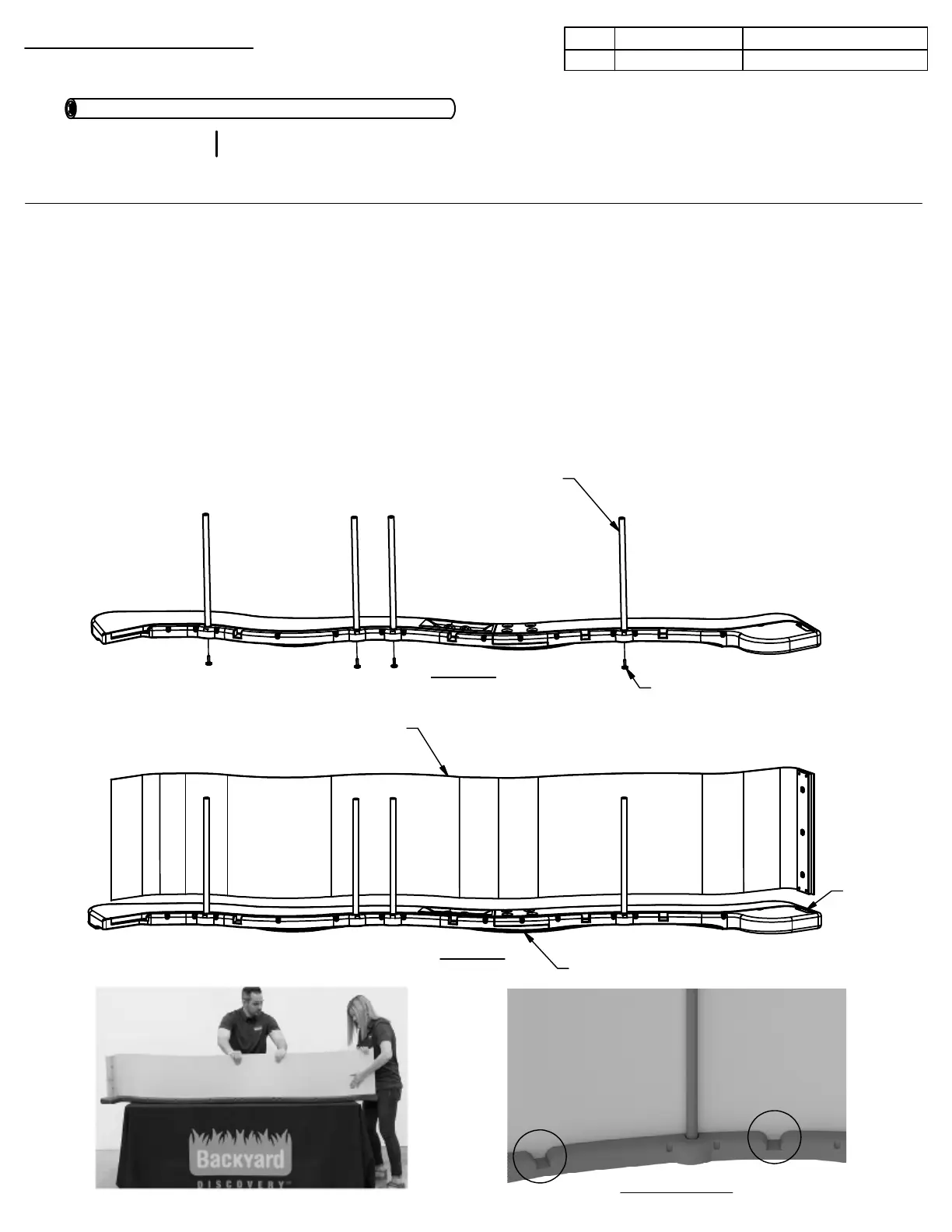

INSERT THE (4) SLIDE SUPPORT TUBES INTO THEIR RESPECTIVE PILOT LOCATIONS (FIGURE 1).
PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM
OF THE SLIDE RAIL (FIGURE 2). HAVE A HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE
AND INSERT THE BED INTO THE SLIDE CAVITY. MAKE SURE SLIDE BED IS INSERTED WITHIN 1/8" (3mm) OF
GROOVE BOTTOM.
BOTTOM
START HERE
FIGURE 1
SLIDE BED
SLIDE RAILS
FIGURE 2
TIP:
A HELPER IS RECOMMENDED FOR THESE
FOLLOWING STEPS.
SLIDE TUBE SUPPORT
(x4)
A6P00487
487
(x4)
SLIDE TUBE SUPPORT
VIEWING WINDOWS
009
(x4)
BOLT - 1 1/4"
QTY
PART NUMBER DESCRIPTION
4 H100009 BOLT WH 5/16x1 1/4
STEP 3 - SLIDE
