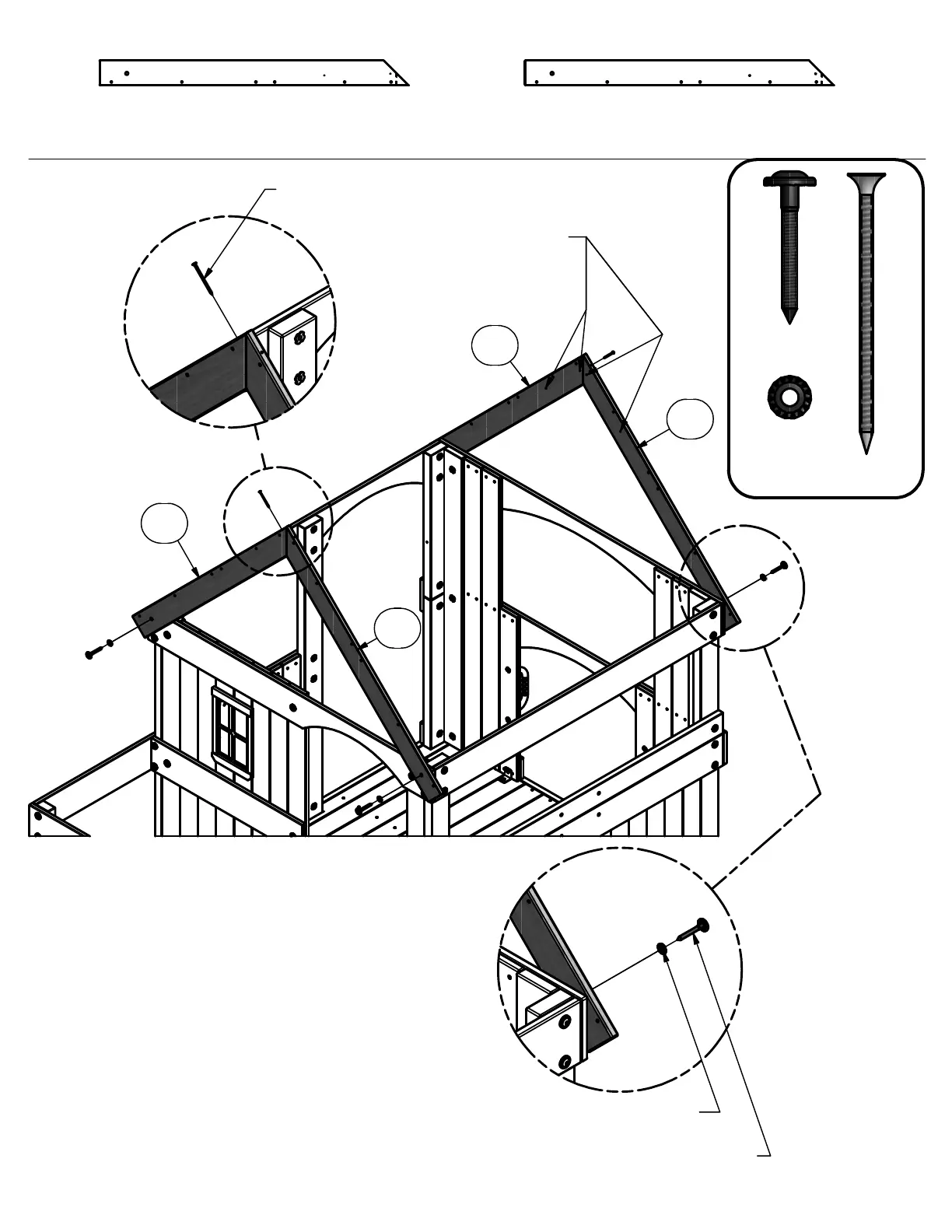

STEP 81
FRONT
SCREW PFH 8x2 1/2
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
(4 PLCS)
M31
M32
M32
M31
LAG SCREW
WH 5/16x2-1/2
BLK
(4)
WASHER
LOCK EXT
8x19 BLK
(4)
SCREW PFH
8x2 1/2
(2)
M31 - GABLE BOARD - W4L06538
5/8"x3 3/8"x41 3/8" (16x86x1052)

M32 - GABLE BOARD - W4L06539
5/8"x3 3/8"x41 3/8" (16x86x1052)

NOTE PILOT HOLES
FOR SUNBURST
INSTALLATION TO
THE INSIDE OF FORT.
