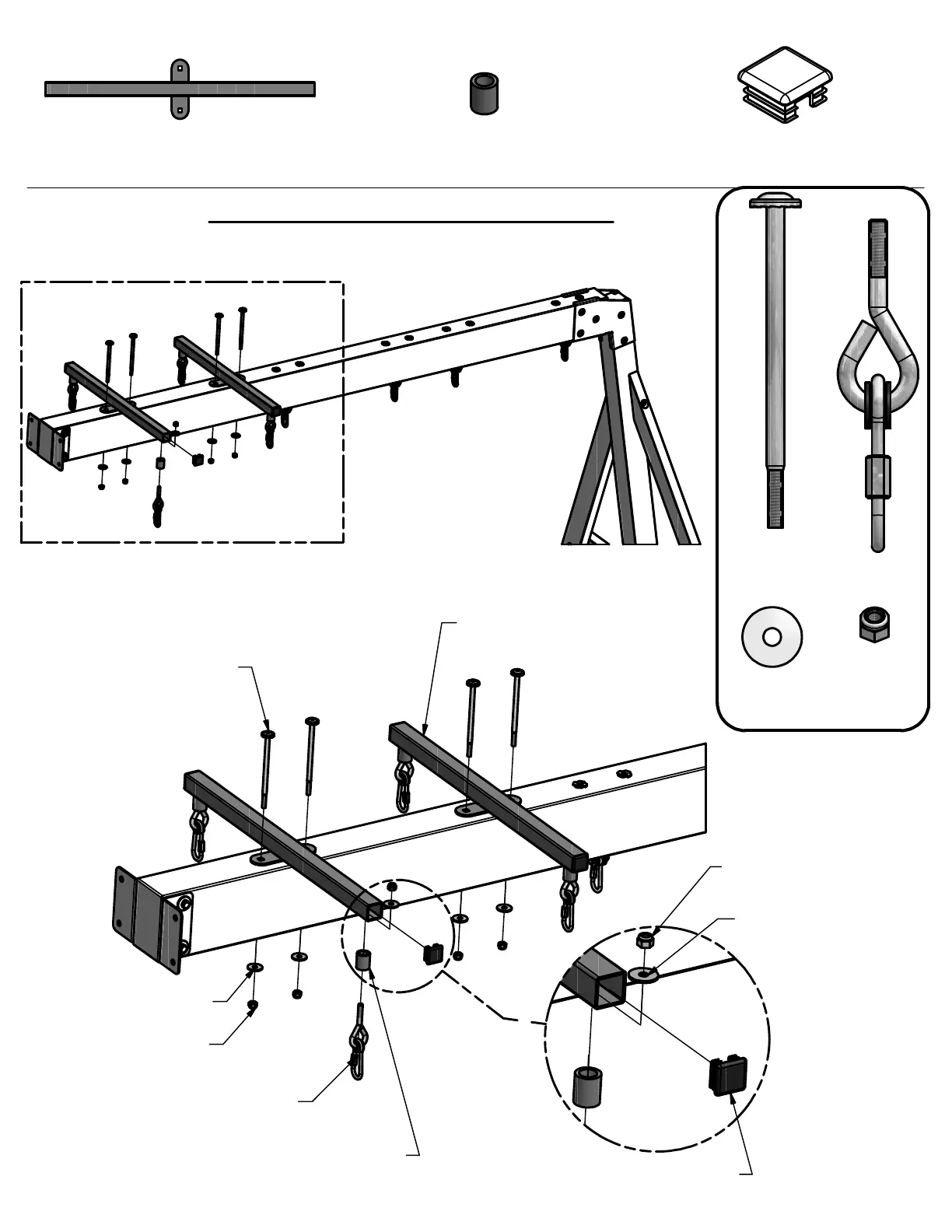

STEP 5
5 FT SWING BEAM ASSEMBLY
BOLT WH 5/16x5 3/4
(4 PLCS)
WASHER FLAT 8x27
(4 PLCS)
NUT LOCK 5/16
(4 PLCS)
6" SWING HANGER QUICK LINK
(4 PLCS)
TUBING CAP GLIDER SUPPORT
(4 PLCS)
WASHER FLAT 8x27
(4 PLCS)
NUT LOCK 5/16
(4 PLCS)
GLIDER SUPPORT BYD GREEN
(2 PLCS)
GLIDER BUSHING BYD GREEN
(4 PLCS)
NUT LOCK
5/16
(8)
WASHER
FLAT 8x27
(8)
BOLT WH
5/16x5 3/4
(4)
6" SWING
HANGER
QUICK LINK
(4)
EW - GLIDER SUPPORT BYD GREEN - A100065

EX - GLIDER BUSHING BYD GREEN - A100066

EY - TUBING CAP GLIDER SUPPORT - A100067

43
