Backyard Discovery MALIBU - Page 89

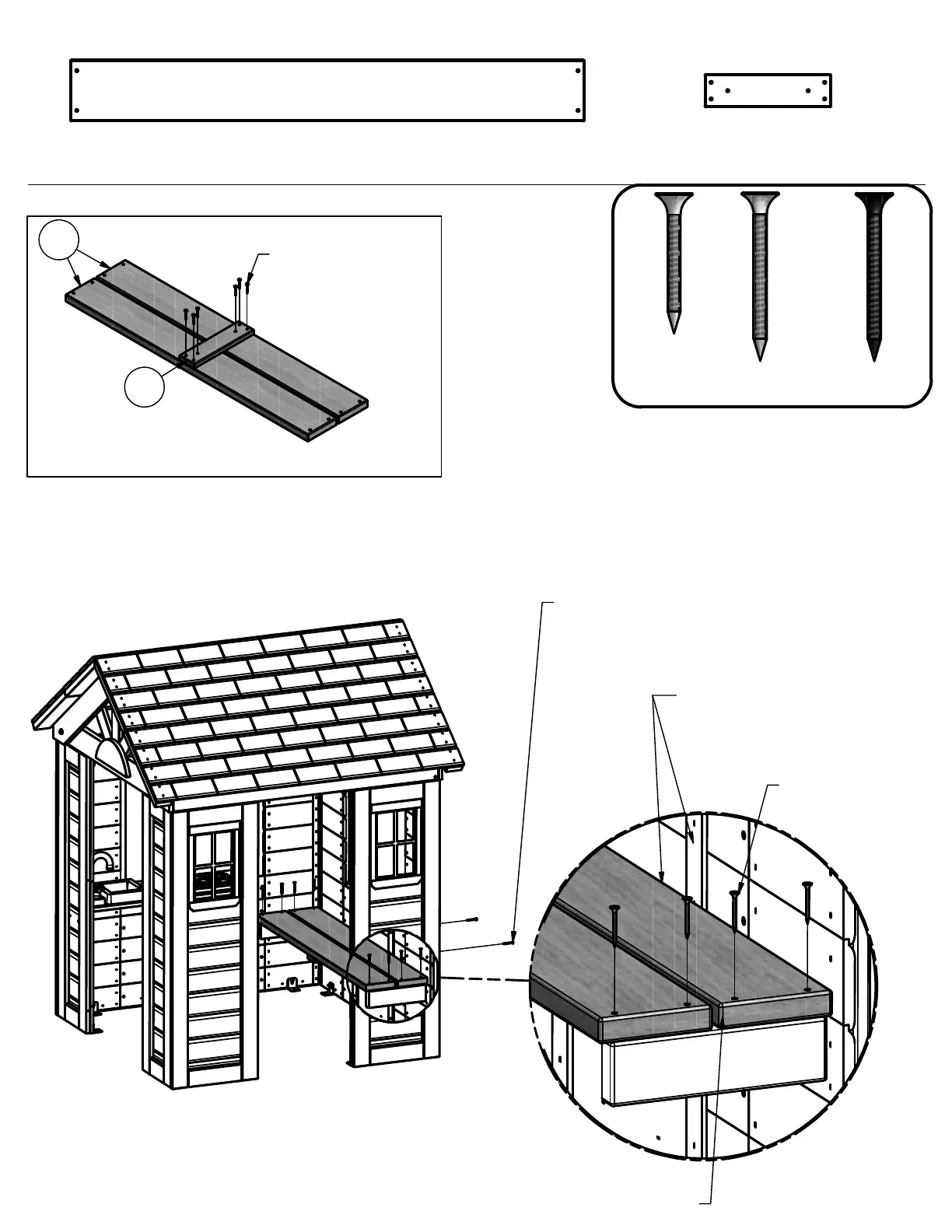

STEP 41
FRONT
BACK
RIGHT
SCREW PFH 8x1 1/4
(6 PLCS)
L8
N4
ASSEMBLE BENCH SUB-ASSEMBLY FIRST.
SCREW PFH 8x1 1/2
(8 PLCS)
MATE THE REAR BENCH BOARD
EDGE TO THE SURFACE OF THE
WALL CLEAT, AS SHOWN.
BENCH SUB-ASSEMBLY
SCREW PFH
8x1 1/2
(8)
SCREW PFH
8x1 1/4
(6)
L8 - SEAT BOARD - W4L06418
1"x4 3/8"x36 3/4" (24x112x934)

N4 - SEAT CLEAT - W4L06419
5/8"x2 3/8"x9" (16x60x230)

SCREW PFH 8x1-1/2 BLK
(2 PLCS)
SCREW PFH
8x1-1/2 BLK
(2)
89
