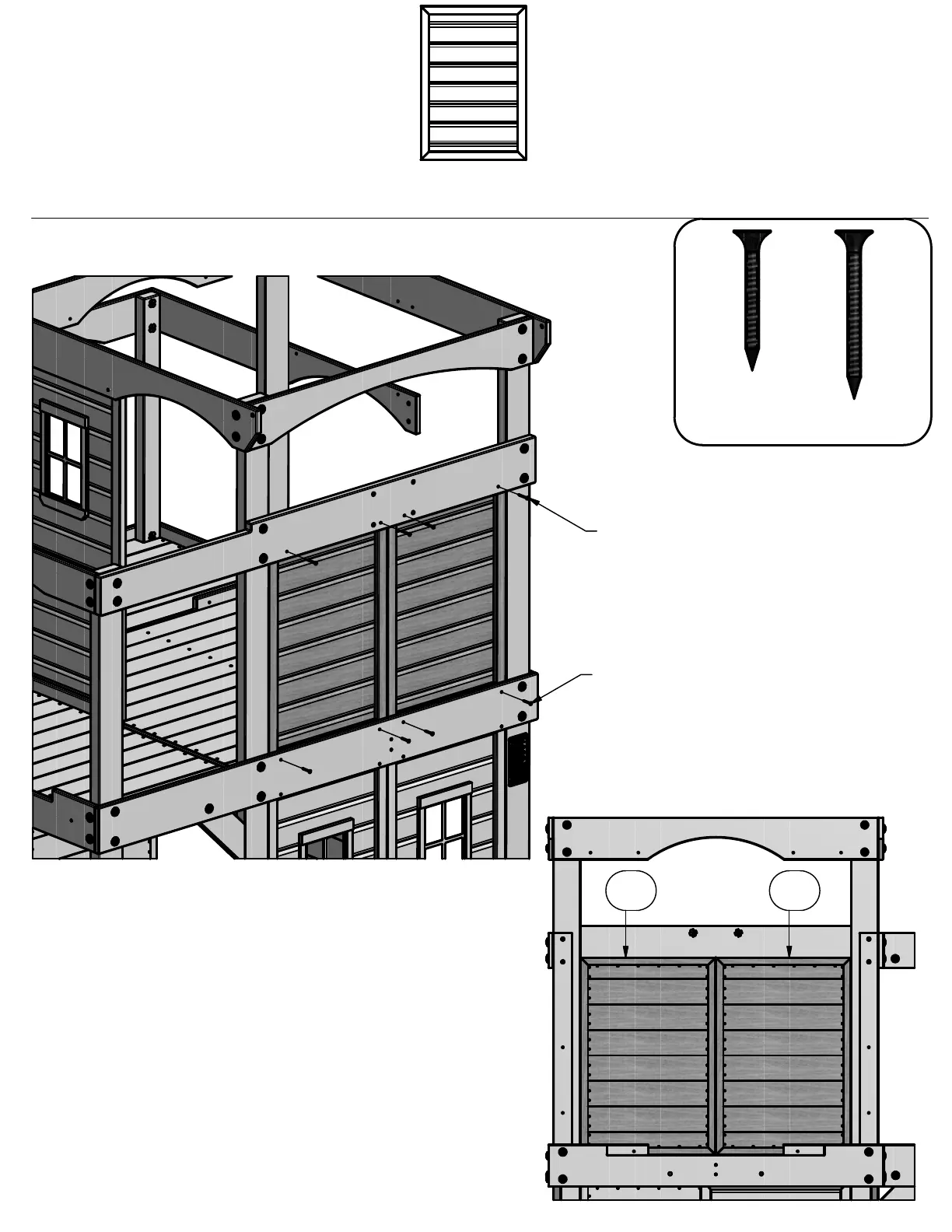

STEP 37
SCREW PFH
8x1-1/2 BLK
(4)
SCREW PFH 8x1-1/2 BLK
(4 PLCS)
SCREW PFH 8x1 1/4 BLK
(4 PLCS)
WP3WP3
SCREW PFH
8x1 1/4 BLK
(4)
(2)
WP3 - TOP RIGHT FRONT WALL PANEL - W2A02084
1"x16 7/8"x24 5/8" (24x430x627)
