Backyard Discovery Shenandoah 65413 - Page 38

10 FOOT SLIDE ASSEMBLY
PHASE 4
STEP 4

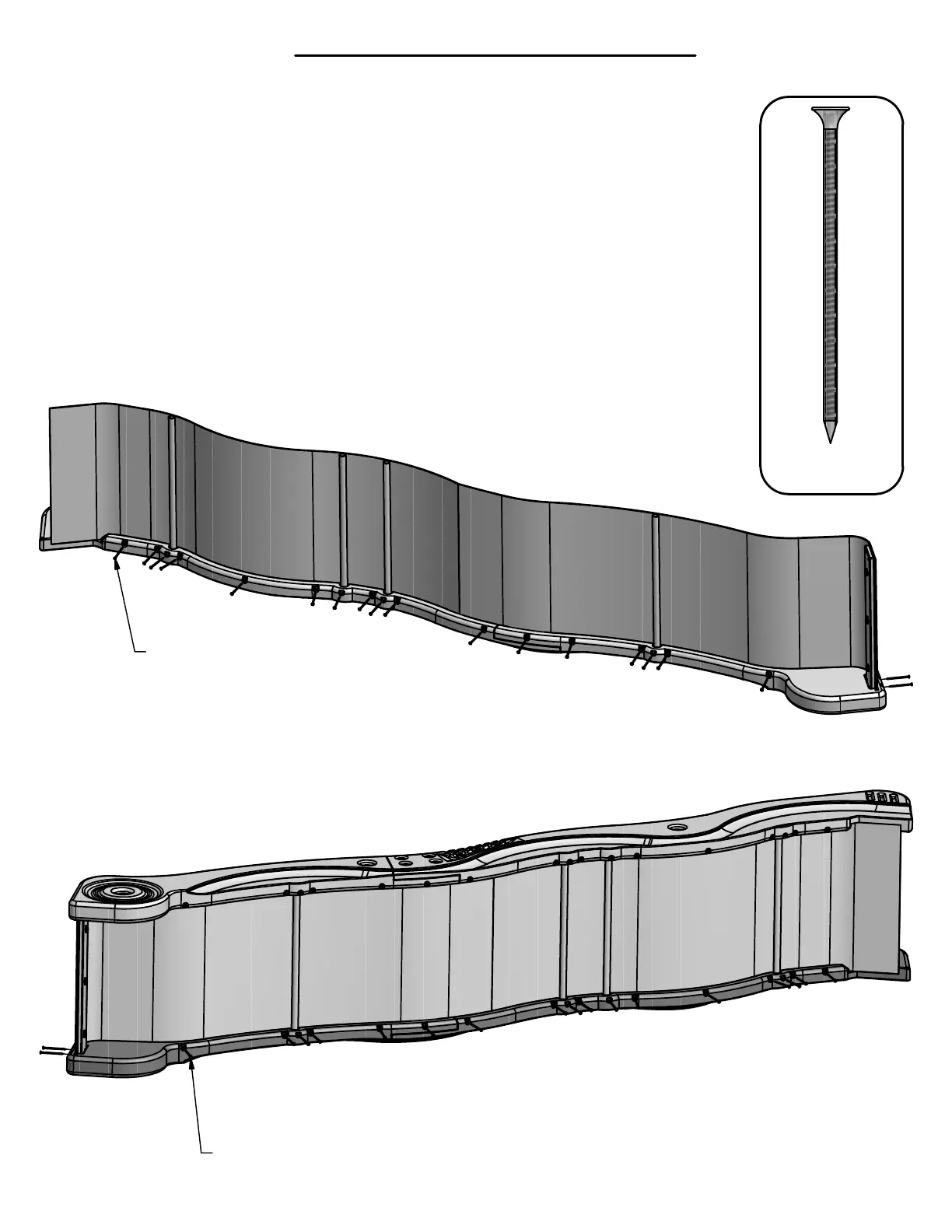

Ɣ ONCE THE SLIDE BED, SUPPORT TUBES, AND SUPPORT BOARD ARE COMPLETELY IN THE CAVITY AND
SUPPORT POCKET, SECURE USING 3" SCREWS AT EACH OF THE PILOT HOLE LOCATIONS AS SHOWN.
Ɣ REPEAT PROCESS FOR OPPOSITE SLIDE RAIL.
SCREW PFH
8x3
(38)
SCREW PFH 8x3
3/&6
SCREW PFH 8x3
3/&6
