Backyard Discovery Shenandoah 65413 - Page 39

GD - L BRACKET 66x66x127 - A100140

TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326

TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325

SB74 - SWING BEAM EXTENDED - W102419
2"x5 1/4"x89 1/2" (50x134x2274)

7%
7&
*'
6%

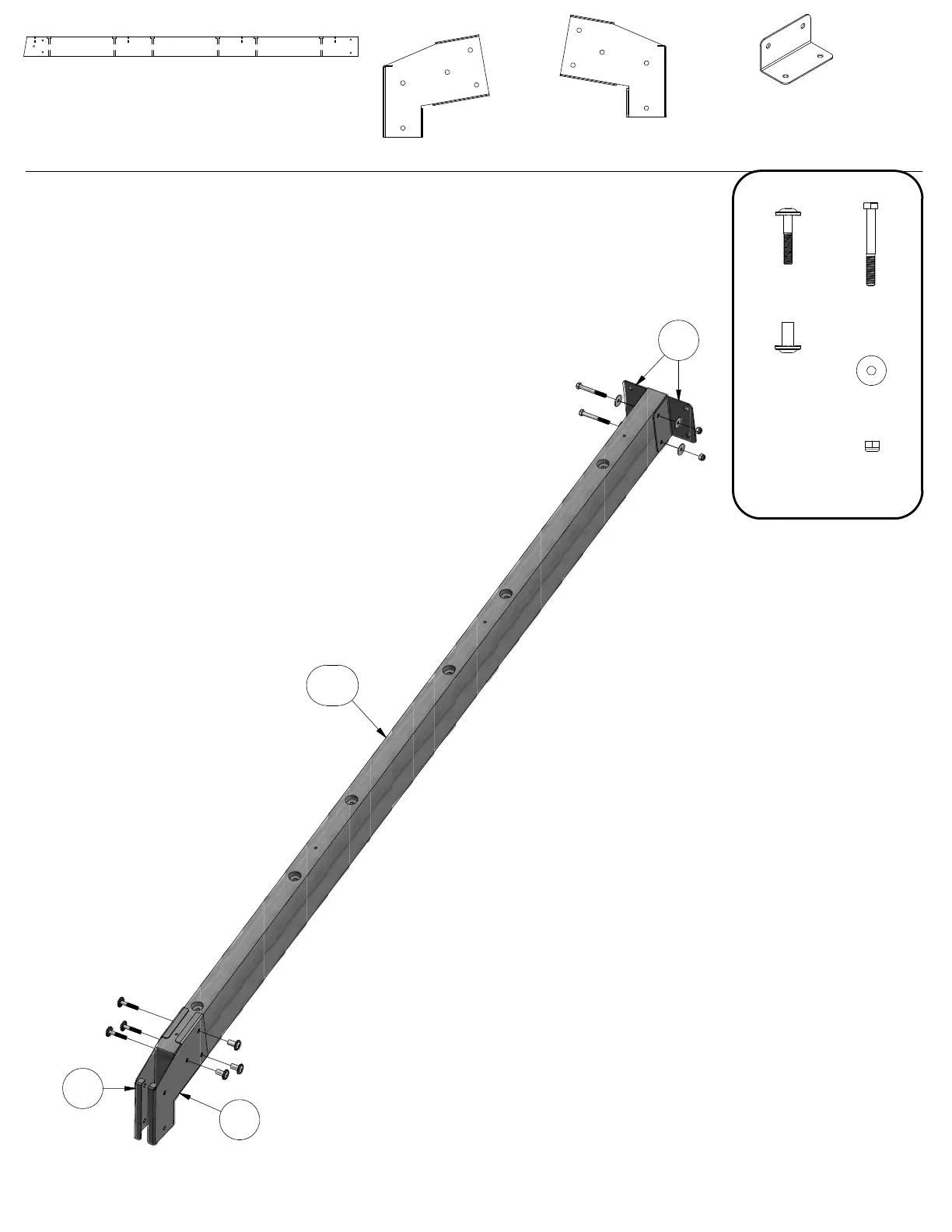

STEP 1
ATTACH (2) GD BRACKETS TO SB74 SWING BEAM
USING (2) 2-3/4" BOLTS, FLAT WASHERS AND 5/16"
LOCK NUT, AS SHOWN.
ATTACH TB AND TC SWING BEAM EXTENSION
BRACKETS TO SB74 SWING BEAM USING (3) 1-3/4"
BOLTS AND 7/8" BARREL NUTS, AS SHOWN.
4 FT GREEN EXTENDED
SWING BEAM WITH GLIDER
BOLT WH
5/16x1-3/4
(3)
BOLT HEX
5/16x2-3/4
(2)
NUT BARREL
WH 5/16x7/8
(3)
WASHER
FLAT 8x27
(4)
NUT LOCK
5/16
(2)
