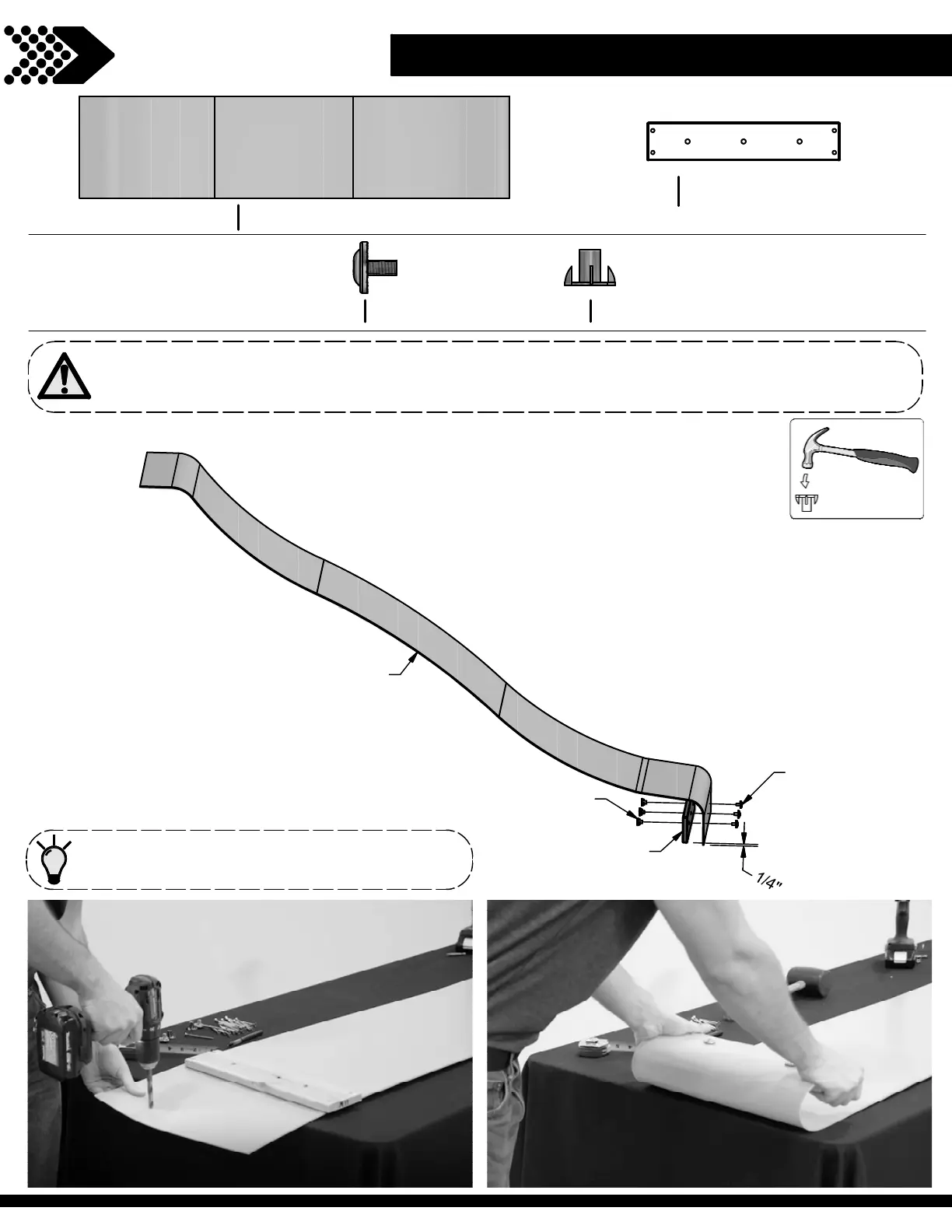

Backyard Discovery TUCSON 65411B - Slide Assembly; Step 1: Slide Bed Attachment

723
BOTTOM
PREBENDING THE ENDS WILL EASE ASSEMBLY.
USE M77 SLIDE BRACE AS A TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. BE SURE
TO PLACE SLIDE BRACE UP 1/4" FROM BOTTOM EDGE OF SLIDE BED BEFORE MARKING HOLE PATTERN.
ǻÝƻʲ
Ǣǻrƻˠ
T-NUT
5/16
(x3)
H100074
BOLT WH
5/16x1/2
(x3)
H100115
ŗŷǻrʲ
SLIDE BED 8' YELLOW
(x1)
A100056
SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
M77
(x1)
ˠˠˤ ʹɮˢʺ
Dŷĵǻ˚ˠˀˡ˃
˟˦ˣ ʹɮˢʺ
ǻ˚ŗȕǻ˚ˤˀˠ˥˃
ō˦˦ ʹɮˠʺ
ǢĵÝ^rDNJNr
˟ˤ˥ ʹɮˠʺ
ǢĵÝ^rDr^˧˂ɳrĵĵŷɟ
SLIDE ASSEMBLY
22
