Backyard Discovery TUCSON 65411B - Page 23

A HELPER IS REQUIRED FOR THIS
PHASE.
MAKE CERTAIN SUPPORTS AND SLIDE
BED ARE FULLY ENGAGED WITHIN
CHANNEL OF SLIDE RAILS.
ǻÝƻʲ
ŗŷǻrʲ
Ǣǻrƻˡ
SLIDE RAIL 8' GREEN RIGHT
(x1)
A100054
SCREW PFH
8x2 1/2"
(x24)
H100090
CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
M78
(x2)
SLIDE RAIL 8' GREEN LEFT
(x1)
A100055

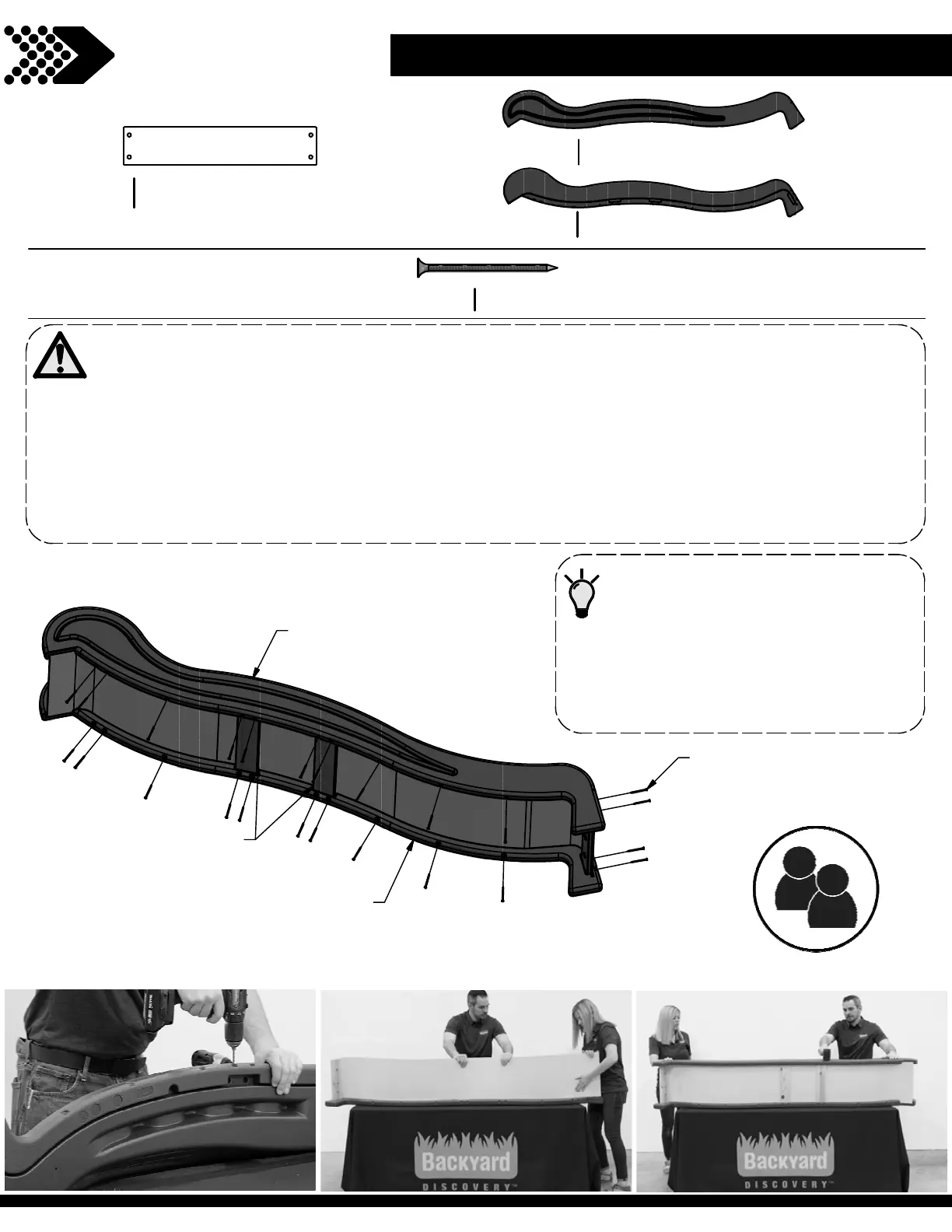

USING A 1/8" DRILL BIT, DRILL PILOT HOLES IN EACH INDENTATION ALONG EACH SIDE RAIL. THERE SHOULD
BE 12 INDENTIONS ON EACH RAIL.
PLACE THE SLIDE RAIL ON FLAT SURFACE. STARTING AT THE BOTTOM, INSERT THE SLIDE BED INTO THE
CHANNEL ON THE INSIDE OF THE RAIL. HOLD THE SLIDE BED IN PLACE WHILE A HELPER BENDS THE SLIDE
BED INO THE CHANNEL. MAKE SURE THE SLIDE BED IS COMPLETELY INSERTED INTO THE CHANNEL.
INSERT THE TWO CENTER SLIDE BRACES INTO THEIR RESPECTIVE LOCATIONS. SECURE THE SLIDE BED
AND CENTER USING THE PROVIDED HARDWARE.
REPEAT THIS PROCESS FOR THE OPPOSITE SLIDE RAIL.
˟ˤˣ ʹɮˠʺ
ǢĵÝ^rNJÝĵ˧˂µNJrrŗNJݵËǻ
ō˦˧ ʹɮˡʺ
NrŗǻrNJǢĵÝ^rDNJNr
˟ˤˤ ʹɮˠʺ
ǢĵÝ^rNJÝĵ˧˂µNJrrŗĵr®ǻ
˟˨˟ ʹɮˡˣʺ
ǢNNJrɟ˚ˡˠˀˡ˃
SLIDE ASSEMBLY
23
