Backyard Discovery TUCSON 65411B - Rock Ladder Assembly; Steps 1-2: Rock Ladder Construction

ROCK LADDER
ASSEMBLY
Ǣǻrƻˠ
ŗŷǻrʲ

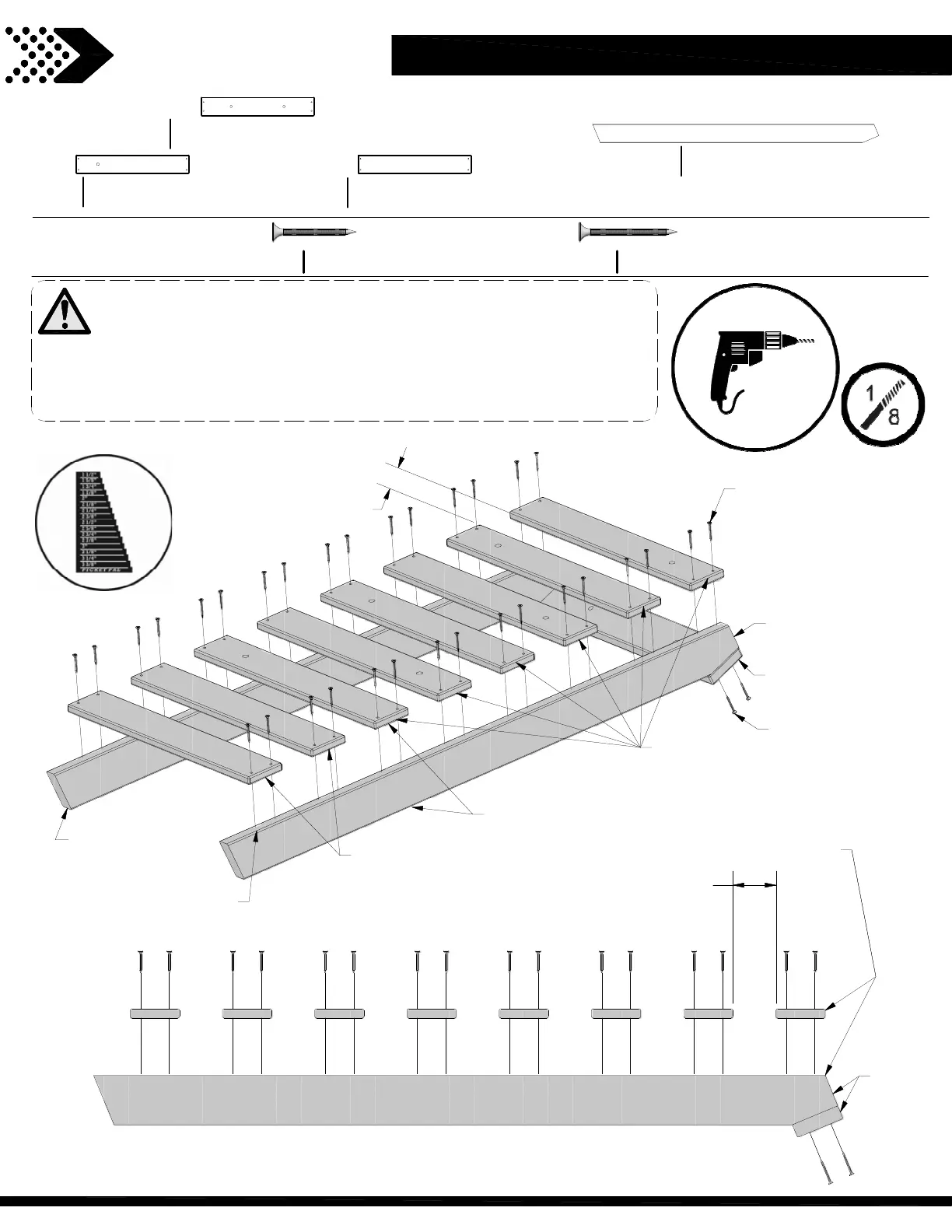

1. Assemble slats to rails as shown.
2. Note orientation of slats, be sure to arrange as shown.
3. See drawing below for slat spacing on rails.
4. Using slats as a guide, pre-drill top edges of rails with a 1/8"
drill bit. Failure to pre-drill may result in board splitting.
PRE-DRILL TOP EDGE OF RAILS
THESE SURFACES FLUSH BOTH SIDES
ALIGN FRONT EDGE OF SLAT WITH TOP OF RAIL
3 in [75 mm]
TYPICAL SLAT SPACING
7 SPACES
ROCK BOARD - W4L14175
5/8"x3 3/8"x20 1/4" (16x86x514)
M71
(6)
ROCK WALL RAIL - W4L14153
1"x3 3/8"x51 1/8" (24x86x1299)
H73
(2)
˟˧˥ ʹɮˢˡʺ
ǢNNJrɟ˚ˠˠˀˡ˃
Ë˦ˢ ʹɮˠʺ
NJŷNħɟĵĵNJÝĵ
Ë˦ˢ ʹɮˠʺ
NJŷNħɟĵĵNJÝĵ
ō˦ˠ ʹɮ˥ʺ
NJŷNħDŷNJ^
ō˦ˡ ʹɮˡʺ
NJŷNħɟĵĵǢĵǻ
ROCK WALL SLAT - W4L14176
5/8"x3 3/8"x20 1/4" (16x86x514)
M72
(2)
3 in [75 mm]
TYP
SCREW PFH
8x1 1/2
(32)
H100086
˟˧˨ ʹɮˣʺ
ǢNNJrɟ˚ˠˢˀˣ˃
Ë˧ˠ ʹɮˠʺ
ǻǻNËōrŗǻDŷNJ^
FLUSH
ATTACHMENT BOARD - W4L14394
1"x3 3/8"x20 1/4" (24x86x514)
H81
(1)
SCREW PFH
8x1 3/4
(4)
H100089
