Backyard Play Systems 4431 - Fort Construction: Frame Bracing

17
FORT

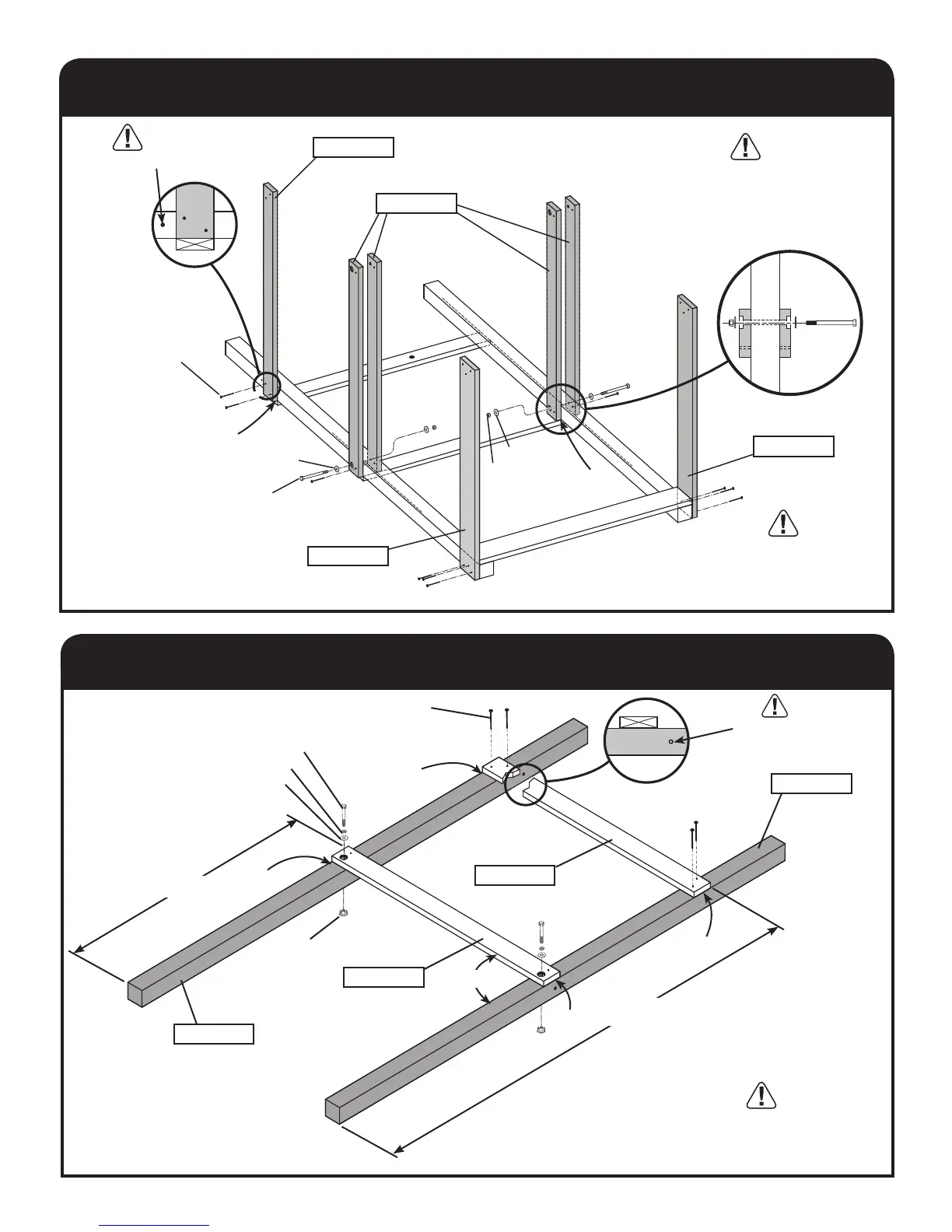

FRAME BRACING
Align braces with
pre-drilled holes.
Flush
Flat Washer
x4
x1
1 x 3-3/8 x 45-1/8"
3/4 x 3-3/8 x 45-1/8"
x10
x2
Ensure all bracing is
square before installing
wood screws.
Flush
2899-CC
2973-CC
2-1/2"
Wood Screw
BOTTOM
x1
2969-CC
3/4 x 5-3/8 x 45-1/8"
x1
3/4 x 5-3/8 x 45-1/8"
2969-CC
FORT
FRAME BRACING
x2
Align braces with pre-drilled holes.
Flush
2-1/2" Wood Screw
Flush
Flush
Flush
3-3/4" Hex Bolt
Lock Washer
Flat Washer
x1
2953-CC
3 x 3 x 95"
x1
3/4 x 3-3/8 x 45-1/8"
2973-CC
x1
1 x 3-3/8 x 45-1/8"
2899-CC
Ensure all bracing is square before
installing wood screws.
90°
T-Nut
x2
x4
5" Hex Bolt
x4
x2
BOTTOM
47-1/4"
Lock Nut
Flat Washer
Note hole location.
Note hole location.
x1
2954-CC
3 x 3 x 95"
79-1/4"
